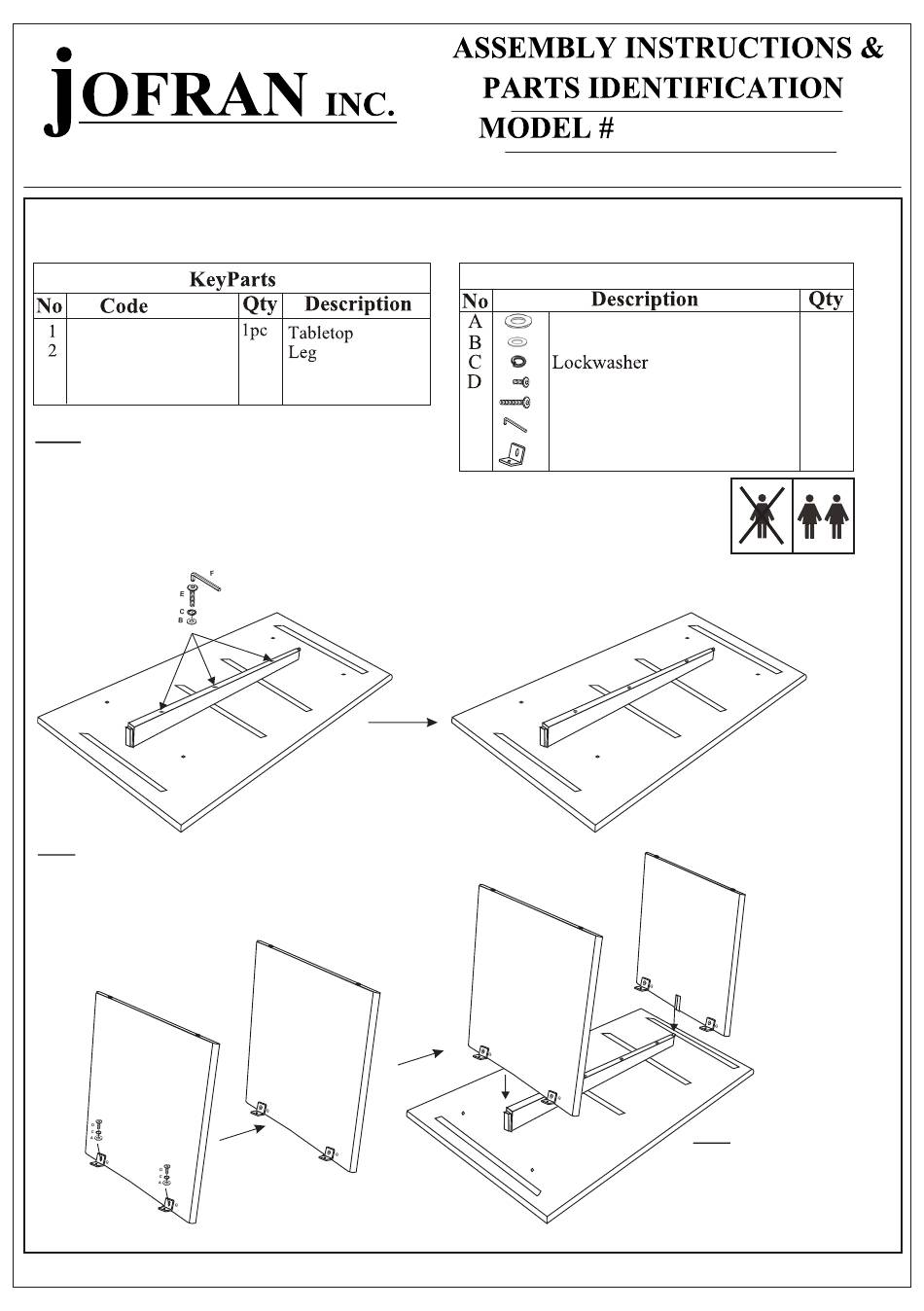

Jofran 2271 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may have come loose inside the carton during shipment
2271-BURKEDTGP24
2271-BURKEDTGP53
3 2271-BURKEDTGP11
4
2271-BURKEP01F
Step 1
Attach the Support Stretcher to the tabletop using a Long
Bolt E, Lock Washer C, and Small Flat Washer B. Fully
tighten all bolts after all three bolts are in place.
Step 2
Attach two Metal Corner Brackets G to the inside and outside of each panel
of the Leg Assembly using a Short Bolt D, Lock Washer C, and Large Flat
washer A. Do not fully tighten at this point.
MADE IN INDIA
Assembly
2pcs
1pcs Support Stretcher
Floor Glide
4pcs
BURKE RECT TABLE - GOLDEN
Hardware kit (2271-BURKEDTGP01)
Flat washer (Large) For Bracket
Flat washer (Small) For Stretcher
Bolt 8x25mm - To attach the Bracket
Bolt 8x75mm - To attach Support Stretcher
E
F
Allen Key
Metal Corner Bracket
G
SETUP REQUIRES 2 PEOPLE
2271-BURKEDTG
Step 3
Carefully place the Leg Assembly into
place by inserting the notched portion of
the inside panel to the receiver on the
Support Stretcher. Keep Leg Assembly
Panels supported.
16 pcs
3 pcs
19 pcs
16 pcs
3 pcs
1 pcs
8 pcs
