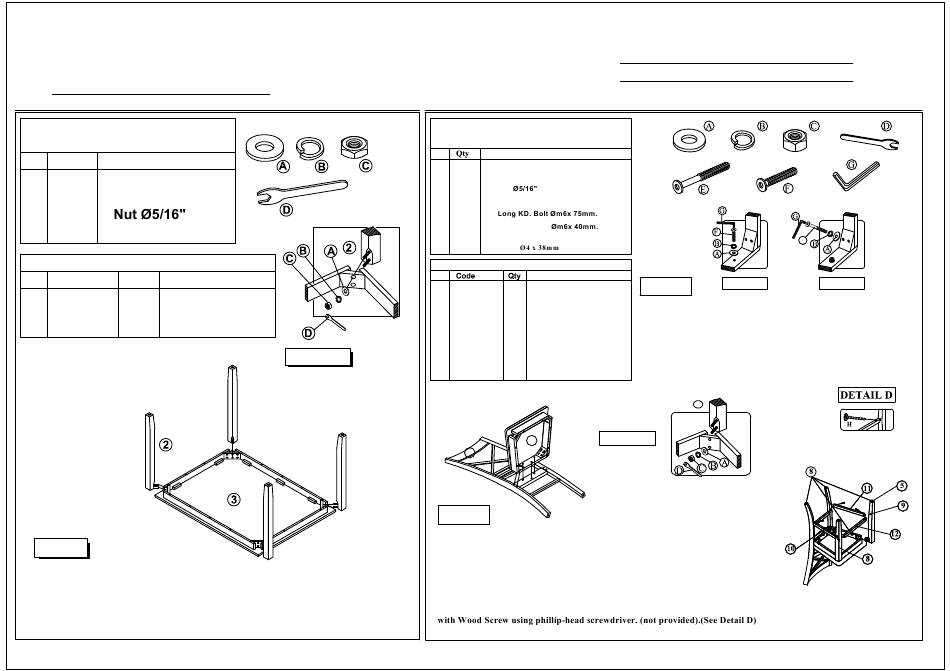

Jofran 1806 Assembly Instructions

j
OFRAN
Table Hardware Kit (1806PO1)
Ltr Qty Description
8 pcs
A Flat Washer
8 pcs
B Lock Washer
8 pcs
C
1 pc
D Key Wrench
Table Parts Key
No Code Qty Description
1806P01FT 4 pcs.
1 Table Floor Glide
2 4 pcs. Table Leg
3 1 pc. Table top
STEP 1
-Carefully lay table top upside down on
a smooth flat surface to prevent scratches.
-Affix a leg to each corner of the table top as shown
in Detail A using a flat washer , lock washer and nut .
-Once all legs are in place, fully tighten the nuts
MADE IN VIET NAM REV 23
INC.
Detail A
ASSEMBLY INSTRUCTIONS &
4 PACK TABLE & CHAIRS & BENCH
Chair Hardware Kit ( 1806 P46)
Description
Ltr
A 22 pcs. Flat Washer
B 22 pcs. Lock Washer
C
8 pcs.
Nut
D 2 pcs. Key Wrench
8 pcs.
E
6 pcs.
F Short KD. Bolt
2 pcs.
G Allen Wrench
Screw
H 12 pcs.
Chair Parts Key
No Description
5
1806P01F 8 pcs. Chair/Bench Floor Glide
2 pcs. Chair Back
6
7 1806-BS395KDP41 2 pcs. Complete Seat
8 2 pcs. Right Facing Front Leg
1806-BS395KDP42
9 2 pcs. Left Facing Front Leg
1806-BS395KDP43
10
1806-BS395KDP44 2 pcs. Right Facing Side Stretcher
11 1806-BS395KDP45 2 pcs. Left Facing Side Stretcher
12 1806-BS395KDP49 2 pcs. Front Stretcher
* Quantities noted are for a total of two chairs.
Detail C
7
6
STEP 2
- Carefully turn Chair upside down and attach each Leg to the front corners of the
Complete Seat. Noting Right and Left Side Leg.
- Place Flat Washer, Lock Washer and Nut on for each bolt, using provided Key
Wrench.
- Do not fully tighten the Nuts at this stage until all the parts are in position (See
Detail C).
- Insert 2 Side Stretchers between the Front Legs and Back Legs(Noting Right and
Left Side Stretcher), and insert the Front Stretcher between the Front Legs; fasten
- Be sure to tighten all screws and nuts prior to using Chair.
PARTS IDENTIFICATION
MODEL # 1806
E
Detail A
STEP 1
- Carefully lay chair back flat on a smooth flat surface to
prevent scratches.
- Affix the complete seat to chair back, as shown in Detall
A, using a flat washer, lock washer and short KD bolt.
- Secure complete seat to chair back corners, as shown in
Detail B, using a flat washer, lock washer and long KD
bolt. - - Tighten screws with provided Allen Wrench.
8
Detail B
PAGE 1/2
