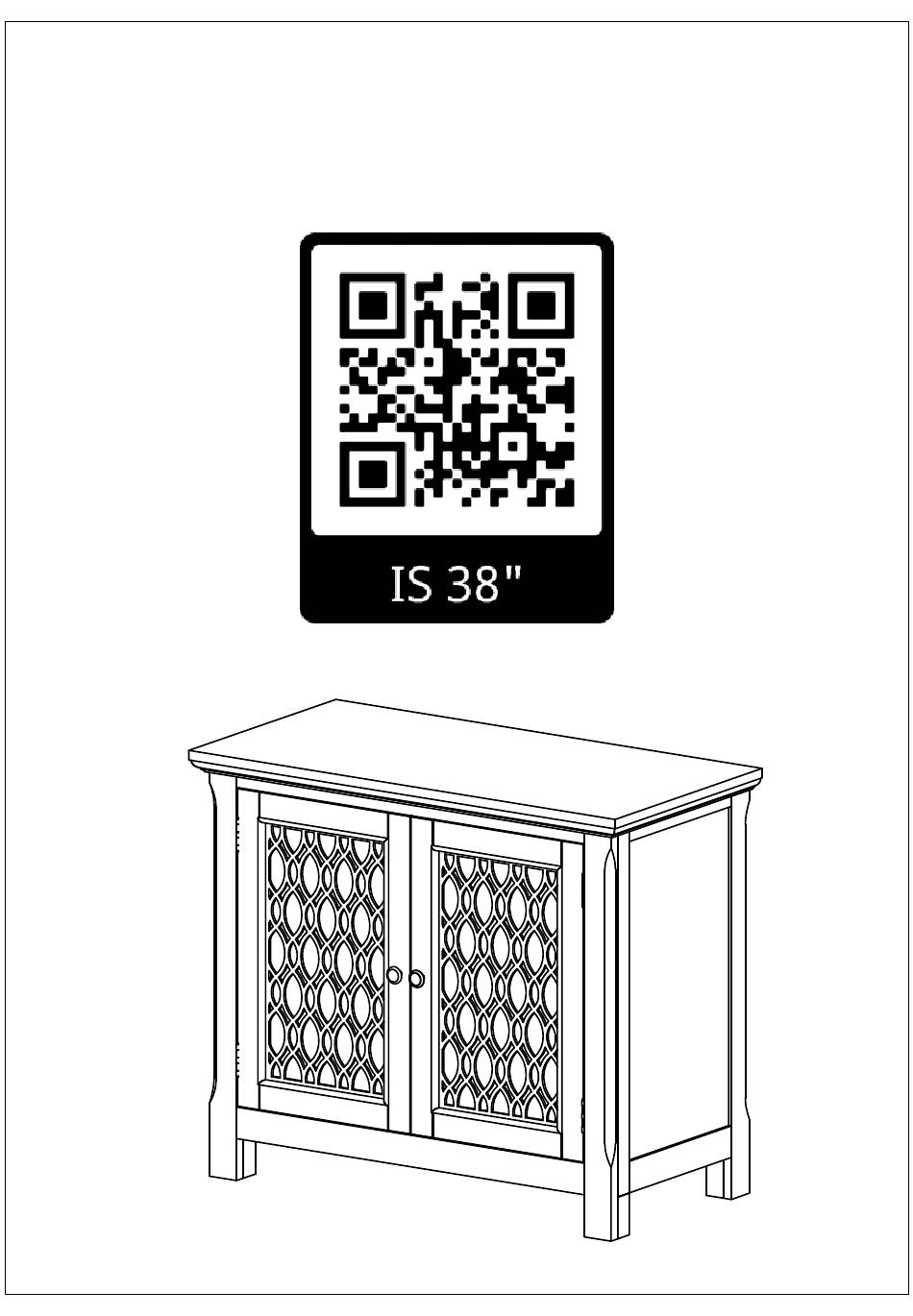

- Page 1 ISABELLA 38" TWO DOORS ACCENT CABINET 2250-38KD / 2251-38KD / 2252-38KD / 2253-38KD QR CODE TO ACCESS INSTRUCTIONAL SETUP VIDEO...
- Page 2 ASSEMBLY INSTRUCTIONS & PARTS IDENTIFICATION OFRAN MODEL # 2252 - 38KD INC. ISABELLA 2 DOORS ACCENT CABINET BLUE FINISH Parts key Code Code Description Description 2252-38KDP54 2252-38KDP07L 1 pc Left Side Facing Door 1 pc 2252-38KDP51B 2252-38KDP07R 1 pc Bottom Shelf Right Side Facing Door 1 pc 2252-38KDP53...
- Page 3 ASSEMBLY INSTRUCTIONS & PARTS IDENTIFICATION OFRAN MODEL # 2252 - 38KD INC. ISABELLA 2 DOORS ACCENT CABINET BLUE FINISH Step:02 DOWEL - Place the bottom shelf in position and lock the wood dowels into the receiving holes in the rear leg. Step:03 - Carefully insert the back panels into place making sure that the lock tabs are in the open...
- Page 4 ASSEMBLY INSTRUCTIONS & PARTS IDENTIFICATION OFRAN MODEL # 2252 - 38KD INC. ISABELLA 2 DOORS ACCENT CABINET BLUE FINISH Step:04 - Line up all the locking tabs in the open position - With two people, carefully align the top in place making sure that the tab fits into the receiver portion on the top.
