Jofran 2002-66 Manual

j
OFRAN
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come
loose inside the carton during shipment.

Parts key

No Qty
Code
1 pc
1 2002-66P54
1 pc
2 2002-66P09
1 pc
3 2002-66P02L
1 pc
4 2002-66P02R
1 pc
5 2002-66P02LB
1 pc
6 2002-66P02RB
2 pcs
7 2002-66P44
1 pc
8 2002-66P11
1 pc
9 2002-66P01E
4 pcs
10 2002P01F
Do not use power tools to assemble this table

STEP 1

x 08
H
G
3
4

Step 3

5
6
E
7
B
C
x 16
D

Detail C

MADE IN VIET NAM
INC.
Description
Table Top Frame
Glass Insert
Left Front Leg
Right Front Leg
Left Back Leg
Right Back Leg
Small Side Stretcher
Large Back Stretcher
Power Outlet
Floor Glide
Attach the L Plate "G" to the top of
the legs, by using wood screws "H".

Step 2

- Attach the legs with the small stretcher in position to the
topframe as shown. Do not fully tighten Bolt B at this time.
- Attach the long stretcher to the back legs and secure
with Bolt A, Lock Washer and a Flat Washer.
Secure the short stretchers to the legs with the wood
screws by hand tighten with a Phillips screwdriver
(Detail A). Fully hand tighten Bolt B.
3
5
F
x 04

Detail A

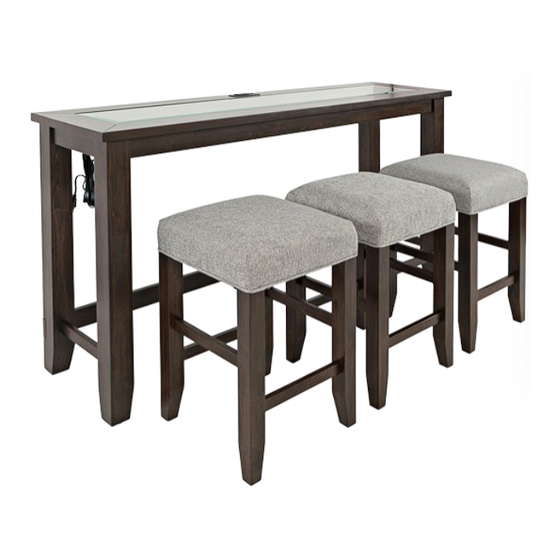

SOFA COUNTER DINING TABLE
No
A Bolt-Large to attach back stretcher
B Bolt-Small to attach the legs to the top
C Lock washer
D Flat washer
E Allen key
F Wooden Screw (for Stretcher)
G L Plate
H
Wood Screw (for L Plate)
Remove the glass retainer by using a screwdriver.
And then remove the glass, put it on a flat and safe place!
A
8
C
1

ASSEMBLY INSTRUCTIONS

& PARTS IDENTIFICATION
MODEL # 2002 - 66
URBAN ICON
MERLOT FINISH

Hardware kit

# 2002-66P01
Description
A C
D
8
E

Detail B

Qty
Ø6x30 04 pcs
Ø6x20 16 pcs
20 pcs
Ø8
20 pcs
Ø8x18
01 pc
K4
04 pcs
Ø4x40
04 pcs
08 pcs
Ø4x35
7
5 x 04
6
10
4
7
B
6
Page : 1/2
