Summary of Contents for akira AC-S13CGA
-

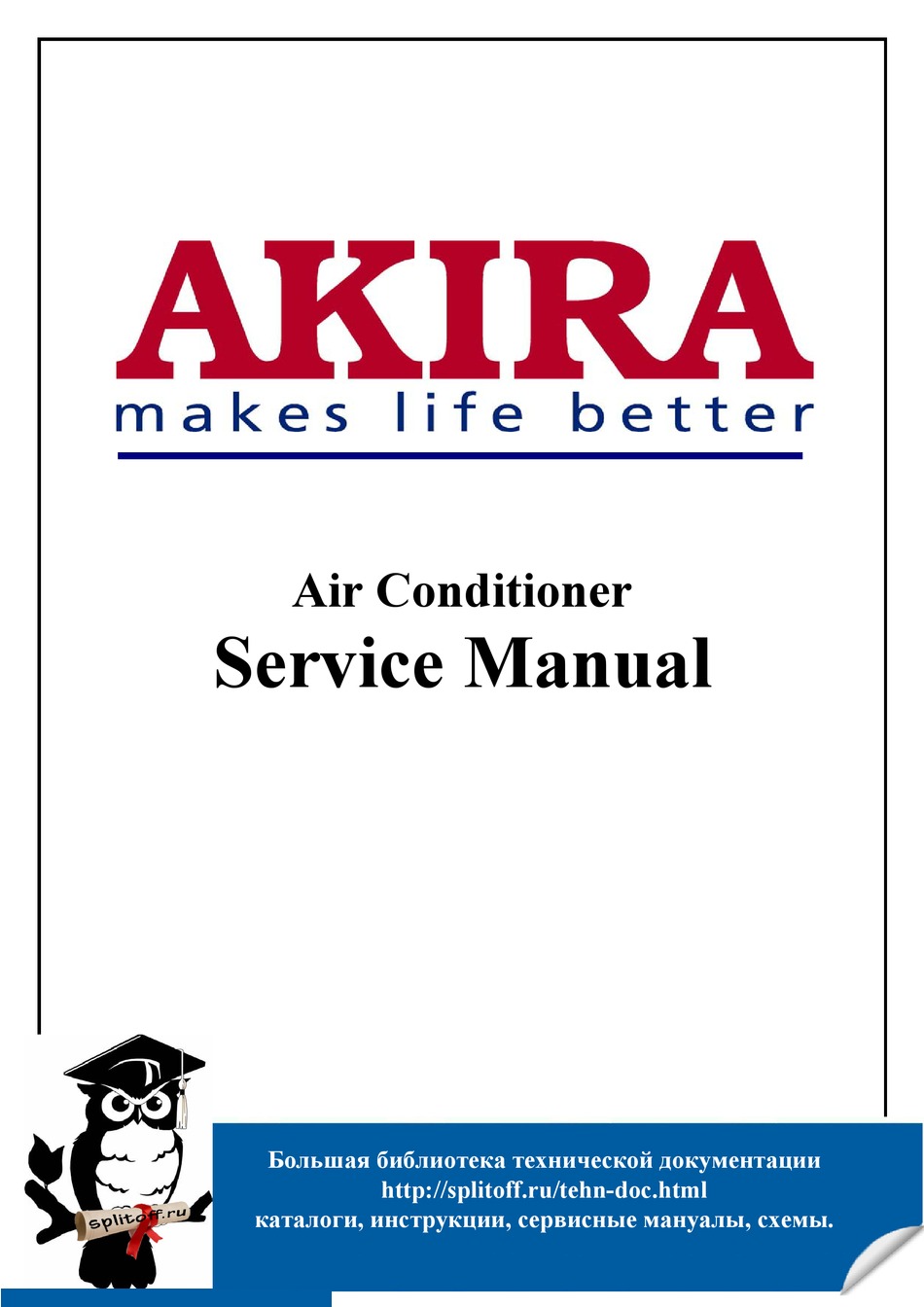

Page 1: Air Conditioner
Air Conditioner Service Manual http://splitoff.ru/tehn-doc.html... - Page 2 MODEL: AC-S13CGA Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 3: Table Of Contents
PERFORMANCE CURVE ........................5 OUTLINE & DIMENSIONS OF INDOOR UNIT .................. 8 OUTLINE & DIMENSIONS OF OUTDOOR UNIT ................9 EXPLODED VIEW & PARTLIST......................10 CIRCUIT DIAGRAM ..........................14 PCB FUNCTION MANUAL......................... 15 Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 4: Technical Specification
Defrosting method Auto defrost Noise(dB(A)) Dimension (width-height-depth) 848 x 540 x 320 (mm) Net weight(Kg) Refrigerant charge(kg) R22/0.8 Length (m) Liquid pipe 6(1/4”) Outer diameter Connecting Gas pipe 12(1/2”) pipe Height(m) Max distance Length(m) Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 5: Performance Curve
The change relation between low pressure, operation current and temp. Cooling operation condition: In testing, indoor and outdoor have same work condition. Heating operation Indoor work condition: dry bulb temp.21, wet bulb temp. 15.5 Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... - Page 6 Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 7 Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 8: Outline & Dimensions Of Indoor Unit
OUTLINES AND DIMENSIONS OF INDOOR UNIT Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 9: Outline & Dimensions Of Outdoor Unit
OUTLINES AND DIMENSIONS OF OUTDOOR UNIT Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 10: Exploded View & Partlist
EXPLODED VIEW & PART LIST INDOOR UNIT Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... - Page 11 PCB 5K512 Tube Sensor Room Sensor Fuse 3.15A 250VAC Electric Box Cover 2 Electric Box Cover Transformer Electric Box Cable Clamp Terminal Board T4A3A7377 Wire Clip LED Holder LED Board Connection Cable Power Cord Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 12: Outdoor Unit
OUTDOOR UNIT Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... - Page 13 Terminal Board T386A Electric Plate Comp Capacitor 30uF/450V Capacitor clamp Fan Capacitor 3uF/450V Terminal Board 2-8 Isolation Sheet Assy Tube Sensor Condenser Assy Rear grill Assy Top cover Assy Motor Support Self-tapping Screw Motor FW48A Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
-
Page 14: Circuit Diagram
CIRCUIT DIAGRAM These circuit diagrams are subject to change without notice. Please refer to the ones stuck on the machines. Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... -
Page 15: Pcb Function Manual
3 minutes passed and it detect the current no more than 13 A, it will back to original state. If it detects overloading states for 6 consecutive times, the machine stops, and must be restarted by remote controller. Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html... - Page 16 If it detects overloading state for 3 consecutive times within 30 minutes, the machine stops, and it must be restarted by remote controller. Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 17 In swing state, the louver swings between position L and position D. d. When the machine is switched off, it is back to position O. When the machine is running and the swing is off, the louver stops at position E. Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 18 1 hour, another 1 will be added. In heating mode, 1 hour after you preset the sleep timer, T set will lower 1 C automatically, another 1 hour, another 1 C will be lowered. Model No.: AC-S13CGA Version: 1.0 : http://splitoff.ru/tehn-doc.html...
- Page 19 http://splitoff.ru/tehn-doc.html...
