Summary of Contents for Euro Appliances EM52UMS

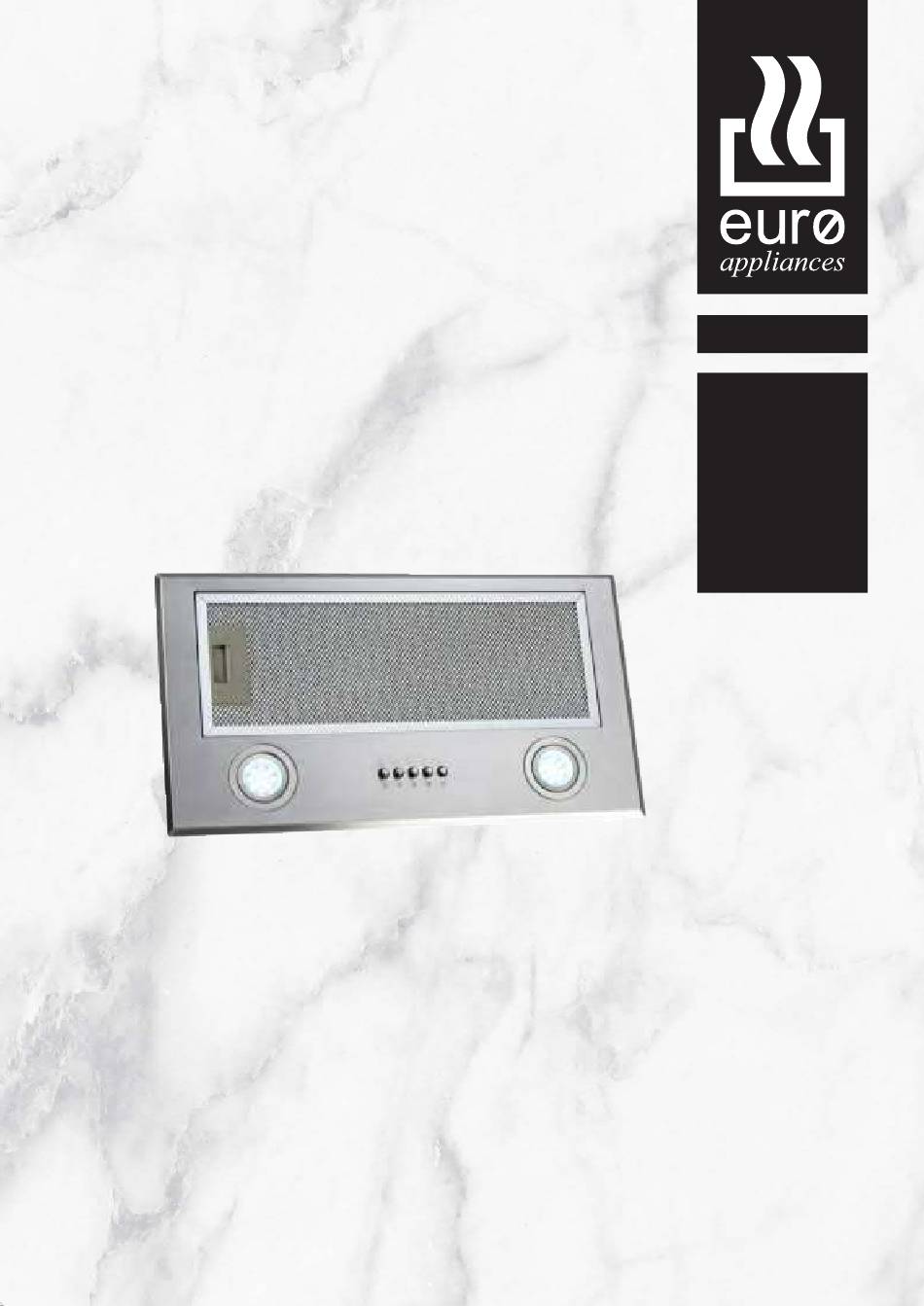

- Page 1 U S A G E A N D C A R E G U I D E PRODUCT CODE: EM52UMS EM70UMS EM90UMS...
-
Page 2: Table Of Contents
Contents Contents Warnings Safety Warning Measurement Installation Maintenance Trouble Shooting Main Parameters Disposal... -
Page 3: Warnings
Warnings This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children are not permitted to play with the appliance. -
Page 4: Safety Warning
Safety Warning Accessible parts may become hot when used with CAUTION : cooking appliances. The appliance is not intended for use by young children or infirm persons without supervisions. Young children should be supervised to ensure they do not play with the appliance. -
Page 5: Measurement
Measurement 520 700 900 497 677 865 Φ150... - Page 6 Measurement...
-
Page 7: Installation
Installation Here two venting modes, extraction-air mode and recirculation mode, before installing，select one mode. Recirculation mode Extraction-air mode... - Page 8 Installation Press the lock catch of metal Filter, remove the Filter. Remove the stainless steel frame by unfastening the other 2 screws (M4*8) Unfastening the screws (ST4*10), remove the lid of terminal box, disconnect the wires to the Commands at the connectors.
- Page 9 Installation Screw the stainless steel frame back into place using the screws removed as described above. Reconnect the wires to the Commands and Light. Replace the metal Filter. Install the air outlet pipe(optional). ...
-
Page 10: Use
Speed adjustment. See below Fig (for some models). • Press the Light button, the two lighting lamps will come on. Press it again and the lamps will be turned off. • Press the High (speed) button, the motor runs at high speed. •... -
Page 11: Maintenance
Maintenance Cleaning of the filter • Removing the metal filter according to Installation (page 7). Put it into a dishwasher with detergent, set the temperature below 60 degrees. • Please do not use abrasive detergent for it will damage the hood. •... - Page 12 Maintenance Changing the filter • Remove the metal filter according to Installation (page 7). Remove the saturated Activated Charcoal Filters(optional), as indicated. • Fit the new Charcoal Filters, as indicated. • Replace the Metal grease Filter according to Installtion (page 8).
- Page 13 Maintenance Replacing the lamp • Press the lock catch of metal filter, remove the Filter • Push the lamp from inside to remove the Lamp • Disconnect the wires from the Lamp • Connect the wires of the new Lamp •...
-
Page 14: Trouble Shooting
Trouble Shooting Fault Cause Solution The blades are blocked. The capacitor is damaged. Replace capacitor. Light on, but motor does not work. The motor is damaged. Replace motor. The internal wiring of motor is cut off / disconnected. An unpleaseant smell Replace motor. -
Page 15: Main Parameters
Main Parameters Model EM52UMS EM70UMS EM90UMS Voltage 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz Rated Power 113W 213W 213W Lighting Power 1.5W x 2 1.5W x 2 1.5W x 2 110W 210W 210W Motor Power Diameter of air tube 150mm 150mm... - Page 16 Pronto Service + Support: 1800 440 335 Email: service@eurostylegroup.com.au HEAD OFFICE 65 Glynburn Road, Glynde SA 5070 Ph: 08 8165 1012 www.euroappliances.com.au...
