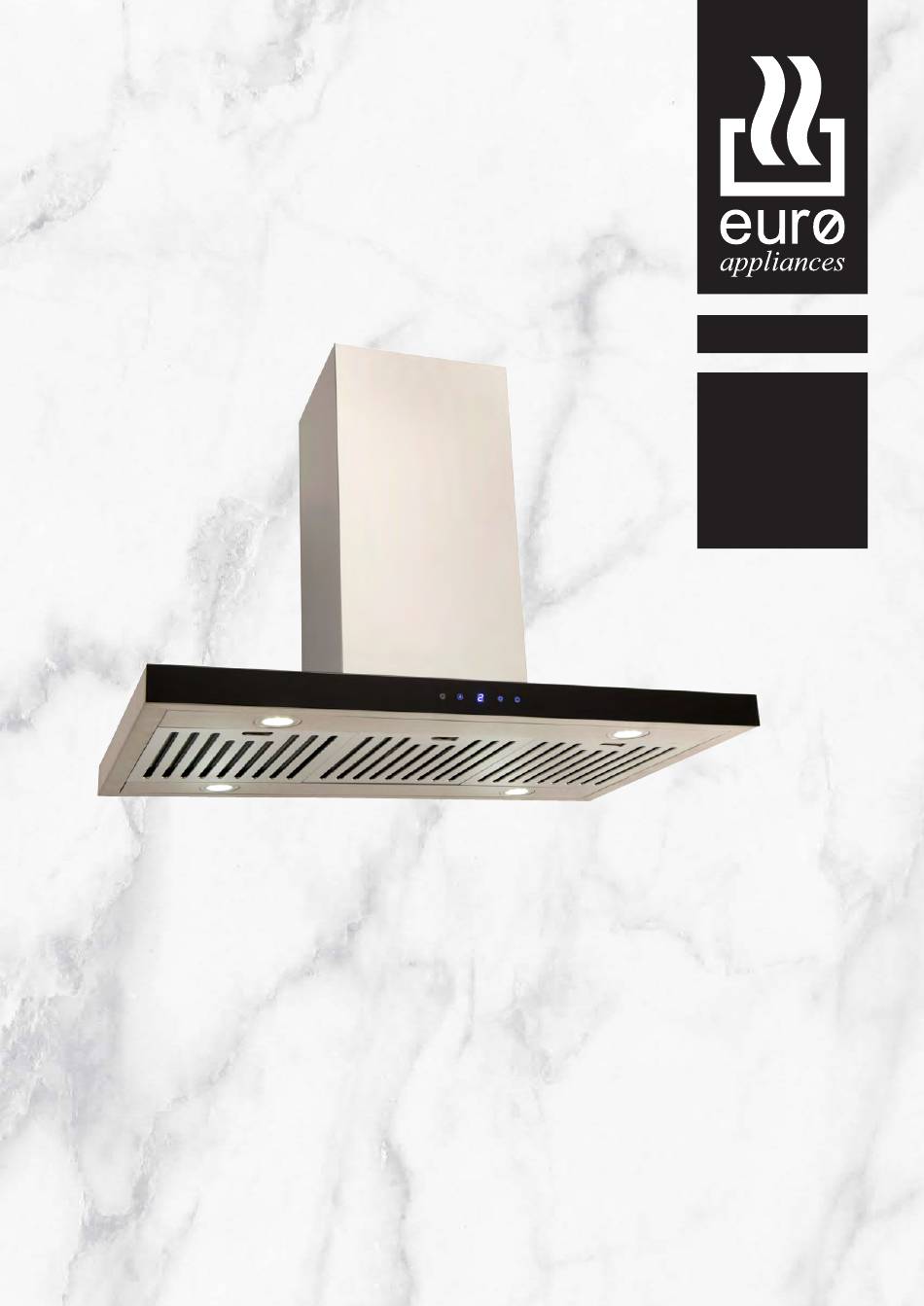

- Page 1 U S A G E A N D C A R E G U I D E PRODUCT CODE: EIC90BGR...
-
Page 2: Table Of Contents
Content SAFETY INSTRUCTIONS INSTALLATION Start Using Your Cooker Hood TROUBLESHOOTING MAINTENANCE AND CLEANING ENVIRONMENTAL PROTECTION... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS his manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. of a range hood or other cooking fume Never to do: extractor, the operation of open flued... - Page 4 Always to do: Always to do: ● lways put lids on pots and pans when cooking on a gas cooker. ● aution: The appliance and its ● hen in extraction mode, air in the accessible parts can become hot room is being removed by the cooker during operation.
-
Page 5: Installation
INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half- parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations. To mount the V-flap 1 you should: •... - Page 6 3. The ceiling must can bear at least 120kgs weight, and the thickness of the ceiling must be ≧30mm, drill 1*170mm round hole in the ceiling. 4. According to the hanging board, drill 12 holes in the ceiling, see pic 2. 12 pcs of ST6*40mm big flat screws will be used to fix the hanging board on the ceiling, and then 8 pcs of M4*10 screws and M4 nut with gasket will be used to connect the angle iron into the hanging board, see pic 1, calculated the length of the angle iron,...
- Page 7 6. 4 pcs ST4*8mm of big flat screws will be used to connect the inside chimney into the hanging board, then put on the outside chimney, a hook will be used to put up the outside chimney in order to the next installation, see pic 5. Install the v-flap to the outlet.
- Page 8 HINTS FOR EXHAUST DUCT INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: • Keep expansion pipe short and straight. • Do not reduce the size or restrict expansion pipe. • When using expansion pipe always install the pipe pulled taut to minimize pressure loss.
-
Page 9: Start Using Your Cooker Hood
For safety reason, please use only the same WARNING: size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. - Page 10 automatically and the lamp will extinguish. If pressing “Timer” button, the hood will go in or go out “Timer” function. Connecting the remote control A New remote control has to establish a new connection to the cooker hood when used for first time.
- Page 11 press button once, the light is on, press again, the light is off.The lighting button it is controlled separately and will not affect any other functions. 2. Turning on/ Increasing motor speed button , the motor has low, mid, high totally 3 levels.
-
Page 12: Troubleshooting
TROUBLESHOOTING Fault Possible Cause Solution Fan switch turned off Select a fan switch position. Light on, but motor Fan switch failed Contact service center. does not work Motor failed Contact service center. House fuses blown Reset/Replace fuses. Light does not Refit mains power cable to work, motor does Mains power cable is loose or... - Page 13 STAINLESS STEEL The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used. NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.
- Page 14 Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of activated carbon filter is as below: Remove the al filter. ...
-
Page 15: Environmental Protection
– Voltage range: DC 12V – Dimensions: ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. - Page 16 Pronto Service + Support: 1800 440 335 Email: service@eurostylegroup.com.au HEAD OFFICE 65 Glynburn Road, Glynde SA 5070 Ph: 08 8165 1012 www.euroappliances.com.au...
