Euro Appliances ERB120SS3R Usage And Care Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

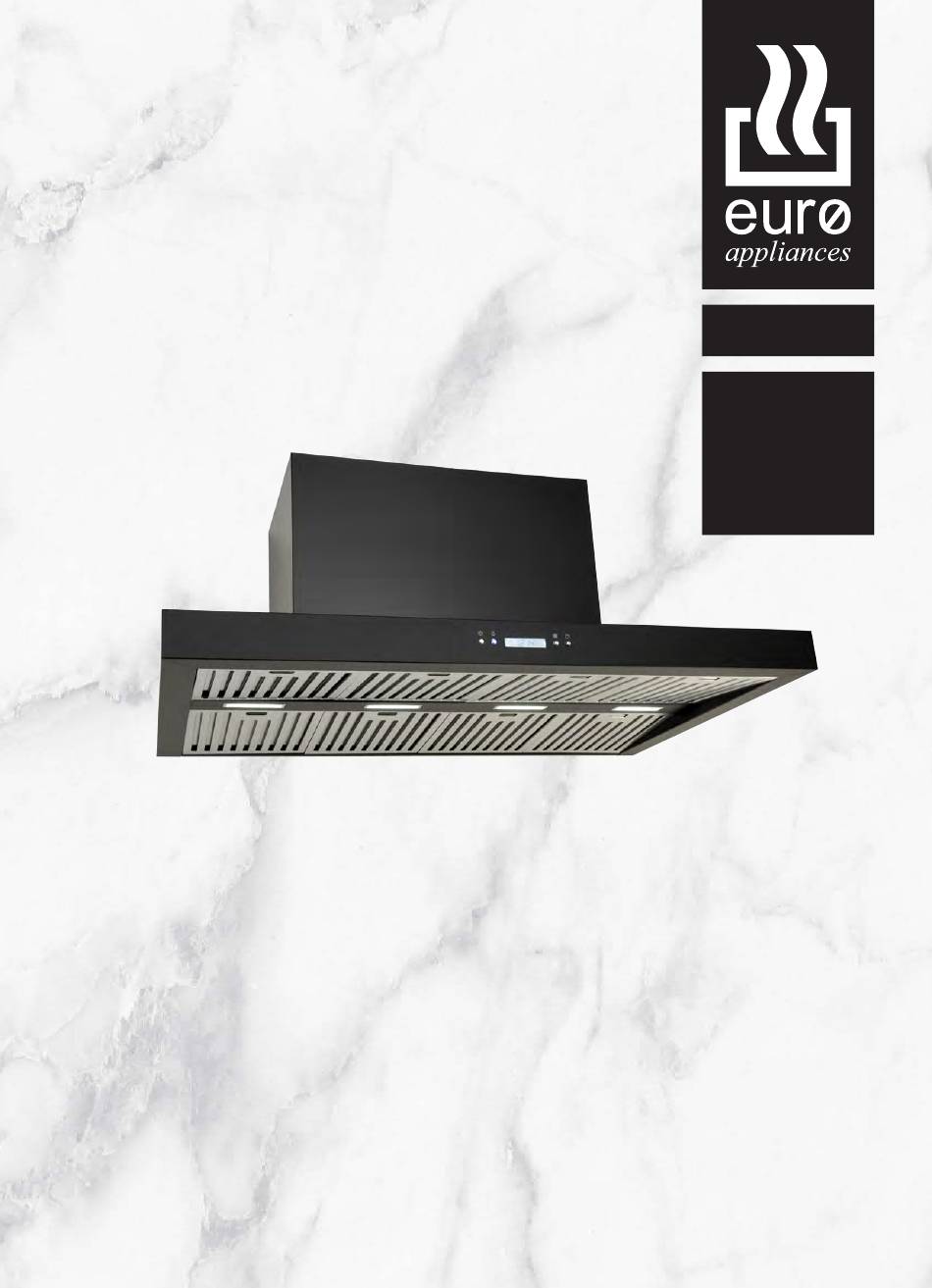

rangehoods
USAGE AND
CARE GUIDE
PRODUCT CODE:
ERB120SS3R
ERB120BK3R

Advertisement

loading

Related Manuals for Euro Appliances ERB120SS3R

Summary of Contents for Euro Appliances ERB120SS3R

  • Page 1 USAGE AND CARE GUIDE PRODUCT CODE: ERB120SS3R ERB120BK3R...

  • Page 2: Table Of Contents

    Content SAFETY INSTRUCTIONS .......................... 3 INSTALLATION (VENT OUTSIDE) ......................5 Start Using Your Cooker Hood ....................... 9 TROUBLESHOOTING ..........................12 MAINTENANCE AND CLEANING ......................13 ENVIRONMENTAL PROTECTION: ......................17...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS This manual explains the proper installation and use of your cooker hood, please read itcarefully before using even if you are familiar with the product. The manual should be keptin a safe place for future reference. Never to do: necessary to allow disconnection of the appliance from the supply after Do not try to use the cooker hood...
  • Page 4 Always to do: Always to do: Always put lids on pots and pans when Caution: The appliance and its accessible   cooking on a gas cooker. parts can become hot during operation. When in extraction mode, air in the Be careful to avoid touching the heating ...

  • Page 5: Installation (Vent Outside)

    INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body.The images only show an example of how to mount the V-flap,the outlet may be various according to different models and configuration.
  • Page 6 For indoor cooking, the cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect. See pic 1. For outdoor BBQ and Alfresco cooking, the cooker hood should be placed at a minimum clearance of 120cm above the cooking surface for the best effect. See pic 1.2. 120cm Once the installation height of hook ,inside chimney bracket and safety hole is fixed according to pic 2, drill 6 holes of φ11mm on the wall.
  • Page 7 Hang the cooker hood on the hook.See pic 6. Pic7 Pic6 Fasten ST4*30mm screws to the two safety holes on the cavity and fix the cooker hood. Note: The two safety vents are positioned on the back housing, with diameter of 6mm.See pic 7. Lay the expansion pipe to the two blower outlet, and fix the expansion pipe with cable tie.See Pic Pic8 See pic 10, Put the chimney on the cooker hoodand be sure that the inside chimney can be adjusted the...
  • Page 8 HINTS FOR EXHAUST DUC INSTALLATION The following rules must be strictly followed to obtain optimal air extraction: • Keep expansion pipe short and straight. • Do not reduce the size or restrict expansion pipe. • When using expansion pipe always install the pipe pulled taut to minimize pressure loss. •...

  • Page 9: Start Using Your Cooker Hood

    Start Using Your Cooker Hood Control Plug the hood; LCD will display 24-hour system with blue backlight. Backlight will be extinguished after 15 seconds without any operation. Press “ ” button once; lights will be on and LCD will show “ ”.
  • Page 10 pressing “ ” button; it will display from 01;02… until 59. When LCD shows 59; it doesn’t work by pressing “ ” button. Press “ ” button once; the number reduces by 01. When LCD shows 00; it doesn’t work by pressing “ ”...
  • Page 11 2. Turning on/ Increasing motor speed key , the motor has low, mid, high totally 3 levels. Press one time,the motor will work at low speed (Turning on). When the hood works at low speed,touch again,the motor changes to mid speed. Base on the middle speed condition, touch again, the motor is running in the high speed.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Fault Possible Cause Solution Light on, but motor does Fan switch turned off Select a fan switch position. not work Fan switch failed Contact service center. Motor failed Contact service center. Light does not work, House fuses blown Reset/Replace fuses. motor does not work Power cord loose or disconnected Refit cord to power outlet.

  • Page 13: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Caution: • Before maintenance or cleaning is carried out, thecooker hood should be disconnected from the mainpower supply. Ensure that the cooker hood is switchedoff at the wall socket and the plug removed. • External surfaces are susceptible to scratches andabrasions, so please follow the cleaning instructionsto ensure the best possible result is achieved withoutdamage.
  • Page 14 The mesh filters can be cleaned by hand.Soak them for about 3 minute in water with a grease- loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery andkitchen utensils.
  • Page 15 Changing the lights: Remove the grease filter. Way 1. Use a tool or the hand to press the spring splinterof both sides of LED light to the inside, until the light is pressed out, see pic 1.Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire.

  • Page 17: Environmental Protection

    ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU.
  • Page 18 Pronto Service + Support: 1800 440 335 Email: service@eurostylegroup.com.au HEAD OFFICE 65 Glynburn Road, Glynde SA 5070 Ph: 08 8165 1012 www.euroappliances.com.au...
