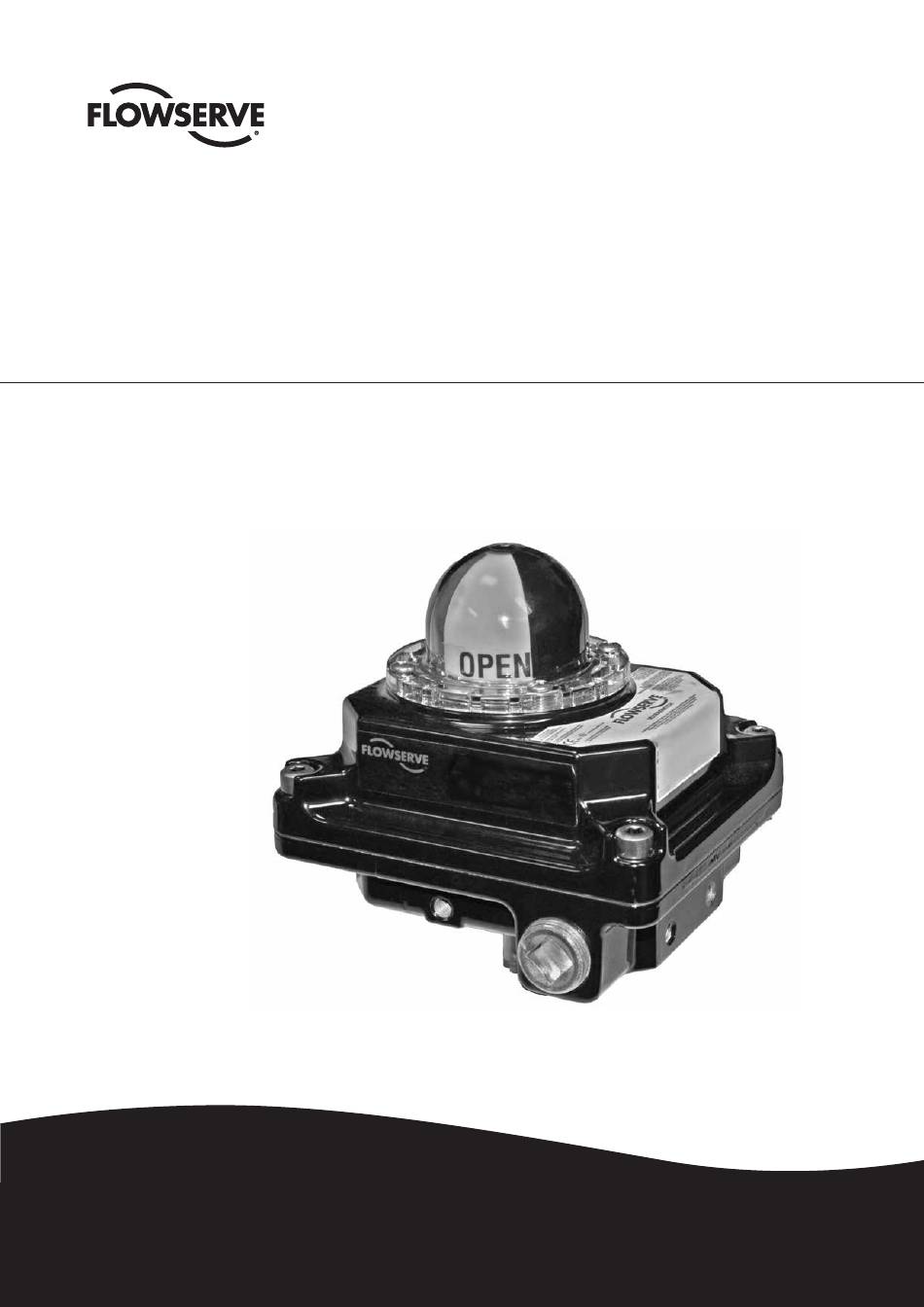

- Page 1 USER INSTRUCTIONS PMV XCL/XML UltraSwitch™ Installation Operation Switchbox Maintenance FCD PMENIM0120-14 A4 - 09/16 Experience In Motion...
-
Page 2: Table Of Contents
PMV XCL/XML Switch Box User Instructions FCD PMENIM0120-14 A4 09/16 Contents 1 Introduction 2 Installation 2.1 Mounting to Actuator 2.2 Wiring Instructions 2.3 Special Hazardous Location Instructions 3 Configuring the Unit 3.1 Adjusting Limit Switches 3.2 Cam Fine Adjustment 3.3 Adjusting UltraDome Position Indicator 3.4 Calibrating 4-20 mA Transmitter 4 Specifications 4.1 Switch Option Specifications... -
Page 3: Introduction
(top and third switches for 4-switch versions) should only be used to indicate the clockwise position: the bottom switch (second and fourth • Only Flowserve replacement parts must be used in order to not switches for 4-switch versions) should only be used to indicate the invalidate certification. -
Page 4: Special Conditions For Safe Use
PMV XCL/XML Switch Box User Instructions FCD PMENIM0120-14 A4 09/16 Special Conditions For Safe Use INMETRO Ex d: “ATENÇÃO-NÃO ABRA QUANDO ENERGIZADO” (see section 8.1 with max safe gaps) “ATENÇÃO-RISCO POTENCIAL DE CARGA ELECTROSTÁTICA - LIMPE CAUTION (specific for different certificates): SOMENTE COM UM PANO ÚMIDO”... -
Page 5: Cam Fine Adjustment
5 as necessary. NOTE: If transmitter adjustment gets difficult (i.e., trim pots do not have desired effect) start over by “centering” the trim pots. This is accomplished by turning in one direction for 20 turns and reversing direction for 10 turns. flowserve.com... -
Page 6: Specifications
P5 – SPDT Proximity Hamlin 59135-030 0.25A at 120 VAC / 0.25A at 28 VDC (3 W Max.) PE – SPDT Sabre Proximity Flowserve XA0199 1A at 120 VAC / 1A at 24 VDC PP – SPDT Phazer Proximity Flowserve... -
Page 7: Analog Feedback Option Specifications
Class II, Division 2, Groups F and G Class III (CSA only) FM U.S. Canada Intrinsically Safe Switch Options Switch Type: MG, PE, PT, P4, N8, NQ, NP Class I,II,II Division 1 Groups A, B, C, D, E, F, G T5 flowserve.com... -
Page 8: Product Nomenclature
PMV XCL/XML Switch Box User Instructions FCD PMENIM0120-14 A4 09/16 6 Product Nomenclature F = Switch options (qty of switches) 1x 2x 4x No Switches (empty housing) SPDT Mechanical switches 250VAC A = Brand sticker Blank Automax SPDT Mechanical with Cams for Accord 3-Position Control Inline Industries... - Page 9 K = Accessories Example: None PNXCLU2M1-18-00200 = PMV brand, NAMUR shaft, XCL, Ultradome Cover bolts lubricated with grease indicator, (2) SPDT mechanical switches CSA and ATEX certifications. No Silicone 180’ pot ( for analog options: A, B, Viton O-rings flowserve.com...
-
Page 10: Materials
PMV XCL/XML Switch Box User Instructions FCD PMENIM0120-14 A4 09/16 7 Materials Part Materials Housing/Cover Aluminum w/ Dichromate & Polyester Powdercoat Shaft Stainless Steel Cams/Splines Nylon UltraDome and Rotor Polycarbonate Terminal Block Nylon – Buchanan TBS Series Internal Brackets Stainless Steel or Plated Steel All Internal Fasteners Stainless Steel or Plated Steel All External Fasteners... -
Page 11: Drawings
PMV XCL/XML Switch Box User Instructions FCD PMENIM0120-14 A4 09/16 8.2 Drawings Torque for cover bolts 8 Nm / 71 lbs-in Tighten bolts cross-wise. flowserve.com... - Page 12 No. 35, Baiyu Road function safely during its useful life. However, the purchaser or user of Flowserve products should be aware that Flowserve products might be used in numerous applications under a wide variety of industrial service conditions. Although Flowserve can (and often does) provide general guidelines, it cannot provide specific data and warnings for all possible applications. The pur- Suzhou Industrial Park chaser/user must therefore assume the ultimate responsibility for the proper sizing and selection, installation, operation, and maintenance of Flowserve products.
