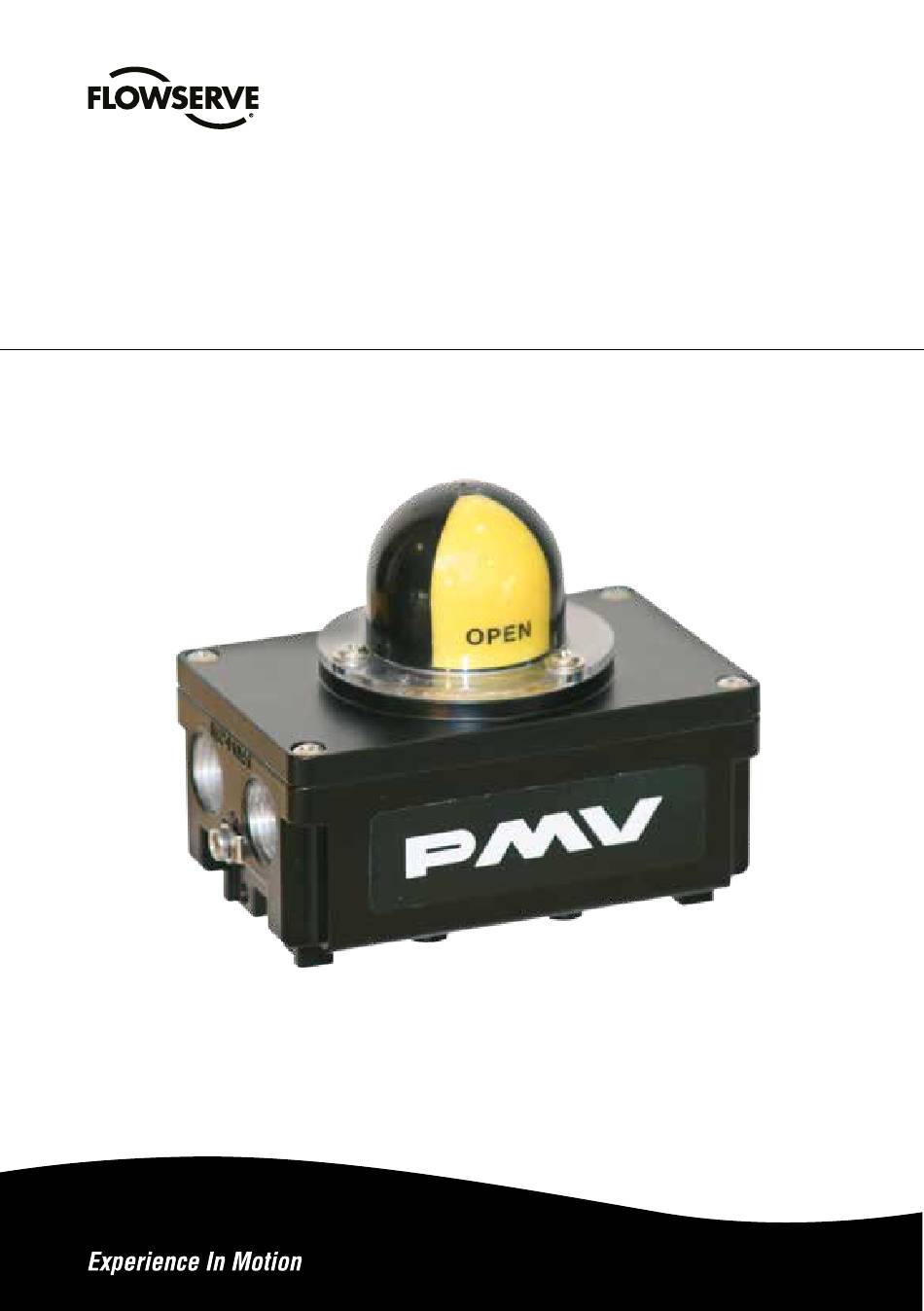

- Page 1 USER INSTRUCTIONS PMV WS/WM Ultraswitch™ Installation Switchbox Operation Maintenance FCD PMENIM0010-04 - 10/21...
-
Page 2: Table Of Contents
FCD PMENIM0010-04 - 10/21 CONTENTS 1. GENERAL INFORMATION ......................3 2. SAFETY INSTRUCTION ........................3 3. PACKAGING AND PROPER SEALING ....................4 4. CERTIFICATES ..........................4 5. SPECIFICATIONS ..........................5 5.1 Technical data ................................5 5.2 Materials of construction ............................5 5.3 Type sign Example ..............................5 5.4 WS/WM UltraSwitch™ nomenclature .........................6 5.5 WS/WM UltraSwitch™... -
Page 3: General Information
FCD PMENIM0010-04 - 10/21 1. GENERAL INFORMATION WS/WM Ultraswitch™ enclosures provide local and remote position indication for automated valves. They generally feature a visual black/yellow or red/green indicator for intuitive local position determination. The WS/WM Ultraswitch™ is available with a number of limit switch options for remote indication, in a variety of electrical applications. -
Page 4: Packaging And Proper Sealing
FCD PMENIM0010-04 - 10/21 3. PACKAGING AND PROPER SEALING Report transport damage to the carrier immediately. In case of discrepancies - contact your nearest FLOWSERVE location. Instructions for proper sealing. • Take care to ensure that cover gasket seal is properly located in seal groove •... -
Page 5: Specifications
FCD PMENIM0010-04 - 10/21 5. SPECIFICATIONS 5.1 Technical data Ingress protection IEC 529 IP 66/67, NEMA Type 4X Weight (max) 0.7 kg / 1.55 lbs 5.2 Materials of construction Part Material Housings Powder Epoxy painted Aluminum or PA6/PA66 engineered resin, 25 – 30% fiberglass filled Covers Powder Epoxy painted Aluminum or PA6/PA66 engineered resin, 25 –... -
Page 6: Ws/Wm Ultraswitch™ Nomenclature
FCD PMENIM0010-04 - 10/21 5.4 WS/WM UltraSwitch™ nomenclature Brand sticker Automax Automax painted blue (RAL 5000) Accord Valtek Worcester Controls Shaft type NAMUR shaft, EN 15714 Low profile shaft For NAF Turnex Double ”D” 1/4 Inch Flats Body style General Purpose/I.S. Enclosure / 1/2” NPT Conduit entries General Purpose/I.S. - Page 7 FCD PMENIM0010-04 - 10/21 IN5207 IN-2002-FRKG/PH RT (J=14 only) NS5002 IS-2002-N AS-i Controller card 2x P4 switches SPDT Mechanical 15A @ 250VAC ; 0,5A@125VDC SIL3 Capable SPDT Mechanical - Gold Contacts SIL3 Capable NJ4-12GM40-E NJ2-12GK-N SJ3,5-S1N SIL3 Capable NJ2-12GK-SN SIL3 Capable NJ4-12GK40-E NJ4-12GK40-E1 NBB2-V3-E0...
-
Page 8: Ws/Wm Ultraswitch™ Switch Options
Hamlin 0.25A @ 120 VAC; 0.25A @ 28 VDC (3 W Max.) A, B, C SPDT Sabre Proximity Flowserve 1A @ 120 VAC; 1A @ 24 VDC SPDT Phazer Proximity Flowserve 3A @ 120 VAC; 2A @ 24 VDC A, B, C... - Page 9 FCD PMENIM0010-04 - 10/21 Code Certificate ATEX II 1G Ex ia IIC T4/T5/T6 ATEX II 1G Ex ia IIB T4/T5/T6 ATEX II 1D ta IIIC T80°C T 85°C Da IP66/67 cCSAus IS cCSAus NI Notes Valid certification codes according to table in WS/WM Nomenclature on page 7. Some models have more than two open terminal locations open as standard.
-
Page 10: Installation
FCD PMENIM0010-04 - 10/21 6. INSTALLATION The WS/WM Ultraswitch™ may be installed to valves or valve actuators with a variety of mounting hardware. For best results, specify the NAMUR shaft option and NAMUR mounting hardware when fitting to a NAMUR compliant actuator. These options allow direct coupling to actuators without couplings, reducing dead band. -
Page 11: Wiring Instructions
FCD PMENIM0010-04 - 10/21 6.1 Wiring instructions • Perform all wiring according to the Internal and external grounding wiring diagram found on the label in the housing (see picture) and instructions given below. • Make sure that the ground wire is correctly connected •... -
Page 12: Cover And Housing Options
FCD PMENIM0010-04 - 10/21 6.2 Cover and housing options Aluminum or Resin Aluminum or Resin Aluminum or Resin cover cover flat cover Dome Indicator Arrow Indicator Polycarbonate transparent cover Polycarbonate transparent cover Dome Indicator Arrow Indicator Aluminum housing Resin housing... -
Page 13: Switches (Certified)
FCD PMENIM0010-04 - 10/21 7. Switches (certified) Substitution of components may impair suitability for hazardous (classified) locations. Do not disconnect equipment unless area is known to be non-hazardous. To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing, or; read, understand and adhere to the manufacturer’s live maintenance procedures. -
Page 14: Switch Option Specifications (All)
FCD PMENIM0010-04 - 10/21 7.5 Switch option specifications (all) Code Switch Option Manufacturer Part Number Load Capacity No switches (empty housing) IN5129 10-36VDC (J=14only) IF5250 10-36VDC NC PNP, 150mA, 3-wire NC IF6001 18-32VDC, NO PNP, 150mA@50°C IF6034 10-36VDC, NO PNP, 150mA, Stainless Steel IN0074 20-250 AC/DC NO, 350mA/100mA IN0081... -
Page 15: Switch Option Specifications (Continued)
0.35A at 140 VAC / .25A at 200VDC (50 W Max.) SPDT Proximity Hamlin 59135-030 0.25A at 120 VAC / 0.25A at 28 VDC (3 W Max.) SPDT Sabre Pxy Flowserve XA0199 1A at 120 VAC / 1A at 24 VDC SPDT Phazer Pxy Flowserve XA0155... -
Page 16: Dimensions
FCD PMENIM0010-04 - 10/21 8. Dimensions WS body enclosure WM body enclosure... -
Page 17: Spare Parts
FCD PMENIM0010-04 - 10/21 9. Spare parts Part No Description D20-SP52 Arrow indicator assembly D20-17G Dome indicator assembly red/green D20-17Y Dome indicator assembly black/yellow M800214 Polycarbonate transparent cover with dome indicator red/green M800215 Polycarbonate transparent cover with arrow indicator ME1967 Gasket for cover (all cover types) -
Page 18: Control Drawing
FCD PMENIM0010-04 - 10/21 10. Control drawing... -
Page 19: Applied Standards
FCD PMENIM0010-04 - 10/21 11. Applied standards EN IEC 60079-0:2018 EN 60079-11: 2012 IEC 60079-0:2017 IEC 60079-11:2011 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 60204-1... - Page 20 When properly selected, this Flowserve product is designed to perform its intended function 585, Hanwei Plaza safely during its useful life. However, the purchaser or user of Flowserve products should be aware 7 Guanghau Road that Flowserve products might be used in numerous applications under a wide variety of industrial service conditions.
