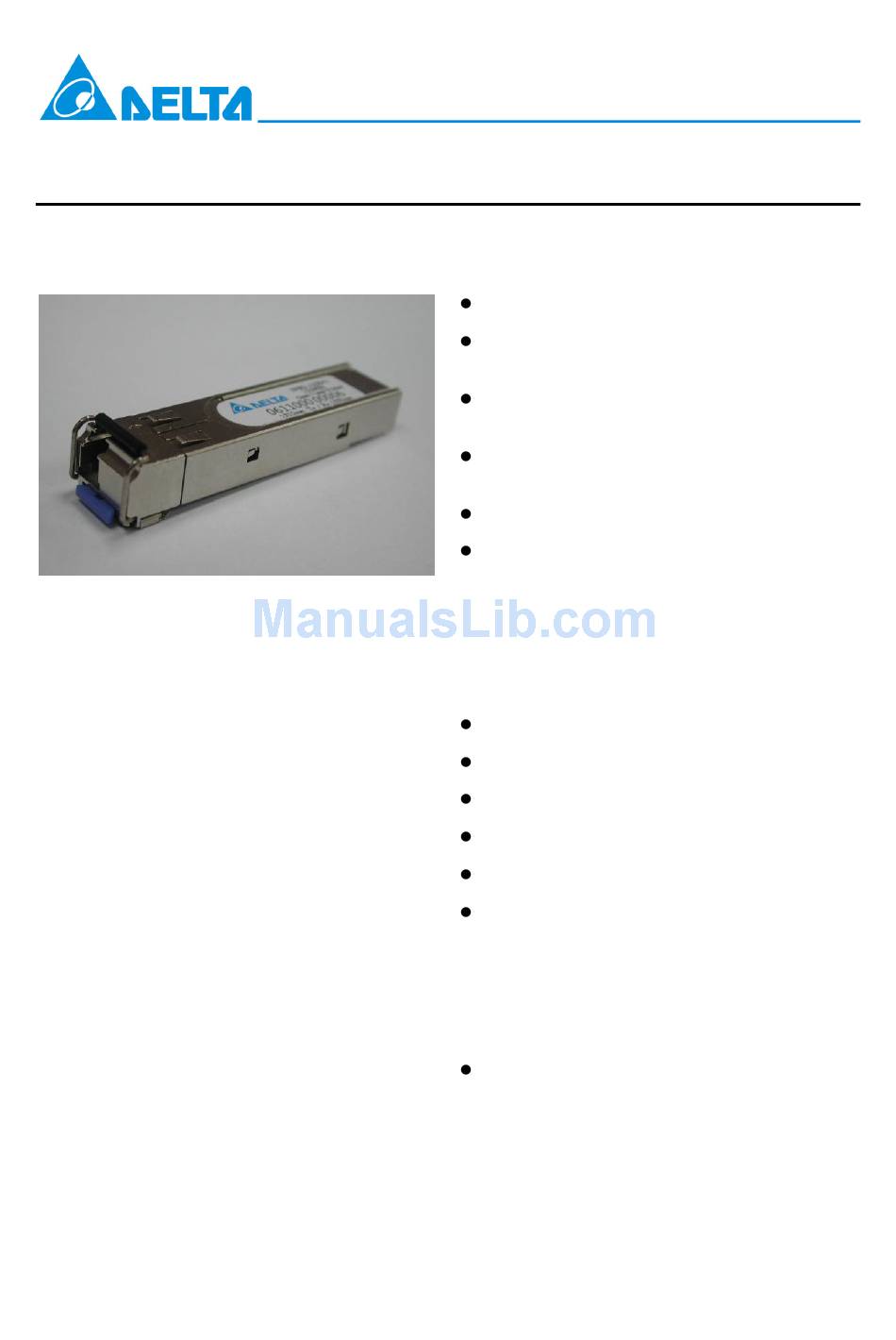

Delta Electronics SPBD-155E4J1RD Specification Sheet

Intelligent SFP Bi-Directional Transceiver Module
for Fast Ethernet, ATM, SONET OC-3/SDH STM-1
Description
The SPBD-155xxxxx series are hot pluggable
3.3V Small-Form-Factor
transceiver module
high-speed communication
require rates of up to 155Mbit/sec. It is compliant
with the Fast Ethernet, ATM, SONET OC-3/SDH
STM-1 standards, as well as the SFP Multisource
Agreement (MSA).
The SPBD-155xxxxx transceivers provide with
the LC receptacle that is compatible with the
industry standard LC connector. The transceiver is
also compatible with industry standard RFT
connector and cage. It also includes a LOS (Loss
Of Signal) circuit that provides a TTL logic-high
output when an unusable optical signal level is
detected.
The module includes 1310nm un-cool FP laser,
InGaAs PIN, Preamplifer and WDM filter in a
high-integrated optical assembly for high-density
system application.
transceiver can upgrade transmission capacity very
convenient without installing new fibers.
DELTA ELECTRONICS, INC.
(SFP) Bi-Directional
designed expressly
applications
The SFP Bi-Directional
FEATURES
RoHS compliant
Digital Diagnostic SFF-8472, Rev. 9.5 MSA
compliant
Simplex LC connector with 1310nm
Transmitter and 1550nm Receiver
Single + 3.3V power supply and TTL logic
interface
Bellcore GR-468 compliant
Laser class 1 product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
TTC TS-1000
for
ITU-T G.985
that
IEEE 802.3ah 100BASE-BX/ Fast Ethernet
SONET OC-3/SDH STM-1
FTTx WDM Broadband Access
Switch to switch/backbone interface
Performance
SPBD-155E4J1RD data link up to 15km in
9/125um single mode fiber.
1
SPBD-155E4J1RD
Revision: S1
04/11/2007
