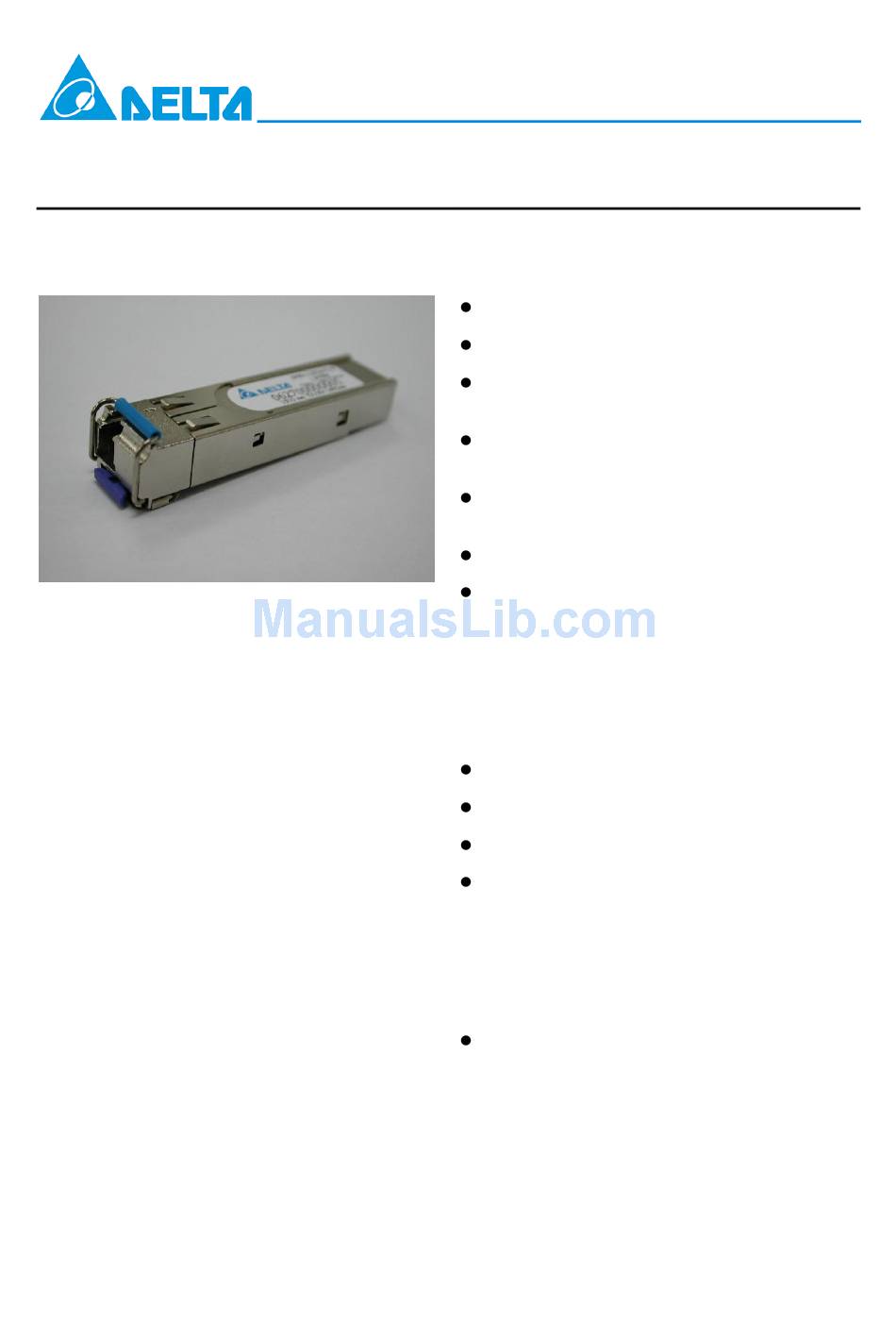

Delta Electronics SPBD-1250A4Q1R Specification Sheet

Intelligent SFP Bi-Directional Transceiver
Module for Gigabit Ethernet
Description
The SPBD-1250xxxx series are hot pluggable
3.3V Small-Form-Factor
transceiver module
high-speed communication
require rates of up to 1250Mbit/sec. It is compliant
with the Gigabit Ethernet standards, as well as the
SFP Multisource Agreement (MSA).
The SPBD-1250xxxx transceivers provide with
the LC receptacle that is compatible with the
industry standard LC connector. The transceiver is
also compatible with industry standard RFT
connector and cage. It also includes a LOS (Loss
Of Signal) circuit that provides a TTL logic-high
output when an unusable optical signal level is
detected.
The module includes 1310nm un-cool FP laser,
InGaAs PIN, Preamplifer and WDM filter in a
high-integrated optical assembly for high-density
system application.
transceiver can upgrade transmission capacity very
convenient without installing new fibers.
DELTA ELECTRONICS, INC.
(SFP) Bi-Directional
designed expressly
applications
The SFP Bi-Directional
FEATURES
RoHS compliant
Digital Diagnostic SFF-8472 Compliant
Simplex LC connector with 1310nm
Transmitter and 1490nm Receiver
Integrated with WDM filter to cut 1550nm and
1650nm optical signal off
Single + 3.3V power supply and TTL logic
interface
Bellcore GR-468 compliant
Laser class 1 product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
for
IEEE 802.3ah 1000BASE-BX10
that
Gigabit Ethernet Application
FTTx WDM Broadband Access
Switch to switch/backbone interface
Performance
SPBD-1250A4Q1R data link up to 10km in
9/125um single mode fiber.
1
SPBD-1250A4Q1R
Revision: S1
03/12/2007
www.deltaww.com
