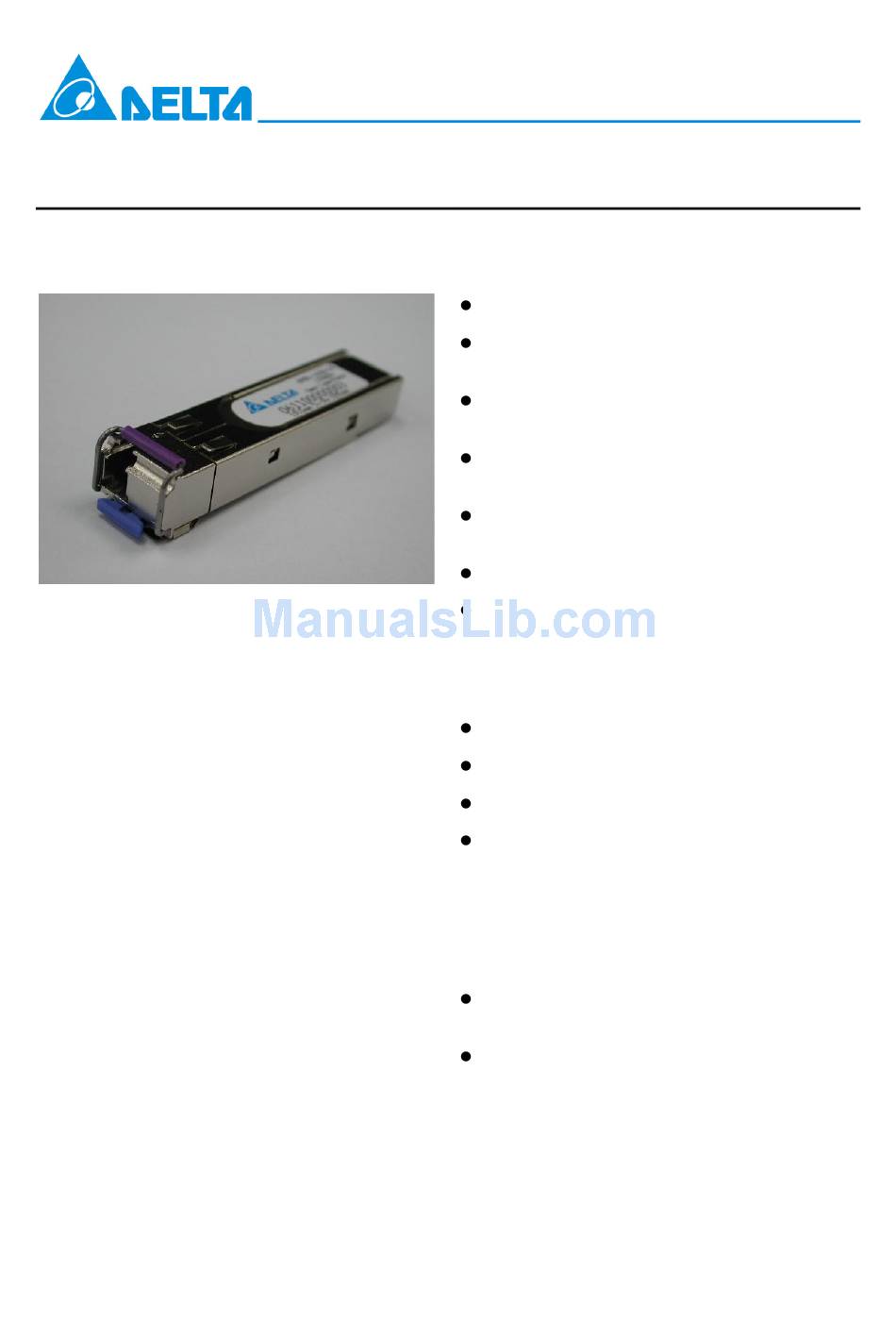

Delta Electronics SPBD-1250B4Q1RT Specification Sheet

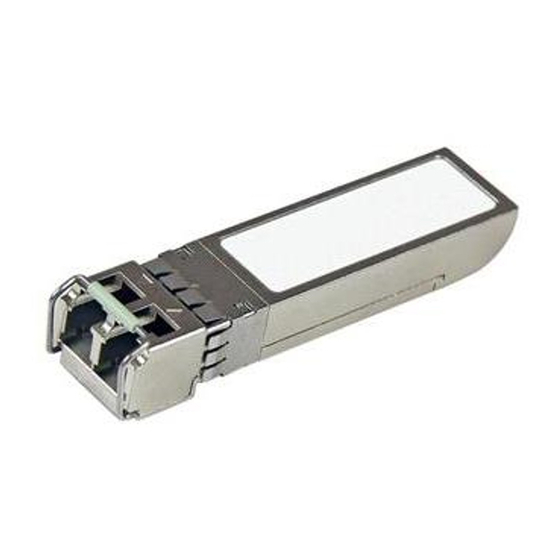

Intelligent SFP Bi-Directional Transceiver
Module for Gigabit Ethernet and Fast Ethernet
Description
The SPBD-1250xxxx series are hot pluggable
3.3V Small-Form-Factor (SFP) Bi-Directional
transceiver module designed expressly for
high-speed communication applications that
require rates of up to 1250Mbit/sec. It is
compliant with the Gigabit Ethernet and
Ethernet standards, as well as the SFP
Multisource Agreement (MSA).
The SPBD-1250xxxx transceivers provide with
the LC receptacle that is compatible with the
industry standard LC connector. The transceiver
is also compatible with industry standard RFT
connector and cage. It also includes a LOS
(Loss Of Signal) circuit that provides a TTL
logic-high output when an unusable optical
signal level is detected.
The module includes 1490nm un-cool DFB
laser, InGaAs PIN, Preamplifer and WDM filter in
a high-integrated
high-density system
Bi-Directional transceiver
transmission capacity very convenient without
installing new fibers.
DELTA ELECTRONICS, INC.
Fast
optical assembly
application. The SFP
can upgrade
FEATURES
RoHS compliant
Digital Diagnostic SFF-8472, Rev. 9.5 MSA
compliant
Support Multi-Rate for Gigabit Ethernet and
Fast Ethernet
Simplex LC connector with 1490nm
Transmitter and 1310nm Receiver
Single + 3.3V power supply and TTL logic
interface
Bellcore GR-468 compliant
Laser class 1 product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
IEEE 802.3ah 1000BASE-BX
IEEE 802.3ah 100BASE-BX
Gigabit Ethernet/ Fast Ethernet
FTTx WDM Broadband Access
Performance
SPBD-1250B4Q1RT data link up to 10km in
9/125um single mode fiber.
Support industrial temperature operating
for
1
SPBD-1250B4Q1RT
Revision: S1
03/12/2007
www.deltaww.com
