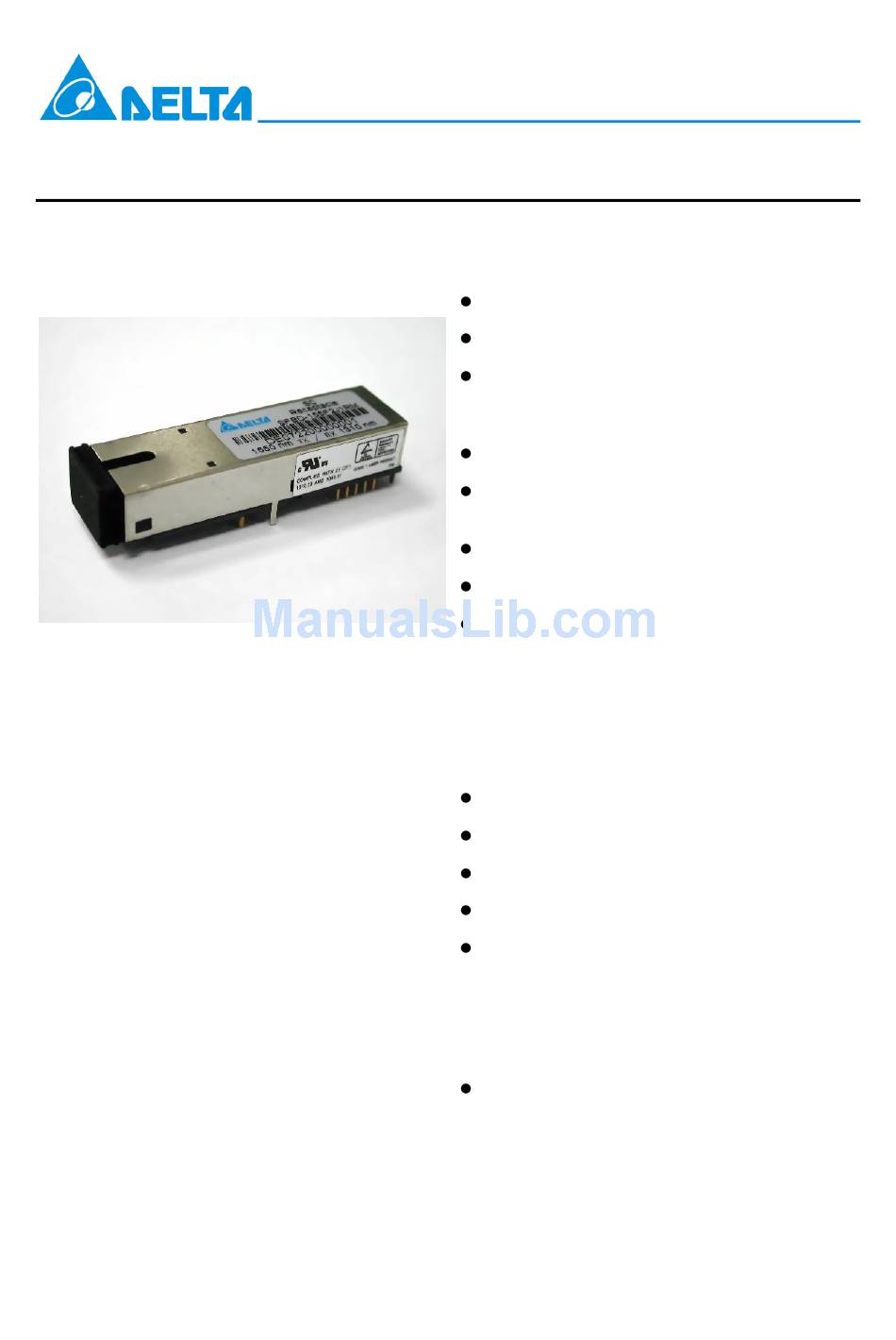

Delta Electronics SFBD-155F2J1RM Specification Sheet

Small Form Factor Bi-Directional Transceiver Module
for Fast Ethernet, ATM, SONET OC-3/SDH STM-1
Description
DELTA's SFF Bi-Directional transceiver is
designed for point-to-point Bi-Directional Optical
Network transmission.
1550nm FP laser, InGaAs PIN, Preamplifier and
WDM filter in a
sub-assembly, and it receives up to 155Mbps of
continuous data at
155Mbps of continuous data at 1550nm.
The module is contained in a 2x5 SFF
industry standard package with a SC receptacle
connector, and support LVTTL transmitter disable
input, LVPECL electrical signal Interface and
receiver signal detect output.
DELTA ELECTRONICS, INC.
The module consists
high-integrated optical
1310nm, and transmits
FEATURES
RoHS compliant
2x5 Pin SFF Package with SC Receptacle
Single Mode Fiber, Bi-Directional
Transmission with 1550nm Transmitter and
1310nm Receiver
Link Distance up to 15km
Single +3.3V power supply and PECL logic
interface
Wave Solderable and Aqueous Washable
Bellcore GR-468 compliant
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
TTC TS-1000
ITU-T G.985
IEEE 802.3ah 100BASE-BX-D/ Fast Ethernet
SONET OC-3/SDH STM-1/ ATM Network
FTTx Broadband Access System
Performance
SFBD-155F2J1RM data link up to 15km in
9/125um single mode fiber.
1
SFBD-155F2J1RM
Revision: S1
06/08/2007
