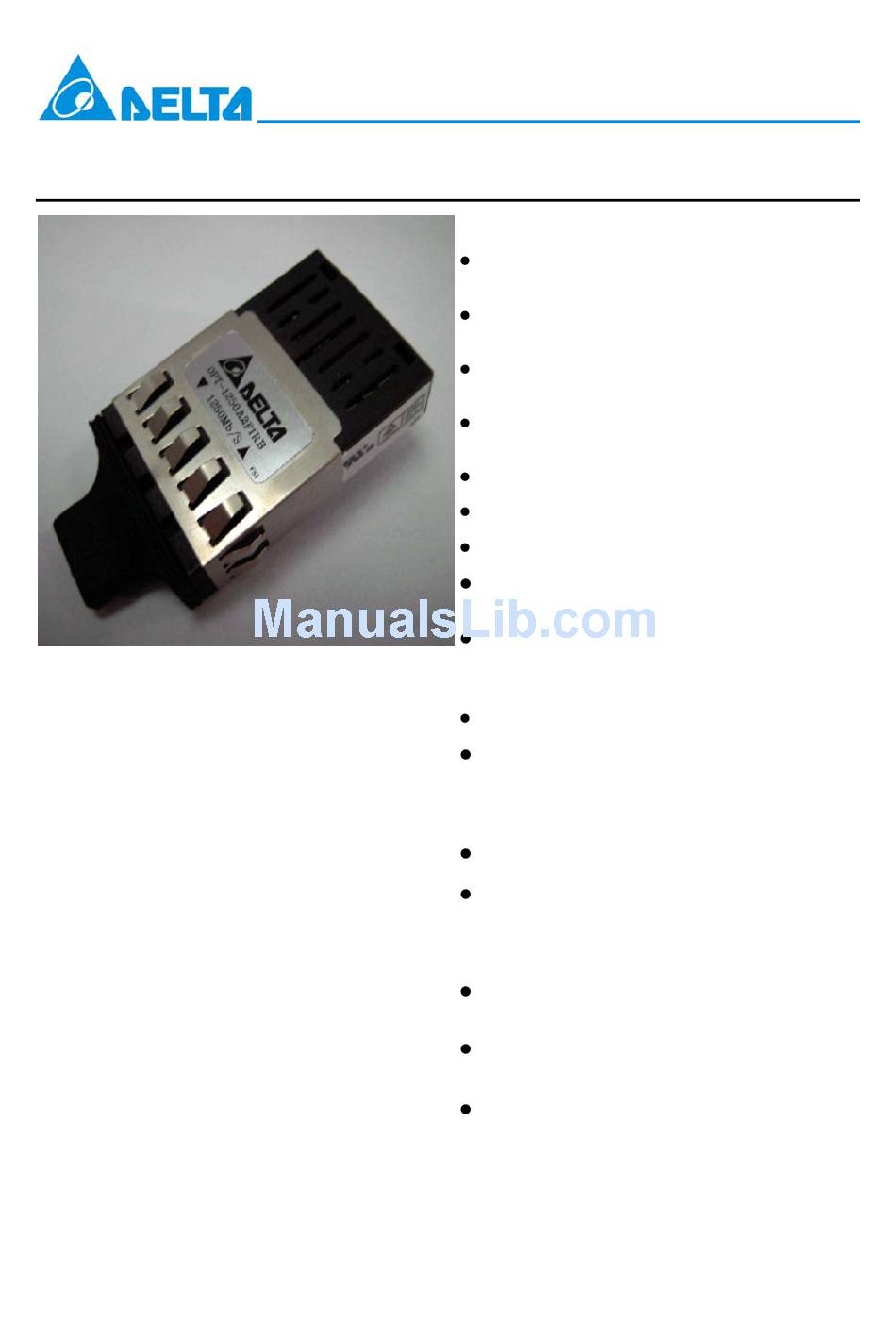

Delta Electronics OPT-1250xxxx Series Specification Sheet

Rohs compliant 1x9 sc duplex receptacle transceiver module for gigabit ethernet.
Hide thumbs

Advertisement

RoHS Compliant 1X9 SC Duplex Receptacle Transceiver Module for
Gigabit Ethernet
Description
The OPT-1250xxxx series from DELTA is a 1X9
transceiver
module
high-speed
communication
require rates of up to 1.25Gbit/sec. It is compliant
with the Gigabit Ethernet standards as well as 1x
Fiber channel standards.
The OPT-1250xxxx transceivers are provided with
the SC receptacle that is compatible with the
industry standard SC connector.
The post-amplifier of the OPT-1250xxxx also
includes a Signal Detect circuit that provides a
PECL or TTL logic-Low output when an unusable
optical signal level is detected. (see order
information)
The OPT-1250xxxx transceiver is a Class 1 eye
safety product. The optical power levels, under
normal operation, are at eye safe level.
DELTA ELECTRONICS, INC.
designed
expressly
applications
Features
Industry Standard 1 x 9 Footprint and duplex SC
Connector interface
Compliant with Specifications for IEEE 802.3z
Gigabit Ethernet
OPT-1250Bxxx compliant with the 1.0625GBd
Fiber Channel 100-SM-LC-L FC-PI Rev.13
OPT-1250Axxx compliant with the 1.0625GBd
Fiber Channel FC-PI 100-M5-SN-I Rev.13
Single +3.3V or 5V Power Supply
PECL or TTL Receiver Signal Detect Indicator
Wave Solderable and Aqueous Washable
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
RoHS Compliant per Directive 2002/95/EC.
Applications
Gigabit Ethernet/Fast Ethernet
for
that
Switched backplane applications
Performance
OPT-1250AxFxx:
850nm VCSEL, up to 500m in 50/125μm MMF
850nm VCSEL, up to 220m in 62.5/125μm
MMF
OPT-1250BxQxx:
1310nm FP laser, Data Link up to 10km in
9/125um SMF
1310nm FP laser, up to 550m in 50/125μm
MMF
1310nm FP laser, up to 550m in 62.5/125μm
MMF
1
OPT-1250xxxx Series
Jan., 2008
www.deltaww.com
/
Rev. 0H

Advertisement

Table of Contents

   Related Manuals for Delta Electronics OPT-1250xxxx Series

   Summary of Contents for Delta Electronics OPT-1250xxxx Series

  • Page 1 RoHS Compliant 1X9 SC Duplex Receptacle Transceiver Module for Gigabit Ethernet Description The OPT-1250xxxx series from DELTA is a 1X9 transceiver module designed high-speed communication require rates of up to 1.25Gbit/sec. It is compliant with the Gigabit Ethernet standards as well as 1x Fiber channel standards.
  • Page 2 HIGH level output voltage Notes: 1. For OPT-1250A1F1x, OPT-1250A4F1x, OPT-1250B2Q1x and OPT-1250B1Q1x. 2. For OPT-1250A2F2x and OPT-1250B4Q2x. 3. These are 20%~80% values 4. For OPT-1250A1F1x, OPT-1250A2F2x, OPT-1250B1Q1x and OPT-1250B2Q1x 5. For OPT-1250A4F1x and OPT-1250B4Q2x DELTA ELECTRONICS, INC. Symbol Min. Typ. SOLD SOLD Symbol Min.
  • Page 3 1. These are unfiltered 20%~80% values 2. The sensitivity is provided at a BER of 1×10 1250Mb/s, 2 -1 PRBS and ER=9dB. Mask of the eye diagram for the optical transmit signal DELTA ELECTRONICS, INC. (OPT-1250B1Q1x, OPT-1250B2Q1x, OPT-1250B4Q2x) and supply voltage, V Symbol Min.
  • Page 4 1. These are 20%~80% values 2. The sensitivity is provided at a BER of 1×10 1250Mb/s, 2 -1 PRBS and ER=9dB. Mask of the eye diagram for the optical transmit signal DELTA ELECTRONICS, INC. (OPT-1250A1F1x, OPT-1250A2F2x, OPT-1250A4F1x) and supply voltage, V Symbol Min.
  • Page 5 Pin 8 Transmitter Data In Non-inverted (LVPECL), TD (+) Transmitter Data Input Non-inverted (LVPECL), TD (+) Pin 9 Transmitter Signal Ground, GND Directly connect these pins to the ground plane. DELTA ELECTRONICS, INC. Functional description Receiver Signal Ground Receiver Data Out Non-inverted (LVPECL)
  • Page 6 R1=R3=82 ohm (3.3V),68 ohm(5V) R2=R4=130 ohm (3.3V),191 ohm (5V) R5=R6=150 ohm (3.3V),270 ohm (5V) R7=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL) R8=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL) C1=C2=C3=C4=C5=C6=C7=100 nF C8=C9=10uF L1=L2=1uH DELTA ELECTRONICS, INC. OPT-1250xxxx Series www.deltaww.com Jan., 2008 Rev. 0H...
  • Page 7 Recommend Circuit Schematic for Internal AC Coupled Transceivers R1=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL) R2=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL) C1=C2=C3= 100 nF C4=C5=10uF L1=L2=1uH DELTA ELECTRONICS, INC. OPT-1250xxxx Series www.deltaww.com Jan., 2008 Rev. 0H...
  • Page 8 OPT-1250xxxx Series Package Outline Drawing (without shielding) Package Outline Drawing (A type shielding) Jan., 2008 Rev. 0H www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 9 OPT-1250xxxx Series Package Outline Drawing (B type shielding) Package Outline Drawing (C type shielding) Jan., 2008 Rev. 0H www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 10 Electromagnetic Field Electrostatic Discharge to the Duplex LC Receptacle Electrostatic Discharge to the Electrical Pins Eye Safety Component Recognition DELTA ELECTRONICS, INC. Reference FCC Class B EN 55022 Class B (CISPR 22A) EN 61000-4-3 IEC 1000-4-3 EN 61000-4-2 IEC 1000-4-2 IEC 801.2...
  • Page 11 2: 1x9 SC AC/AC Appendix A.Document Revision Version No. Date 2006-09 2008-01 DELTA ELECTRONICS, INC. : Temperature Release “Total Supply Current”、 “TTL SD Output” 、 “PECL SD Correct Output”、 Recommend Circuit Schematic、Optical Rise/Fall time、 Spectral Width (RMS) 、 Pin Definition 、 Package Outline 、 Order...
