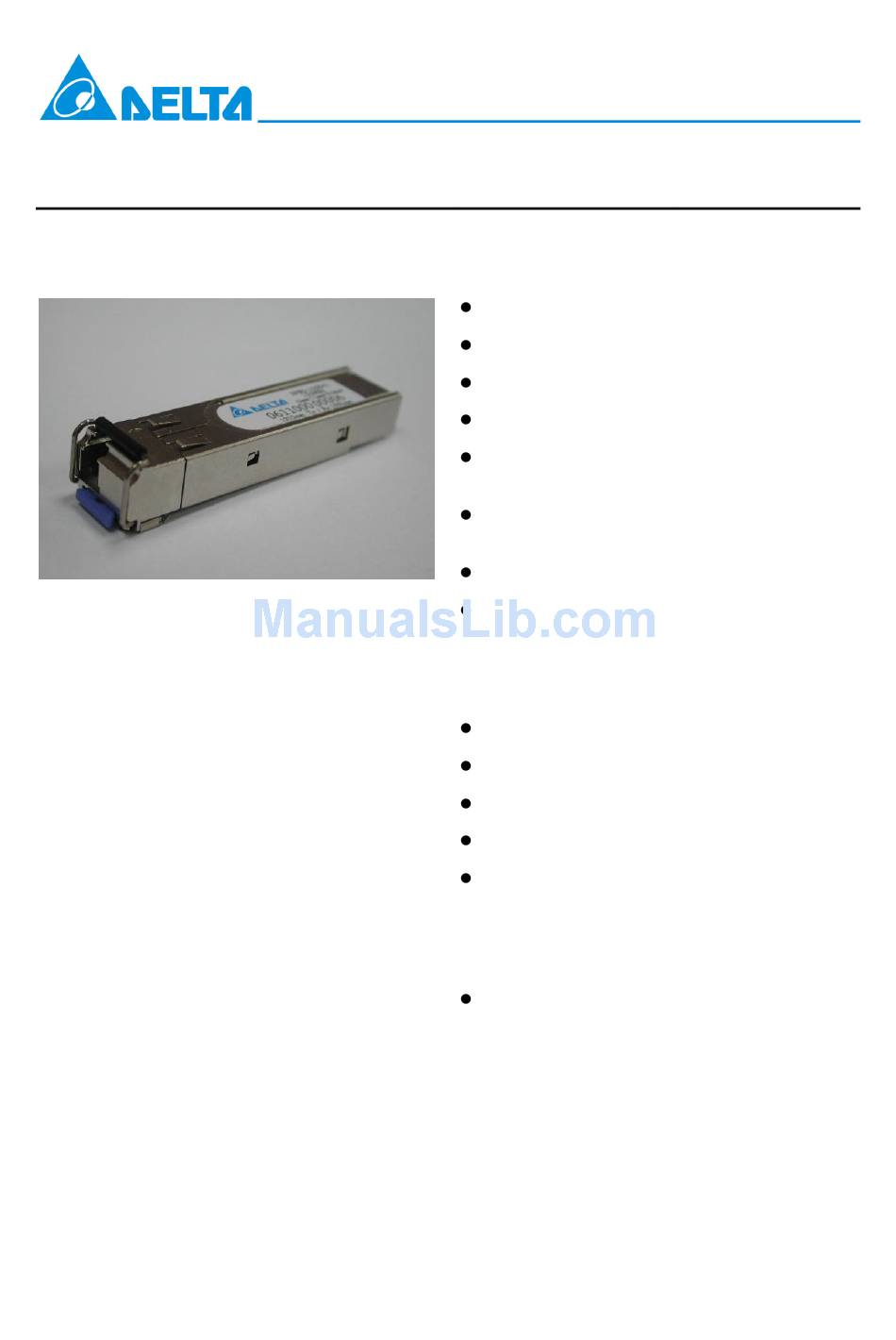

SFP Bi-Directional Transceiver Module for Fast
Ethernet, ATM, SONET OC-3/SDH STM-1
Description
The SPBD-155xxxx series are hot pluggable
3.3V Small-Form-Factor (SFP) Bi-Directional
transceiver module designed expressly for
high-speed communication applications that
require rates of up to 155Mbit/sec. It is compliant
with the Fast Ethernet, ATM, SONET OC-3/SDH
STM-1
standards,
Multisource Agreement (MSA).
The SPBD-155xxxx transceivers provide with
the LC receptacle that is compatible with the
industry standard LC connector. The transceiver
is also compatible with industry standard RFT
connector and cage. It also includes a LOS
(Loss Of Signal) circuit that provides a TTL
logic-high output when an unusable optical
signal level is detected.
The module includes 1310nm un-cool FP laser,
InGaAs PIN, Preamplifer and WDM filter in a
high-integrated optical assembly for high-density
system application. The SFP Bi-Directional
transceiver can upgrade transmission capacity
very convenient without installing new fibers.
DELTA ELECTRONICS, INC.
as
well
as
the
FEATURES
RoHS compliant
SFF-8472 MSA compliant
Simplex LC connector
1310nm Transmitter, 1550nm Receiver
Single + 3.3V power supply and TTL logic
interface
Commercial and Industrial temperature
available
Bellcore GR-468 compliant
Laser class 1 product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
TTC TS-1000
IEEE 802.3ah 100BASE-BX
SONET OC-3/SDH STM-1
SFP
FTTx WDM Broadband Access
100Base Fast Ethernet
Performance
SPBD-155E4J1RT data link up to 15km in
9/125um single mode fiber.
1
SPBD-155E4J1RT
Revision: S1
09/20/2006
www.deltaww.com
