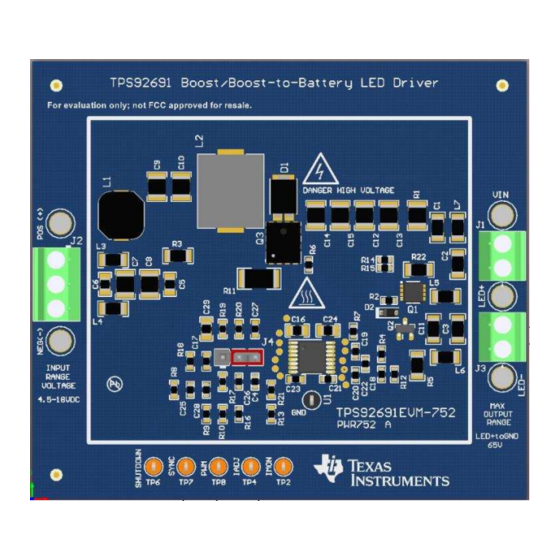

Boost and boost-to-battery led driver evaluation board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TPS92691 Boost and Boost-to-Battery LED Driver
This user's guide describes the characteristics, operation, and use of the TPS92691 boost and boost-to-
battery evaluation module (EVM). A complete schematic diagram, printed-circuit board layouts, and bill of
materials are included in this document.
...................................................................................................................
1
....................................................................................................................
2
2.1
2.2
3
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
4
.....................................................................................................................
5
6
6.1
6.2
6.3
6.4
6.5
6.6
.................................................................................................................
6.7
7
8
9
1
2
3
4
5
6
7
8
9
10
All trademarks are the property of their respective owners.
SLVUAO7 - March 2016
Submit Documentation Feedback
................................................................................................
..............................................................................................................
.......................................................................................................
................................................................................................
..........................................................................................
...........................................................................................................
............................................................................................................
..................................................................................................
..........................................................................................................
...........................................................................................................
.....................................................................................
.............................................................................................................
.....................................................................................................
......................................................................................
.............................................................................................
.....................................................................................................
.............................................................................................................
.........................................................................................................
...........................................................................................
....................................................................................
(Boost, VIN = 14 V, Number of LEDs in Series = 18, Up to 25 W)
.........................................................................................................
....................................................................................................
TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board
Copyright © 2016, Texas Instruments Incorporated
Contents
.............................................................
..................................................................
...........................................
.............................................................
List of Figures
......................................................................
.....................................................
User's Guide
SLVUAO7 - March 2016
Evaluation Board
.........................................
.............................
........................
3
3
3
3
4
4
4
5
5
5
5
5
5
6
7
8
8
8
9
9
10
11
13
14
14
16
4
7
8
8
9
10
......
10
11
11
11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPS92691EVM-752 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TPS92691EVM-752

Summary of Contents for Texas Instruments TPS92691EVM-752

  • Page 1: Table Of Contents

    ........... Typical Waveforms (Boost Configuration, VIN = 14 V, 18 LEDs) ................................Optimizing EVM Performance Based on LED String Voltage and Current ............. TPS92691EVM-752 Assembly Drawing and PCB layout ......................Bill of Materials List of Figures ......................Connection Diagram ...................
  • Page 2 Bottom Layer and Bottom Overlay (Bottom View) List of Tables ............TPS92691EVM-752 Electrical Performance Specifications ......................Bill of Materials TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board SLVUAO7 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 3: Introduction

    Flyback, based on the output LED stack voltage. Description The TPS92691EVM-752 is a fully assembled and tested boost and boost-to-battery LED driver designed to power a single string of series-connected LEDs. Accurate closed-loop LED current regulation is achieved using a low-offset current sense amplifier that is compatible with either high- or low-side current- sensing implementations.

  • Page 4: Connector Description

    Configuring for Boost or Boost-to-Battery (J1, J3) The TPS92691EVM-752 can be configured as a boost regulator or a boost-to-battery regulator simply by connecting the LED load to either connector J1 or to connector J3 as described in this section. Do not attempt to use J1 and J3 simultaneously.

  • Page 5: J4, Iadj Drive Select

    3 V and 5 V. The dimming frequency range is 100 Hz to 1 kHz. SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 6: Electrical Performance Specifications

    Electrical Performance Specifications www.ti.com Electrical Performance Specifications Table 1. TPS92691EVM-752 Electrical Performance Specifications Parameter Test Conditions Unit Input Characteristics Input voltage range Input UVLO setting Maximum switch node voltage Output Characteristics Output voltage, VOUT LED+ to LED– (Boost) LED+ to VIN (Boost-to-Battery) Output current 62.5...

  • Page 7: Schematic

    Schematic www.ti.com Schematic Figure 2 illustrates the EVM schematic. Figure 2. TPS92691EVM-752 Schematic SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 8: Performance Data And Typical Characteristic Curves

    13 LEDs 18 LEDs 350.2 349.8 349.6 349.4 Input Voltage (V) D001 Figure 4. Output LED Current vs Input Voltage TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board SLVUAO7 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 9: Temperature Characteristics

    J4. To ensure proper operation and limit temperature rise, the maximum output power should be limited to 25 W for any given LED stack voltage and LED current combination. SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 10: Pwm Dimming

    PWM test point, TP8. The PWM pin can be pulled to ground to disable switching under fault conditions. TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board SLVUAO7 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 11: Typical Waveforms (Boost Configuration, Vin = 14 V, 18 Leds)

    SS pin voltage; Time: 400 ms/div spaCh4: LED current; Time: 1 µs/div Figure 10. Overvoltage Protection Figure 9. Nominal Operation SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 12: Pwm Dimming (Duty Cycle = 4 %, Frequency = 240 Hz)

    Figure 13. PWM Dimming (Duty cycle = 96 %, Frequency = 123456781Ch2: Input voltage; Ch3: LED current; Time: 200 ms/div 240 Hz) Figure 14. Start-Stop (Warm-Crank) Transient Response TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board SLVUAO7 – March 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 13: Emi

    Figure 15. Conducted EMI Based on CISPR 25 Class 3 Limits Boost, 32 V Output, R6 = 47 Ω SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 14: Optimizing Evm Performance Based On Led String Voltage And Current

    Figure 17, and Figure 18 show the design and assembly of the TPS92691EVM-752 printed circuit board. The EVM dimensions are x = 3.05 in and y = 2.7 in. Figure 16. Assembly Drawing TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board SLVUAO7 –...

  • Page 15: Top Layer And Top Overlay (Top View)

    TPS92691EVM-752 Assembly Drawing and PCB layout www.ti.com Figure 17. Top Layer and Top Overlay (Top View) Figure 18. Bottom Layer and Bottom Overlay (Bottom View) SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback...

  • Page 16: Bill Of Materials

    Bill of Materials www.ti.com Bill of Materials Table 2 lists the TPS92691EVM-752 components list according to the schematic shown in Figure Table 2. Bill of Materials Designator Value Description Package PartNumber Manufacturer Multi-Topology LED Driver with Rail-to-Rail Current PWP0016J TPS92691QPWPRQ1...
  • Page 17 RES, 1.43 k, 1%, 0.1 W 0603 CRCW06031K43FKEA Vishay-Dale 11.8k RES, 11.8 k, 1%, 0.1 W 0603 CRCW060311K8FKEA Vishay-Dale SLVUAO7 – March 2016 TPS92691 Boost and Boost-to-Battery LED Driver Evaluation Board Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
