Introduction
The LM25085AEVAL evaluation board provides the design engineer with a fully functional buck regulator,
employing the LM25085A PFET switching controller which uses the constant on-time (COT) operating
principle. This evaluation board provides a 1V output over an input range of 4.5V to 24V. The circuit
delivers load currents to 5A, with current limit set at ≊8.2A. The board is populated with all components
except C5 and C7.
The board's specification are:
•
Input Voltage: 4.5V to 24V
•
Output Voltage: 1V
•
Maximum load current: 5A
•
Minimum load current: 0A
•
Current Limit Threshold: ≊8.2A
•
Measured Efficiency: 77.5% (V
output)
•
Nominal Switching Frequency: 200 kHz
•
Size: 3.1 in. x 1.5 in.
All trademarks are the property of their respective owners.
SNVA384B – February 2009 – Revised April 2013
Submit Documentation Feedback
AN-1933 LM25085A Evaluation Board
= 4.5V, I
= 1Amp, typical efficiency for converter providing a 1V
IN
OUT

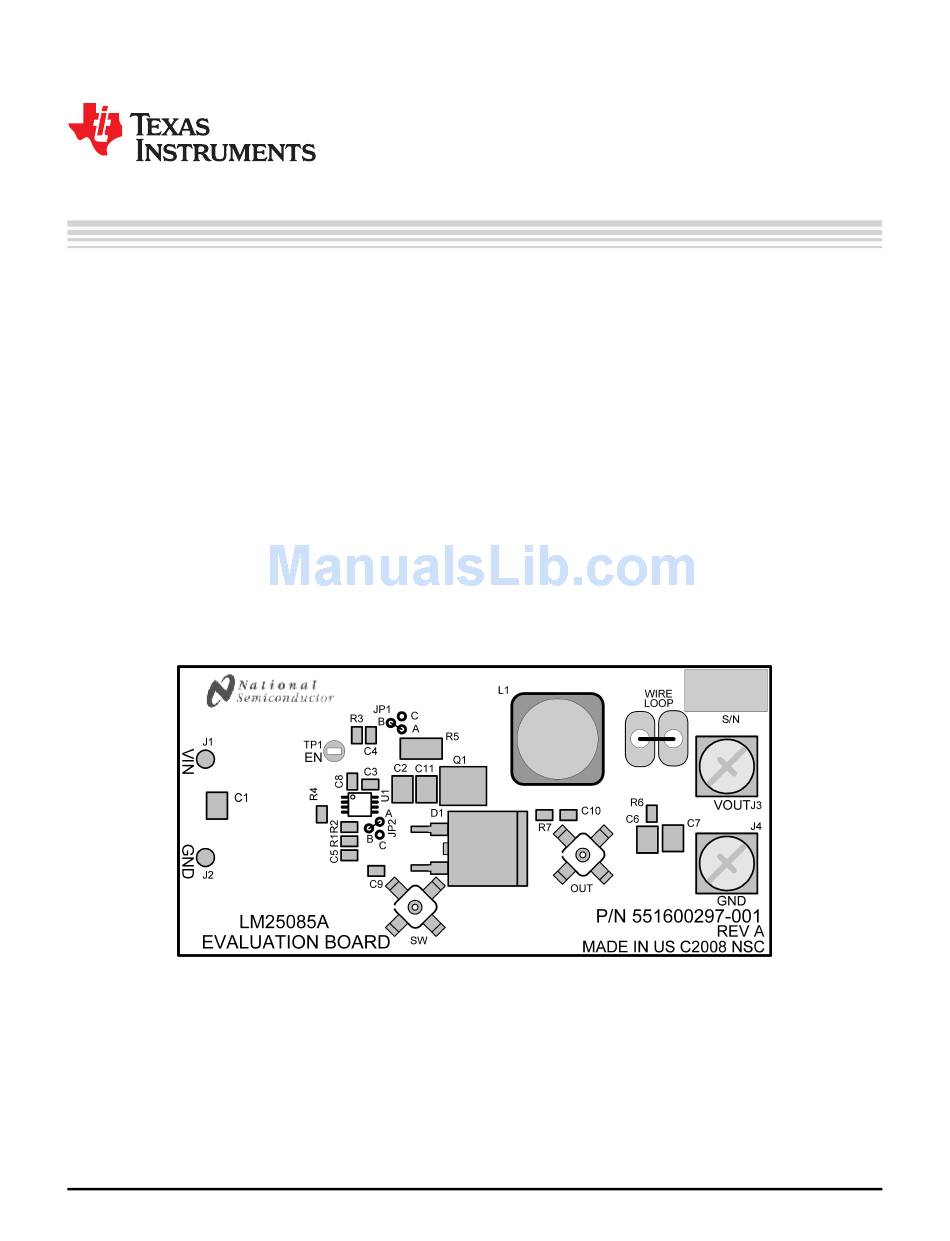

Figure 1. Evaluation Board - Top Side
Copyright © 2009–2013, Texas Instruments Incorporated
SNVA384B – February 2009 – Revised April 2013
AN-1933 LM25085A Evaluation Board
User's Guide
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments LM25085A
Summary of Contents for Texas Instruments LM25085A
- Page 1 The LM25085AEVAL evaluation board provides the design engineer with a fully functional buck regulator, employing the LM25085A PFET switching controller which uses the constant on-time (COT) operating principle. This evaluation board provides a 1V output over an input range of 4.5V to 24V. The circuit delivers load currents to 5A, with current limit set at ≊8.2A.
-
Page 2: Theory Of Operation
A current sink at the ADJ pin sets a constant voltage across R3. When the voltage across R5 exceeds the voltage across R3 the current limit comparator switches to shut off Q1, and the LM25085A forces a longer-than-normal off-time. The long off-time is a function of the input voltage (V... -
