Lenovo X1 Nano Gen 1, 20UN00FRUS, 20UN00FUUS Manual

Discover your Lenovo notebook

We are dedicated to delivering the best solution to you.
Before starting your tour, please read the following information:

• Illustrations in this documentation might look different from your product.
• Depending on the model, some optional accessories, features, software programs, and user interface instructions might not be applicable to your computer.
• Documentation content is subject to change without notice.

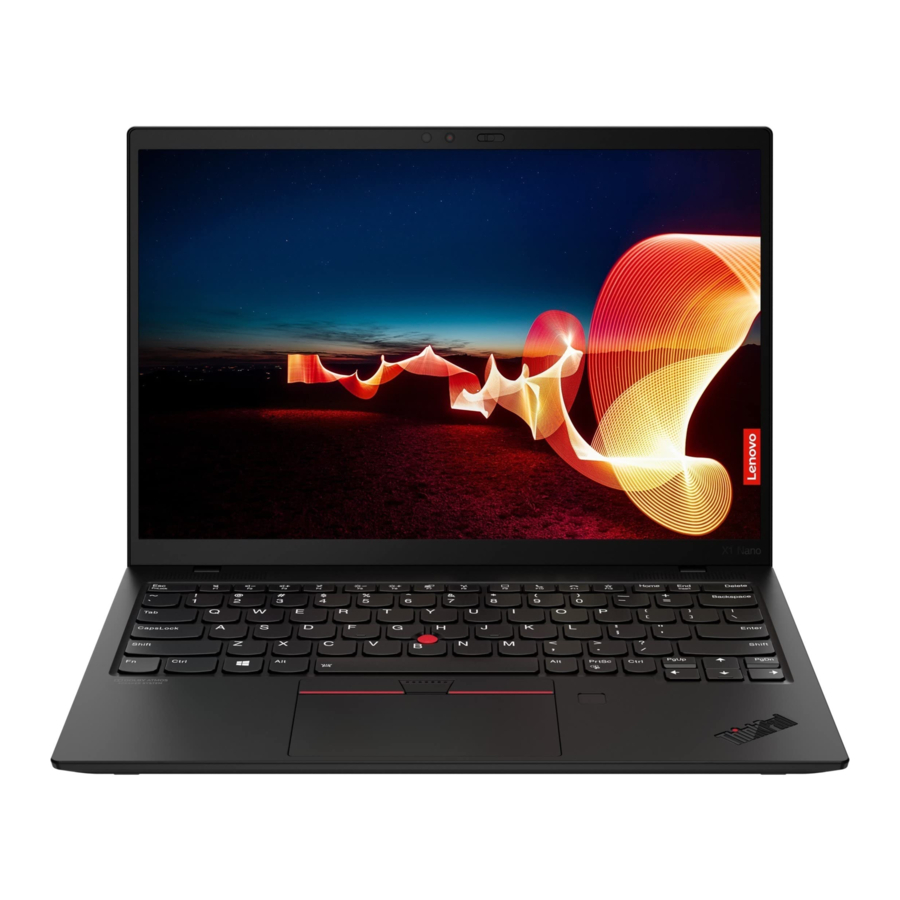

Meet your computer

Front view

	Microphone		Camera
	ThinkShutter (Camera cover)		Touch screen*
	Speaker		TrackPoint® pointing stick
	Fingerprint reader		Trackpad
	TrackPoint buttons

* for selected models

ThinkShutter
Slide ThinkShutter to cover or uncover the camera lens. It is designed to protect your privacy.

Related topics

• "Log in with your face ID (for selected models)"
• "Detect human presence (for selected models)"
• "Use the touch screen (for selected models)"
• "Use the TrackPoint pointing device"
• "Log in with your fingerprint"
• "Use the trackpad"

Side view

	Audio connector		Power connector
	Thunderbolt™ 4 connector (USB-C®)		Power button

Related topics

• "Charge the computer"
• "USB specifications"

Bottom view

1. Disconnect your computer from ac power.
2. Insert a straightened paper clip into the hole to cut off power supply temporarily.
3. Connect your computer to ac power and then turn on your computer.

Rear view

* for selected models

Related topic

• Connect to a cellular network"

Specifications
For detailed specifications of your computer, go to https://psref.lenovo.com.

USB specifications
Note: Depending on the model, some USB connectors might not be available on your computer.

Connector name	Description
USB 2.0 connector USB 3.2 connector Gen 1 USB 3.2 connector Gen 2	Connect USB-compatible devices, such as a USB keyboard, USB mouse, USB storage device, or USB printer.
USB-C (3.2 Gen 1) connector USB-C (3.2 Gen 2) connector USB-C (Thunderbolt 3) connector USB-C (Thunderbolt 4) connector	Charge USB-C compatible devices with the output voltage and current of 5 V and 1.5 A. Connect to an external display: USB-C to VGA: up to 1920 x 1200 pixels, 60 Hz USB-C to DP: up to 5120 x 3200 pixels, 60 Hz Connect to USB-C accessories to help expand your computer functionality. To purchase USB-C accessories, go tohttps:// www.lenovo.com/accessories.

Statement on USB transfer rate
Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and will be slower than the data rate listed below for each corresponding device.

Get started with your computer

Access networks
This section helps you connect to a wireless or wired network.

Connect to Wi-Fi networks
Click the network icon in the Windows^® notification area, and then select a network for connection. Provide required information, if needed.

Connect to the wired Ethernet
To connect your computer to a local network, you need a Lenovo USB-C to Ethernet Adapter. Lenovo USB- C to Ethernet Adapter is available as an option and shipped with some computer models. You can purchase one from Lenovo at https://www.lenovo.com/accessories.

Connect to a cellular network
If your computer has a wireless wide area network (WAN) card and a nano-SIM card installed, you can connect to a cellular data network and get online everywhere.
Note: The cellular service is provided by authorized mobile service carriers in some countries or regions. You must have a cellular plan from a service carrier to connect to the cellular network.
To establish a cellular connection:

1. Turn off the computer.
2. Locate the nano-SIM card slot and insert the nano-SIM card as shown. Note the orientation of the card and ensure that it is seated correctly.

3. Turn on the computer.
4. Click the network icon, and then select the cellular network icon from the list. Provide required information, if needed.

Note: The USB-C compatible device connected to the Thunderbolt 4 connector (USB-C) might influence with the wireless features. If your computer cannot be connected to the cellular network, or if your location cannot be pinpointed through the GPS function, detach the device from the Thunderbolt 4 connector (USB- C).

Turn on the Airplane mode
When the Airplane mode is enabled, all wireless features are disabled.

1. Click the action center icon in the Windows notification area.
2. Click Airplane mode to turn on the Airplane mode.

Interact with your computer
Your computer provides you various ways to navigate the screen.

Use the keyboard shortcuts
The special keys on the keyboard help you work more effectively.
https://support.lenovo.com/us/en/videos/vid500145

Use the TrackPoint pointing device
The TrackPoint pointing device enables you to perform all the functions of a traditional mouse, such as pointing, clicking, and scrolling.

Use the TrackPoint pointing device

TrackPoint pointing stick
Use your finger to apply pressure to the pointing-stick nonslip cap in any direction parallel to the keyboard.
The pointer on the screen moves accordingly. The higher the pressure applied, the faster the pointer moves.

TrackPoint buttons
The left-click button and right-click button correspond to the left and right buttons on a traditional mouse. Press and hold the dotted middle button while using your finger to applying pressure to the pointing stick in the vertical or horizontal direction. Then, you can scroll through the document, Web site, or apps.

Disable the TrackPoint pointing device
The TrackPoint pointing device is active by default. To disable the device:

1. Open the Start menu, and then click Settings ➙ Devices ➙ Mouse.
2. Follow the on-screen instructions to disable TrackPoint.

Replace the pointing-stick nonslip cap
Note: Ensure that the new cap has grooves .

Use the trackpad
You can use the trackpad to perform all the pointing, clicking, and scrolling functions of a traditional mouse. Use the trackpad

Use the touch gestures

Tap once to select or open an item.	Tap twice quickly to display a shortcut menu.
Two-finger zoom in or zoom out.	Scroll through items.
Open the task view to see all open windows.	Show the desktop.

Notes:

• When using two or more fingers, ensure that you position your fingers slightly apart.
• Some gestures are not available if the last action was done from the TrackPoint pointing device.
• Some gestures are only available when you are using certain apps.
• If the trackpad surface is stained with oil, turn off the computer first. Then, gently wipe the trackpad surface with a soft and lint-free cloth moistened with lukewarm water or computer cleaner.
  For more gestures, see the help information of the pointing device.

Disable the trackpad
The trackpad is active by default. To disable the device:

1. Open the Start menu, and then click Settings ➙ Devices ➙ Touchpad.
2. In the Touchpad section, turn off the Touchpad control.

Use the touch screen (for selected models)
If your computer display supports the multi-touch function, you can navigate the screen with simple touch gestures.
Note: Some gestures might not be available when you are using certain apps.

Maintenance tips:

• Turn off the computer before cleaning the touch screen.
• Use a dry, soft, and lint-free cloth or a piece of absorbent cotton to remove fingerprints or dust from the touch screen. Do not apply solvents to the cloth.
• The touch screen is a glass panel covered with a plastic film. Do not apply pressure or place any metallic object on the screen, which might damage the touch panel or cause it to malfunction.
• Do not use fingernails, gloved fingers, or inanimate objects for input on the screen.
• Regularly calibrate the accuracy of the finger input to avoid a discrepancy.

Connect to an external display
If your computer cannot detect the external display, right-click a blank area on the desktop and select display settings. Then follow the on-screen instructions to detect the external display.

Connect to a wired display

Supported resolution
When you connect the external display to the Thunderbolt 4 connector (USB-C), the supported maximum resolution is up to 5120 x 3200 pixels, 60 Hz.

Connect to a wireless display
To use a wireless display, ensure that both your computer and the external display support the Miracast^® feature.
Press and then select a wireless display to connect with.

Set the display mode
Press and then select a display mode of your preference.

Change display settings

1. Right-click a blank area on the desktop and select display settings.
2. Select the display that you want to configure and change display settings of your preference.

You can change the settings for both the computer display and the external display. For example, you can define which one is the main display and which one is the secondary display. You also can change the resolution and orientation.

Explore your computer

Lenovo apps
This section provides introduction to the Vantage and Lenovo Quick Clean apps.

The Vantage app
The preinstalled Vantage app is a customized one-stop solution to help you maintain your computer with automated updates and fixes, configure hardware settings, and get personalized support.
To access the Vantage app, type Vantage in the Windows search box.

Key features
The Vantage app enables you to:

• Know the device status easily and customize device settings.
• Download and install UEFI BIOS, firmware, and driver updates to keep your computer up-to-date.
• Monitor your computer health, and secure your computer against outside threats.
• Scan your computer hardware and diagnose hardware problems.
• Look up warranty status (online).
• AccessUser Guide and helpful articles.

Notes:

• The available features vary depending on the computer model.
• The Vantage app makes periodic updates of the features to keep improving your experience with your computer. The description of features might be different from that on your actual user interface.

Lenovo Quick Clean

Depending on the model, your computer might support the Lenovo Quick Clean feature. The preinstalled Lenovo Quick Clean enables you to temporarily disable the keyboard, screen, trackpad, and TrackPoint pointing device for cleaning.
To access Lenovo Quick Clean, do one of the following:

• Type Lenovo Quick Clean in the Windows search box.
• Press Fn and the right Shift key at the same time.

To download the latest version of Lenovo Quick Clean, go to https://pcsupport.lenovo.com.

Smart features (for selected models)
Your computer might be preinstalled with Glance by Mirametrix^®. Glance can capture your head movement through camera and makes your computer smarter and more efficient.

Access Glance by Mirametrix
Type Glance in the Windows search box and then press Enter.
Note: If Glance is uninstalled, you can request it through https://support.lenovo.com/contactus.

Explore key features
Depending on the model, some features might not be available on your computer.

• Protect privacy
  • Presence Detection: Keep your computer awake when in use and automatically lock the computer when your head moves out of the camera range.

  • Privacy Alert: When a shoulder surfer is detected, an alert icon appears on your computer screen.

  • Privacy Guard: When a shoulder surfer is detected, your screen is blurred. Press Alt+F2 to cancel the blur effect.

  • Smart Display: Blur screens you are not looking at. If you are not facing any screen, all screens are blurred. Press Alt+F2 to cancel the blur effect.

    Note: If your computer comes with an ePrivacy screen, it can work with Glance to achieve better privacy protection. For details, go to https://support.lenovo.com/us/en/videos/vid500144.
• Improve productivity
  • Snap Window: When you select a window on one screen and turn your face to another, the window automatically snaps to the top center of the screen you are facing.

  • Smart Pointer: Relocate the pointer to the screen you are facing. When the pointer moves from one screen to another, it is temporarily drawn large.

    Note: Snap Window and Smart Pointer only work when your computer is connected to external displays. Ensure that external displays are placed at the same height of your computer.
• Promote digital wellness
  • Posture check: Remind you to adjust your posture once you hunch toward the screen.
  • 20/20/20 Alert: Remind you to look away from the screen and relax your eyes for 20 seconds every 20 minutes.


Secure your computer and information

Log in with your fingerprint
Enroll your fingerprints and unlock computer by scanning your fingerprints on the fingerprint reader.

1. Type Sign-in options in the Windows search box and then press Enter.
2. Select the fingerprint setting and then follow the on-screen instruction to enroll your fingerprint.
   Note: It is recommended that you put your finger at the middle of the fingerprint reader during enrollment and enroll more than one fingerprint in case of any injuries to your fingers. After the enrollment, the fingerprints are associated with the Windows password automatically.
3. Log in with your fingerprint.


Associate your fingerprints with UEFI BIOS passwords
You can associate your fingerprints with your power-on password and hard disk password. See "Associate your fingerprints with passwords (for selected models)".

Maintenance tips:

• Do not scratch the surface of the reader with anything hard.
• Do not use or touch the reader with a wet, dirty, wrinkled, or injured finger.

Log in with your face ID (for selected models)
For models come with a webcam privacy shutter, slide the webcam privacy shutter to uncover the camera lens before using the Windows Hello face recognition.
Create your face ID and unlock your computer by scanning your face:

1. Type Sign-in options in the Windows search box and then press Enter.
2. Select the face ID setting and then follow the on-screen instruction to create your face ID.

Detect human presence (for selected models)
Your computer supports the human presence detection function.

• Wake up the computer when you are approaching it. With a face ID created, your computer can recognize your face and log in to the system automatically. You need to face the camera and be at most 1.4 meters (4.6 feet) from the computer. The function does not work when your computer is in hibernation mode or has been turned off.
• Dim the display and lock the computer when you are leaving. The function does not work if you set the power options to never turn off the display.


The human presence sensor is enabled by default. To change the settings:

• Open the Vantage app, and then click Device ➙ Smart Assist to turn on or turn off the User Presence Sensing switch. Customize the Zero Touch Login and Zero Touch Lock settings according to your preference.
• Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu. Select Security ➙ Intelligent Security to customize detailed settings.

Notes:

• If the Airplane mode is enabled, human presence detection is disabled.
• Your computer uses a human presence sensor to detect your presence and the IR camera to recognize your face. Lenovo does not collect any personal data.
• For some countries or regions, the human presence sensor is disabled according to local regulations.

Protect data against power loss (for selected models)
NVMe (Non-Volatile Memory express) M.2 solid-state drive features the Lenovo-unique PLP (Power Loss Protection) function to avoid data loss or damage. If your computer is not responding and you might have to shut down your computer by pressing and holding the power button for several seconds. In this case, the PLP function enables your computer data to be saved timely. However, there is no guarantee that all data is saved in any situation. To check the type of your M.2 solid-state drive:

1. Restart the computer. When the logo screen is displayed, press F10 to enter the Lenovo diagnostics window.
2. On the TOOLS tab, select SYSTEM INFORMATION ➙ STORAGE using the arrow keys.
3. Locate the Device Type section to check the information

UEFI BIOS passwords
You can set passwords in UEFI (Unified Extensible Firmware Interface) BIOS (Basic Input/Output System) to strengthen the security of your computer.

Password types
You can set a power-on password, supervisor password, system management password, or hard disk password in UEFI BIOS to prevent unauthorized access to your computer. However, you are not prompted to enter any UEFI BIOS password when your computer resumes from sleep mode.

Power-on password
If you set a power-on password, a window is displayed on the screen when you turn on the computer. Enter the correct password to use the computer.

Supervisor password
The supervisor password protects the system information stored in UEFI BIOS. When entering the UEFI BIOS menu, enter the correct supervisor password in the window prompted. You also can press Enter to skip the password prompt. However, you cannot change most of the system configuration options in UEFI BIOS.
If you have set both the supervisor password and power-on password, you can use the supervisor password to access your computer when you turn it on. The supervisor password overrides the power-on password.

System management password
The system management password can also protect the system information stored in UEFI BIOS like a supervisor password, but it has lower authority by default. The system management password can be set through the UEFI BIOS menu or through Windows Management Instrumentation (WMI) with the Lenovo client-management interface.
You can enable the system management password to have the same authority as the supervisor password to control security-related features. To customize the authority of the system management password through the UEFI BIOS menu:

1. Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.
2. Select Security ➙ Password ➙ System Management Password Access Control.
3. Follow the on-screen instructions.

If you have set both the supervisor password and the system management password, the supervisor password overrides the system management password. If you have set both the system management password and the power-on password, the system management password overrides the power-on password.

Hard disk passwords
The hard disk password prevents unauthorized access to the data on the storage drive. When a hard disk password is set, you are prompted to type a correct password each time you try to access the storage drive.

• User hard disk password only
  When a user hard disk password is set without a master hard disk password, the user must enter the user hard disk password to access files and applications on the storage drive.
• Master hard disk password + User hard disk password
  The master hard disk password is set and used by a system administrator. It enables the administrator to access any storage drive in a system or any computer connected in the same network. The administrator can also assign a user hard disk password for each computer in the network. The user of the computer can change the user hard disk password as desired, but only the administrator can remove the user hard disk password.
  When prompted to enter a hard disk password, press F1 to switch between the master hard disk password and user hard disk password.

Notes: The hard disk password is not available in the following situations:

• A Trusted Computing Group (TCG) Opal-compliant storage drive and a TCG Opal management software program are installed in the computer, and the TCG Opal management software program is activated.
• An eDrive storage drive is installed in the computer preinstalled with the Windows operating system.

Set, change, or remove a password
Before you start, print these instructions.

1. Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.
2. Select Security ➙ Password by using the arrow keys.
3. Select the password type. Then, follow the on-screen instructions to set, change, or remove a password.

You should record all your passwords and store them in a safe place. If you forget any of your passwords, any potential repair actions required are not covered under warranty.

What to do if you forget your power-on password
If you forget your power-on password, do the following to remove the power-on password:

• If you have set a supervisor password or a system management password and remember it:
  1. Restart the computer. When the logo screen is displayed, immediately press F1.
  2. Type the supervisor password or the system management password to enter the UEFI BIOS menu.
  3. Select Security ➙ Password ➙ Power-On Password by using the arrow keys.
  4. Type the current supervisor password or the system management password in the Enter Current Password field. Then, leave the Enter New Password field blank, and press Enter twice.
  5. In the Changes have been saved window, press Enter.
  6. Press F10 to save changes and exit the UEFI BIOS menu.
• If you have not set a supervisor password or a system management password, contact a Lenovo authorized service provider to have the power-on password removed.
  What to do if you forget your system management password
  If you forget your system management password, do the following to remove the system management password:
• If you have set a supervisor password and remember it:
  1. Restart the computer. When the logo screen is displayed, immediately press F1.
  2. Type the supervisor password to enter the UEFI BIOS menu.
  3. Select Security ➙ Password ➙ System Management Password by using the arrow keys.
  4. Type the current supervisor password in the Enter Current Password field. Then, leave the Enter New Password field blank, and press Enter twice.
  5. In the Changes have been saved window, press Enter.
  6. Press F10 to save changes and exit the UEFI BIOS menu.
• If you have not set a supervisor password, contact a Lenovo authorized service provider to have the system management password removed.

What to do if you forget your hard disk password
If you forget your user hard disk password or both user and master hard disk passwords, there is no service procedure to remove the password or recover data from the storage drive. You can contact a Lenovo authorized service provider to have the storage drive replaced. A fee will be charged for parts and service. If the storage drive is a CRU (Customer Replaceable Unit), you can also contact Lenovo to purchase a new storage drive to replace the old one by yourself. To check whether the storage drive is a CRU and the relevant replacement procedure, see Chapter "CRU replacement".

What to do if you forget your supervisor password
If you forget your supervisor password, there is no service procedure to remove the password. You can contact a Lenovo authorized service provider to have the system board replaced. A fee will be charged for parts and service.

Associate your fingerprints with passwords (for selected models)
Do the following to associate your fingerprints with the power-on password and hard disk password:

1. Turn off and then turn on the computer.
2. When prompted, scan your finger on the fingerprint reader.
3. Enter your power-on password, hard disk password, or both as required. The association is established.
   When you start the computer again, you can use your fingerprints to log in to the computer without entering your Windows password, power-on password, or hard disk password. To change settings, press F1 to enter the UEFI BIOS menu, and then select Security ➙ Fingerprint.
   Attention: If you always use your fingerprint to log in to the computer, you might forget your passwords. Write down your passwords, and keep them in a safe place.

Configure advanced settings

UEFI BIOS
UEFI BIOS is the first program that the computer runs. When the computer turns on, UEFI BIOS performs a self test to make sure that various devices in the computer are functioning.

Enter the UEFI BIOS menu
Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.

Navigate in the UEFI BIOS interface
Attention: The default configurations are already optimized for you in boldface. Improper change of the configurations might cause unexpected results.
You can navigate in the UEFI BIOS interface by pressing the following keys:

• F1: General help
• F9: Setup defaults
• F10: Save and exit
• F5 / F6: Change boot priority order
• ↑↓: Move keyboard focus
• ← →: Select / Switch menu
• PgUp / PgDn: Select / Scroll page
• Esc: Back / Close dialog
• Enter: Select / Open submenu

Set the system date and time

1. Restart the computer. When the logo screen is displayed, press F1.
2. Select Date/Time and set the system date and time as desired.
3. Press F10 to save changes and exit.

Change the startup sequence

1. Restart the computer. When the logo screen is displayed, press F1.
2. Select Startup ➙ Boot. Then, press Enter. The default device order list is displayed.
   Note: No bootable device is displayed if the computer cannot start from any devices or the operating system cannot be found.
3. Set the startup sequence as desired.
4. Press F10 to save the changes and exit.

To change the startup sequence temporarily:

1. Restart the computer. When the logo screen is displayed, press F12.
2. Select the device that you want the computer to start from and press Enter.

Update UEFI BIOS
When you install a new program, device driver, or hardware component, you might need to update UEFI BIOS.
Download and install the latest UEFI BIOS update package by one of the following methods:

• Open the Vantage app to check the available update packages. If the latest UEFI BIOS update package is available, follow the on-screen instructions to download and install the package.
• Go tohttps://pcsupport.lenovo.com and select the entry for your computer. Then, follow the on-screen instructions to download and install the latest UEFI BIOS update package.
  To know more about UEFI BIOS, visit Knowledge Base of your computer at https://pcsupport.lenovo.com.

Install Windows and drivers
This section provides instructions on installing a Windows operating system and device drivers.

Install a Windows operating system
Microsoft constantly makes updates to the Windows operating system. Before installing a particular Windows version, check the compatibility list for the Windows version. For details, go to https://support.lenovo.com/us/en/solutions/windows-support.
Attention:

• It is recommended that you update your operating system through official channels. Any unofficial update might cause security risks.
• The process of installing a new operating system deletes all the data on your internal storage drive, including the data stored in a hidden folder.

1. If you are using the Windows BitLocker Drive Encryption feature and your computer has a Trusted Platform Module, ensure that you have disabled the feature.
2. Ensure that the security chip is set to Active.
   1. Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.
   2. Select Security ➙ Security Chip and press Enter. The Security Chip submenu opens.
   3. Ensure that the security chip for TPM 2.0 is set to Active.
   4. Press F10 to save the settings and exit.
3. Connect the drive that contains the operating system installation program to the computer.
4. Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.
5. Select Startup ➙ Boot to display the Boot Priority Order submenu.
6. Select the drive that contains the operating system installation program, for example, USB HDD. Then, press Esc.
   Attention: After you change the startup sequence, ensure that you select the correct device during a copy, a save, or a format operation. If you select the wrong device, the data on that device might be erased or overwritten.
7. Select Restart and ensure that OS Optimized Defaults is enabled. Then, press F10 to save the settings and exit.
8. Follow the on-screen instructions to install the device drivers and necessary programs.
9. After installing the device drivers, apply Windows Update to get the latest updates, for example the security patches.

Install device drivers
You should download the latest driver for a component when you notice poor performance from that component or when you added a component. This action might eliminate the driver as the potential cause of a problem. Download and install the latest driver by one of the following methods:

• Open the Vantage app to check the available update packages. Select the update packages you want, and then follow the on-screen instructions to download and install the packages.
• Go tohttps://pcsupport.lenovo.com and select the entry for your computer. Then, follow the on-screen instructions to download and install necessary drivers and software.

CRU replacement

Customer Replaceable Units (CRUs) are parts that can be upgraded or replaced by the customer. The computers contain the following types of CRUs:

• Self-service CRUs: Refer to parts that can be installed or replaced easily by customer themselves or by trained service technicians at an additional cost.
• Optional-service CRUs: Refer to parts that can be installed or replaced by customers with a greater skill level. Trained service technicians can also provide service to install or replace the parts under the type of warranty designated for the customer's machine.
  If you intend on installing a CRU, Lenovo will ship the CRU to you. CRU information and replacement instructions are shipped with your product and are available from Lenovo at any time upon request. You might be required to return the defective part that is replaced by the CRU. When return is required:

1. return instructions, a prepaid shipping label, and a container will be included with the replacement CRU; and
2. you might be charged for the replacement CRU if Lenovo does not receive the defective CRU within thirty (30) days of your receipt of the replacement CRU. For full details, see the Lenovo Limited Warranty documentation at https://www.lenovo.com/warranty/llw_02.

CRU list
The following is a list of CRUs of your computer.

Self-service CRUs

• ac power adapter
• Base cover assembly
• Nano-SIM-card tray*
• Power cord
• 2242 M.2 solid-state drive
• 2242 M.2 solid-state drive bracket

* for selected models

Note: Replacement of any parts not listed above, including the built-in rechargeable battery, must be done by a Lenovo-authorized repair facility or technician. Go to https://support.lenovo.com/partnerlocation for more information.

Disable Fast Startup and the built-in battery
Before replacing any CRU, ensure that you disable Fast Startup first and then disable the built-in battery.
To disable Fast Startup:

1. Go to Control Panel and view by Large icons or Small icons.
2. Click Power Options, and then click Choose what the power buttons do on the left pane.
3. Click Change settings that are currently unavailable at the top.
4. If prompted by User Account Control (UAC), click Yes.
5. Clear the Turn on fast startup check box, and then click Save changes.

To disable the built-in battery:

1. Restart your computer. When the logo screen is displayed, immediately press F1 to enter the UEFI BIOS menu.
2. Select Config ➙ Power. The Power submenu is displayed.
3. Select Disable Built-in Battery and press Enter.
4. Select Yes in the Setup Confirmation window. The built-in battery is disabled and the computer turns off automatically. Wait three to five minutes to let the computer cool.

Replace a CRU
Follow the replacement procedure to replace a CRU.

Base cover assembly
Prerequisite
Before you start, read "Important safety information" and print the following instructions.
Note: Do not remove the base cover assembly when your computer is connected to ac power.

For access, do the following:

1. Disable the built-in battery. See "Disable Fast Startup and the built-in battery".
2. Turn off the computer and disconnect the computer from ac power and all connected cables.
3. Close the computer display and turn over the computer.

Removal procedure

Installation procedure

Troubleshooting
If the computer does not start up after you reinstall the base cover assembly, disconnect the ac power adapter and then reconnect it to the computer.

2242 M.2 solid-state drive
Prerequisite
Before you start, read Appendix A "Important safety information" and print the following instructions.
Attention: If you replace a M.2 solid-state drive, you might need to install a new operating system. For details on how to install a new operating system, see "Install Windows and drivers".
The M.2 solid-state drive is sensitive. Inappropriate handling might cause damage and permanent loss of data. When handling the M.2 solid-state drive, observe the following guidelines:

• Replace the M.2 solid-state drive only for upgrade or repair. The M.2 solid-state drive is not designed for frequent changes or replacement.
• Before replacing the M.2 solid-state drive, make a backup copy of all the data that you want to keep.
• Do not apply pressure to the M.2 solid-state drive.
• Do not touch the contact edge or circuit board of the M.2 solid-state drive. Otherwise, the M.2 solid-state drive might get damaged.
• Do not make the M.2 solid-state drive subject to physical shocks or vibration. Put the M.2 solid-state drive on a soft material, such as cloth, to absorb physical shocks.

For access, do the following:

1. Disable the built-in battery. See "Disable Fast Startup and the built-in battery".
2. Turn off the computer and disconnect the computer from ac power and all connected cables.
3. Close the computer display and turn over the computer.
4. Remove the base cover assembly. See "Base cover assembly".

Removal procedure

Installation procedure
Note: Install the M.2 solid-state drive bracket in the orientation as shown.

Frequently asked questions

How do I access Control Panel?	Type the Control Panel in the Windows search box and then press Enter.
How do I turn off my computer?	Open the Start menu and click Power. Then, click Shut down.
How do I partition my storage drive?	https://support.lenovo.com/solutions/ht503851
What do I do if my computer stops responding	Press and hold the power button until the computer turns off. Then, restart the computer. If step 1 does not work: For models with an emergency reset hole: Insert a straightened paper clip into the emergency reset hole to cut off power supply temporarily. Then, restart the computer with ac power connected. For models without an emergency reset hole: For models with the removable battery, remove the removable battery and disconnect all power sources. Then, reconnect to ac power and restart the computer. For models with the built-in battery, disconnect all power sources. Press and hold the power button for about seven seconds. Then, reconnect to ac power and restart the computer.
What do I do if I spill liquid on the computer?	Carefully unplug the ac power adapter and turn off the computer immediately. The more quickly you stop the current from passing through the computer the more likely you will reduce damage from short circuits. Attention: Although you might lose some data or work by turning off the computer immediately, leaving the computer on might make your computer unusable. Do not try to drain out the liquid by turning over the computer. If your computer has keyboard drainage holes on the bottom, the liquid will be drained out through the holes. Wait until you are certain that all the liquid is dry before turning on your computer.
How do I enter the UEFI BIOS menu?	Restart the computer. When the logo screen is displayed, press F1 to enter the UEFI BIOS menu.
Where can I get the latest device drivers and UEFI BIOS?	From the Vantage app. See "Install Windows and drivers" and "Update UEFI BIOS". Download from Lenovo Support Web site at https://pcsupport.lenovo.com.

Error messages
If you see a message that is not included in the following table, record the error message first, then shut down the computer and call Lenovo for help. See "Lenovo Customer Support Center".

Beep errors
Lenovo SmartBeep technology enables you to decode beep errors with your smartphone when a black screen occurs with beeps from your computer. To decode the beep error with Lenovo SmartBeep technology:

1. Go tohttps://support.lenovo.com/smartbeep or scan the following QR Code.

2. Download the proper diagnostic app and install it on your smartphone.
3. Run the diagnostic app and place the smartphone near the computer.
4. Press Fn on your computer to emit the beep again. The diagnostic app decodes the beep error and shows possible solutions on the smartphone.
   Note: Do not attempt to service a product yourself unless instructed to do so by the Customer Support Center or product documentation. Only use a Lenovo-authorized service provider to repair your product.

Self-help resources
Use the following self-help resources to learn more about the computer and troubleshoot problems.

Windows label
Your computer might have a Windows Genuine Microsoft label affixed to its cover depending on the following factors:

• Your geographic location
• Edition of Windows that is preinstalled
  Go to https://www.microsoft.com/en-us/howtotell/Hardware.aspx for illustrations of the various types of Genuine Microsoft labels.
• In the People's Republic of China, the Genuine Microsoft label is required on all computer models preinstalled with any edition of the Windows operating system.
• In other countries and regions, the Genuine Microsoft label is required only on computer models licensed for Windows Pro editions.
  The absence of a Genuine Microsoft label does not indicate that the preinstalled Windows version is not genuine. For details on how to tell whether your preinstalled Windows product is genuine, refer to the information provided by Microsoft at https://www.microsoft.com/en-us/howtotell/default.aspx.
  There are no external, visual indicators of the Product ID or Windows version for which the computer is licensed. Instead, the Product ID is recorded in the computer firmware. Whenever a Windows product is installed, the installation program checks the computer firmware for a valid, matching Product ID to complete the activation.
  In some cases, an earlier Windows version might be preinstalled under the terms of the Windows Pro edition license downgrade rights.

Call Lenovo
If you have tried to correct the problem yourself and still need help, you can call Lenovo Customer Support Center.

Before you contact Lenovo
Prepare the following before you contact Lenovo:

1. Record the problem symptoms and details:
   • What is the problem? Is it continuous or intermittent?
   • Any error message or error code?
   • What operating system are you using? Which version?
   • Which software applications were running at the time of the problem?
   • Can the problem be reproduced? If so, how?
2. Record the system information:
   • Product name
   • Machine type and serial number
     The following illustration shows where to find the machine type and serial number of your computer.


Lenovo Customer Support Center
During the warranty period, you can call Lenovo Customer Support Center for help.

Telephone numbers
For a list of the Lenovo Support phone numbers for your country or region, go to https://pcsupport.lenovo.com/supportphonelist for the latest phone numbers.
Note: Phone numbers are subject to change without notice. If the number for your country or region is not provided, contact your Lenovo reseller or Lenovo marketing representative.

Services available during the warranty period

• Problem determination - Trained personnel are available to assist you with determining if you have a hardware problem and deciding what action is necessary to fix the problem.
• Lenovo hardware repair - If the problem is determined to be caused by Lenovo hardware under warranty, trained service personnel are available to provide the applicable level of service.
• Engineering change management - Occasionally, there might be changes that are required after a product has been sold. Lenovo or your reseller, if authorized by Lenovo, will make selected Engineering Changes (ECs) that apply to your hardware available.

Services not covered

• Replacement or use of parts not manufactured for or by Lenovo or nonwarranted parts
• Identification of software problem sources
• Configuration of UEFI BIOS as part of an installation or upgrade
• Changes, modifications, or upgrades to device drivers
• Installation and maintenance of network operating systems (NOS)
• Installation and maintenance of programs

For the terms and conditions of the Lenovo Limited Warranty that apply to your Lenovo hardware product, go to:

• https://www.lenovo.com/warranty/llw_02
