ECOLINK Zigbee 3.0 Door/Window Sensor DWZB1-CE
INTRODUCTION
Door/Window sensors are designed to secure the perimeter of the residential premise and provide the ability to add
various automation services. The Door/Window sensor, which consists of a magnet that attaches to a door or window,
will communicate door events to the home security system. When the magnet is moved away from the sensor, a signal
will be sent to the control panel that communicates the changed state to the security system. Signals can also be used
to activate a chime or convenience lighting based on system settings.
SPECIFICATIONS
Frequency: 2.4GHz
Battery Type: CR123A Battery
Operating Temperature: 0˚C – 50˚C (32°F – 122°F)
Storage Temperature: -20˚C – 60˚C (-4°F – 140°F)
Battery Life: 5 Years
PAIRING SENSOR
This Door/Window sensor needs to be paired before installation. Scanning the QR Code is preferred for pairing with some
security system and home controller applications. Note the MAC address can be found by scanning the QR code.

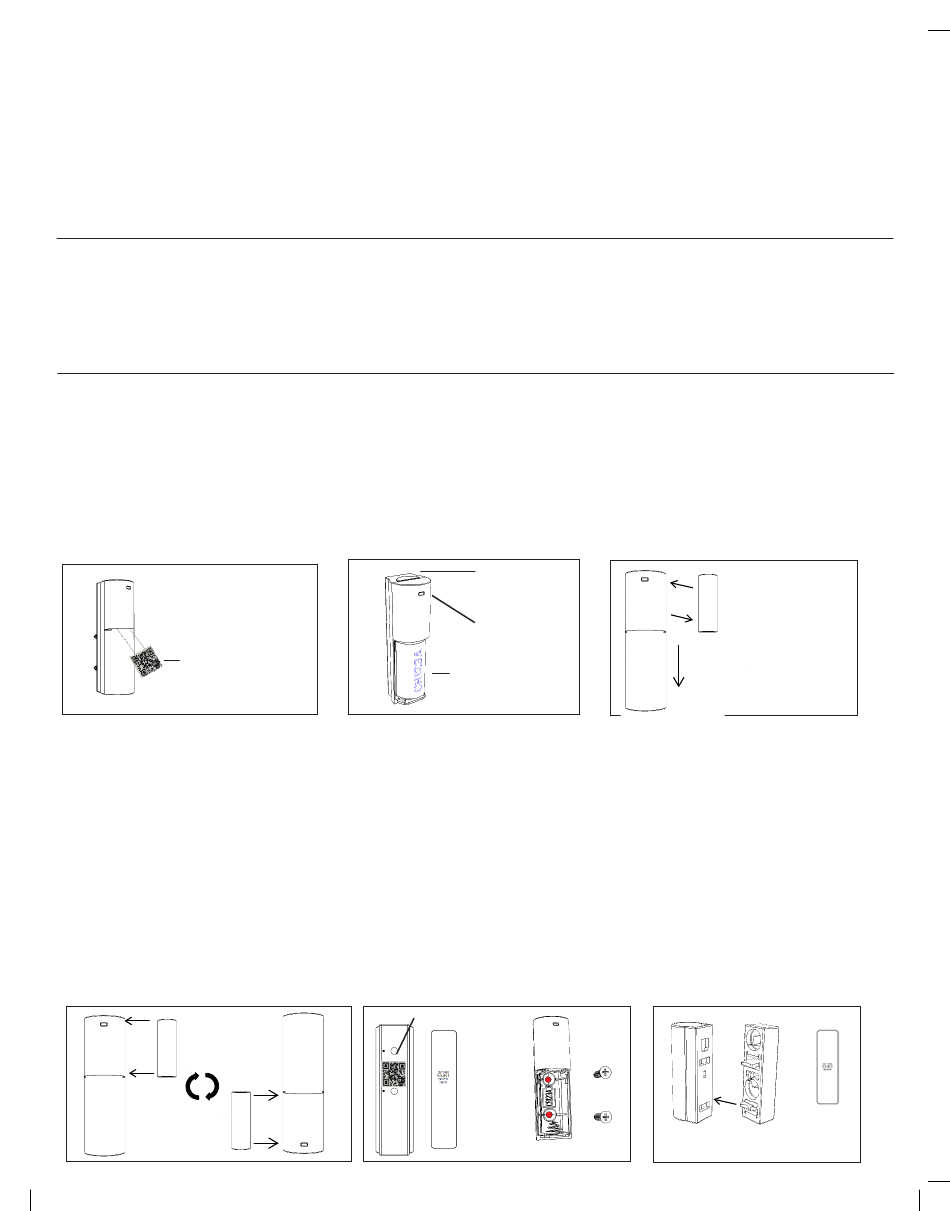

1. Pull the exposed plastic tab from the sensor. (Figure 1)
2. The LED indicator will be lit for three (3) seconds to indicate a successful booting.
3. It will blink three times approximately every 2 – 3 seconds while scanning the network.
4. If network is not found after 3 minutes, the sensor will go into sleep mode. To wake the sensor again, you need to
use magnet or tamper (Figure 3) to trigger a paring process, and then sensor will repeat steps from 3 to 4.
Battery Tab /
QR Code
INSTALLATION
1. Please make sure that the sensor and magnet is located less than 6 mm (0.25 inch) from each other (Figure 4). For
optimal performance, it is highly recommended to install the Door/Window sensor on the fixed frame and the
magnet on the moving part of the door/window, rotate if necessary. Place the sensor near the top of the door
that close to the opening edge of the door. This is the mounting location for the sensor.
2. Use the provided double-sided tape on the sensor. Attach the sensor to the door/window frame. Press firmly and
hold in place for a few seconds (Figure 5). Secure it with silicone if needed. For mounting with screws, please
use the screw holes located in the battery compartment. (Figure 5)
3. Spacers are used to raise the level of the magnet to be level/closer to sensor. The spacers are 6.5 mm (¼") thick.
If needed, install spacers as shown in Figure 6.
4. Use provided double-sided tape on the magnet. Make sure the alignment of both sensor and magnet is correct.
The magnet aligns from the top of the sensor case near the button and LED (Figure 4). Press firmly and hold in
place for a few seconds. If the spacer is used, it can be mounted to the door using screws and/or double-sided
tape before attaching the magnet. Secure tape-mounted parts with silicone if needed.
6 mm
Figure 4
DWZB1-CE 1.1
Figure 1
QR Code
6 mm
Dimension:
Sensor: 70 x 21 x 22 mm (2.73" x 0.83" x 0.86")
Magnet: 30 x 10 x 11 mm (1.19" x 0.39" x 0.43")
Magnet Spacer: 30 x 10 x 6 mm (1.19" x 0.39" x 0.25")
Button
Green Pairing
LED Indicator
CR123 Battery
Figure 2
3M double
sided Tape
Figure 5
Wake Sensor
6 mm
Magnet
Tamper
Open Battery Cover
Figure 3
3M double
sided Tape
Magnet Spacer
Figure 6
