HAL-PM-185LED-CPR

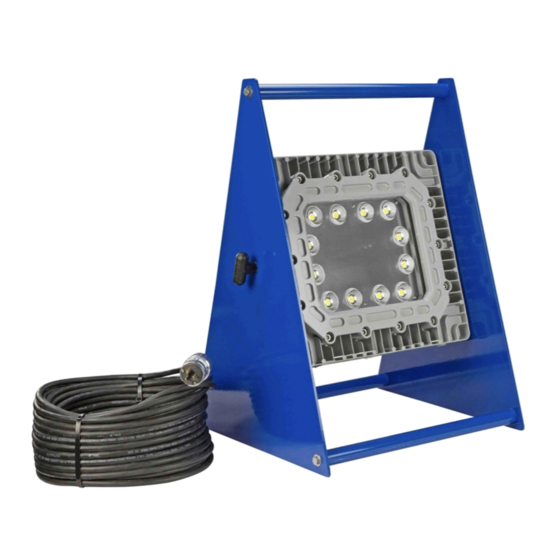

185 Watt Hazardous Location LED Light
A-frame Base Stand - C1D2 - SOOW Cord w/ EXP Plug
Thank you for your purchase of the Larson Electronics HAL-PM-185LED-CPR Portable Hazardous Location
LED Light. Please follow the steps below in order to operate and maintain this product.

IMPORTANT

READ CAREFULLY BEFORE OPERATING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE HAL-PM-185LED-CPR MUST BE OPERATED IN ACCORDANCE WITH NATIONAL ELECTRICAL
CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
FOR PERSONAL SAFETY, ALWAYS CONFIRM THE RATING OF ANY KNOWN HAZARDOUS OR POTENTIALLY
HAZARDOUS LOCATION WHERE THE LIGHT IS TO BE USED.

WARNING:

TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE, THE SUPPLY CIRCUIT SHOULD BE
DISCONNECTED WHEN INSTALLING OR PERFORMING ANY MAINTENANCE ON THIS UNIT.
WARNING:
WHEN INSTALLING THIS LIGHT IN HAZARDOUS LOCATIONS, CHECK THE OPERATING
TEMPERATURE LIMITS PRIOR TO INSTALLATION TO BE SURE IT CONFIRMS TO THE ENVIRONMENTAL
TEMPERATURE RESTRICTIONS AND NEC CLASSIFICATIONS. CHECK THE FIXTURE'S METAL NAMEPLATE FOR
TEMPERATURE (T) RATINGS.
WARNING:
DO NOT SCRATCH OR CHIP THE FRONT LENS. TURN THE POWER OFF BEFORE STARTING
INSTALLATION OR REPAIR.
WARNING:
OPERATE THIS FIXTURE ONLY AT THE VOLTAGE OF YOUR SPECIFIC SUPPLY CIRCUIT. FAILURE
TO DO SO WILL RESULT IN DAMAGE TO THE FIXTURE.
WARNING:
SUBSTITUTE COMPONENTS MAY IMPAIR EXPLOSION PROOF SAFETY.

OPERATING

Before operation, confirm that the power source will provide the correct voltage indicated on the product
nameplate. Ensure the receptacle will accept the cord cap attached to the light. This product ships
preconfigured with the selected cord cap.
Check product nameplate for Ratings and Approvals.
Place the light in the desired location and run its power cord to a power source. Ensure all safety requirements
are followed for the hazardous area.
The light head can be adjusted by loosening the hand screws on each side, positioning the
light head and tightening the hand screws to hold the light in place.
HAND SCREW
This light is "instant-on" once plugged in to a live circuit.
AVOID DIRECT EYE EXPOSURE Do not look at the face of or directly into the light when plugging in or when
illuminated.
Larson Electronics, LLC
Phone: (800) 369-6671
Fax: (903) 498-3364
www.larsonelectronics.com
1 of 2
