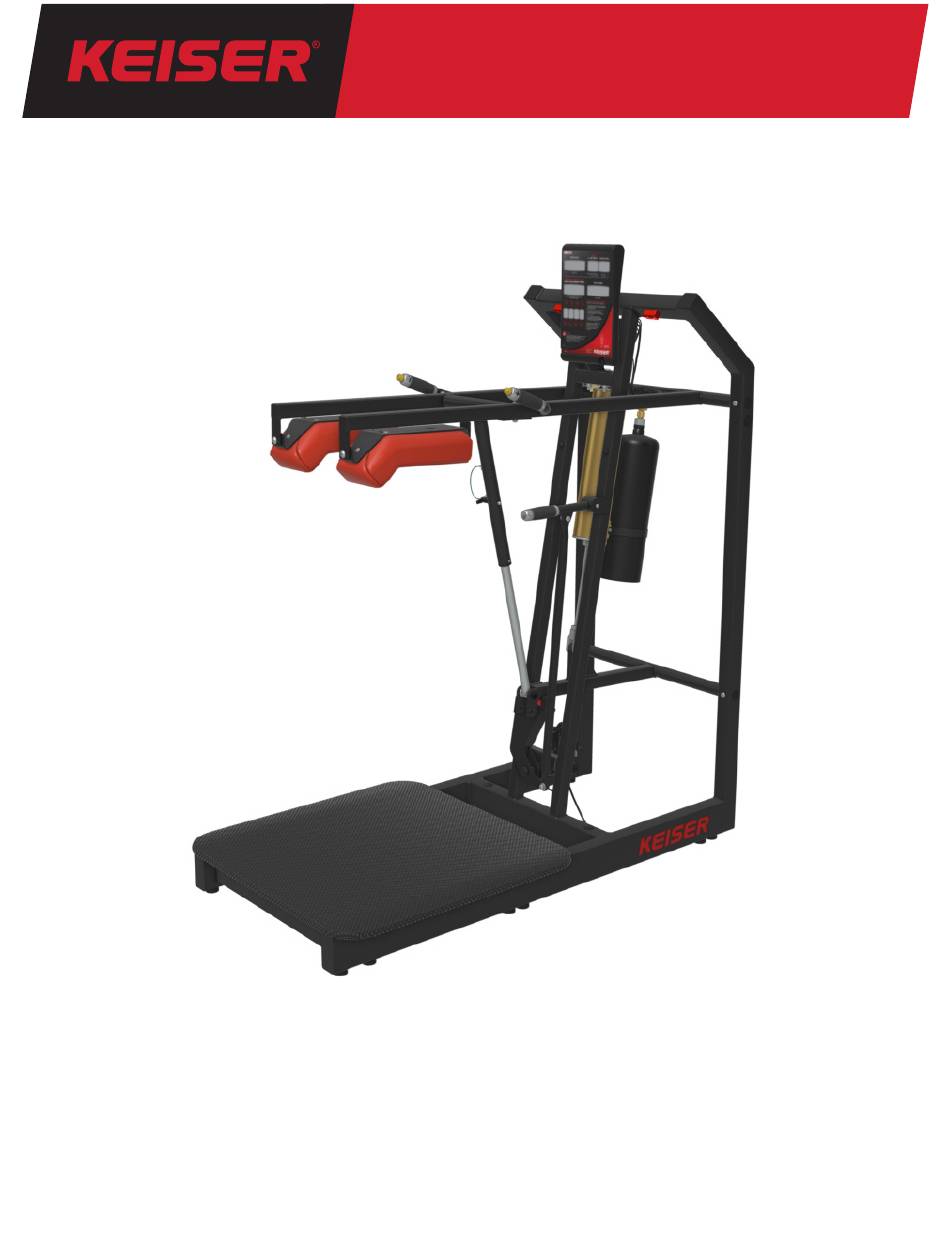

- Page 1 STRENGTH | CARDIO | FUNCTIONAL Squat Pro Model 001534BP AIR300 SQUAT | SQUAT PRO MODELS: 001531BP, 001531XP 001534BP, 001534XP OPERATION MANUAL...
-
Page 2: Table Of Contents
Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from Keiser Corporation. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by Keiser Corporation. -
Page 3: General Information
Air300 Squat/Squat Pro after reading this manual, our Keiser Customer Support team will be happy to assist by telephone at 1 559 256 8000 and via live chat at keiser.com/support (Monday—Friday, 7 am to 5:30 pm Pacific Standard Time), or by email at service@keiser.com. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Keiser Corporation equipment to instruct all individuals, whether they are the end- user or supervising personnel, on proper usage of the equipment. Keiser Corporation recommends that all users of its equipment be informed of the following information before use. -
Page 5: 05_Conventions Used
IMPORTANT: Indicates information considered critical, but not hazard-related. SAFETY AND NOTIFICATION LABELS Maintain and do not remove safety or notification labels for any reason. They contain important information. If unreadable or missing, contact Keiser Corporation for a replacement (see back cover for contact information). - Page 6 AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL IMPORTANT SAFETY INFORMATION CONTRAINDICATIONS There are a number of contraindications in the context of the relevant fields of the Air300 Squat/Squat Pro use. In rehabilitation, only the medical staff can determine the form and extent of therapy. Medications can have an influence on the rehabilitation (e.g.
-
Page 7: Technical Specifications
Minimum working temperature: 32ºF (0ºC) Maximum vessel capacity: 300 in (4.92 L) POWER • 1.5V D Alkaline Batteries (quantity 2, Keiser PN 966500) • 3V CR2032 Lithium Coin Cell Battery (quantity 1) Permanently attached, not serviceable. Contact Keiser Customer Support for service. -
Page 8: Installation And Placement
Compressor ON (allow the Compressor to build up to a minimum of 100 psi / 1/4-inch QD 6.89 bar; Keiser Compressor and Keiser Air System not included, sold separately) Keiser 2. Connect the 1/4-inch Quick Disconnect (QD) from... -
Page 9: Operation
AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL OPERATION EQUIPMENT OVERVIEW Figure 5. Air300 Squat/Squat Pro Power Display Exercise Arm Rest Increase/Decrease (+/-) Thumb Buttons Stop Handle (Movable Stop)* Exercise Arm Air Tank Shoulder Pads Cylinder Lock Pin Processor Box Platform Instruction Placard (not shown) Quick Disconnect (QD) with Tube *Model 001534BP Squat Pro (shown) equipped with Movable Stop. -
Page 10: 10_Power Display
AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL POWER DISPLAY DISPLAY FEATURES Resistance, Reps, and Power workout data output on the Power Display are shown below. RESISTANCE REPS Current resistance setting Number of repetitions (lbs or kg) (0 – 99) PERCENT OF PEAK POWER PEAK POWER The percentage of peak Displays the highest power... - Page 11 POWER DISPLAY POWER DISPLAY FEATURES WITH eCHIP The Keiser eChip* is an optional digital workout log that records and recalls your workout data. Additional workout data made available when using the Power Display with an eChip are shown below. = SET/REPS...
-
Page 12: 12_Proper Operation Check
Immediately replace damaged, worn, or broken parts. Do not use the Air300 Squat/Squat Pro until all repairs have been completed and tested by a Keiser-certified technician. * “Lo-bA” = Batteries are low, replace immediately. If batteries are dead (depleted), the Power Display remains blank (see... - Page 13 AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL HOW TO USE THE AIR300 SQUAT/SQUAT PRO NOTE: The A300 Squat Pro model is equipped with a Stop Handle (Movable Stop) to make it easier for the user to enter/ exit the machine. CAUTION: Keep hands on handgrips during exercise. Height Adjustment: Support the Shoulder Pads and remove the Lock Pin.
- Page 14 AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL HOW TO USE THE AIR300 SQUAT/SQUAT PRO (CONTINUED) CAUTION • Consult your physician before beginning any exercise • If you feel pain, faintness, or are unable to maintain program. good form, stop immediately. • This equipment should only be used with proper •...
-
Page 15: 15_Power Test
CAUTION: Test should only be performed with proper instruction. Never perform Power Test without proper warm-up. The purpose of the Power Test (KEISER 6-Rep Test) is to determine your RESISTANCE SETTING FOR MAXIMUM POWER. Use your RESISTANCE SETTING FOR MAXIMUM POWER as a baseline measurement to program safe and effective training sessions. -
Page 16: Maintenance
IMPORTANT: Do not use household or industrial cleaners as they contain caustic chemicals that can destroy the paint finish and cause corrosion. Use only mild soap/detergent (neutral, non-caustic) to clean. Contact Keiser Customer Support for replacement parts order, or for any matters regarding the safe operation of your Air300 Squat/Squat Pro (see back cover for contact information). -
Page 17: 17_Battery Replacement
AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL BATTERY REPLACEMENT Do not operate the equipment during battery replacement procedure. “Lo-bA” = Batteries are low, replace immediately. NOTE: If batteries are dead (depleted), the Power Display remains blank. To replace the batteries, refer to Figure 11 and follow the instructions below (no tools required). -
Page 18: 18_Annual Maintenance
THE AIR IN THE EQUIPMENT (“— ” THUMB BUTTON) BEFORE PERFORMING ROUTINE MAINTENANCE. Figure 12. Annual Routine Maintenance Illustration Contact Keiser Customer Support for replacement part(s) order, or for any matters regarding the safe operation of your Air300 Squat/Squat Pro (see back cover for contact information). -
Page 19: Regulatory And Compliance Notices
AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL REGULATORY AND COMPLIANCE NOTICES Standards ISO/EN 20957-1 Accuracy Class A (High accuracy) and Usage Class S (Studio, commercial use); IEC/EN 60601-1 and IEC/EN 60601-1-2. Marks SAFETY NOTIFICATIONS Displayed watts testing parameters: “Current Power,” “Peak Power,” and “Percent of Peak Power” are not suitable for use in applications where the health and safety of a patient may be dependent on the accuracy of those parameters. -
Page 20: 20_Electromagnetic Compatibility (Emc)
Wear parts: After being replaced, wear parts must be disposed of according to country-specific waste laws. If you have any questions about equipment disposal, please contact your local dealer or Keiser Customer Support (see back cover for contact information). -
Page 21: Warranty Statement
View or print your Air300 Squat/Squat Pro warranty online at keiser.com/support/warranty. If you have any questions about your warranty, please contact Keiser Customer Support at 1 559 256 8000 and via live chat at keiser.com/support (Monday—Friday, 7 am to 5:30 pm Pacific Standard Time), or by email at service@keiser.com. - Page 22 AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL This page intentionally left blank.
- Page 23 AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL This page intentionally left blank.
- Page 24 AIR300 SQUAT/SQUAT PRO | OPERATION MANUAL CUSTOMER SUPPORT If you have any questions regarding the operation of the Air300 Squat/Squat Pro after reading this manual, contact Keiser Customer Support: 1 559 256 8000 service@keiser.com Manufactured in the USA KEISER CORPORATION keiser.com/support...
