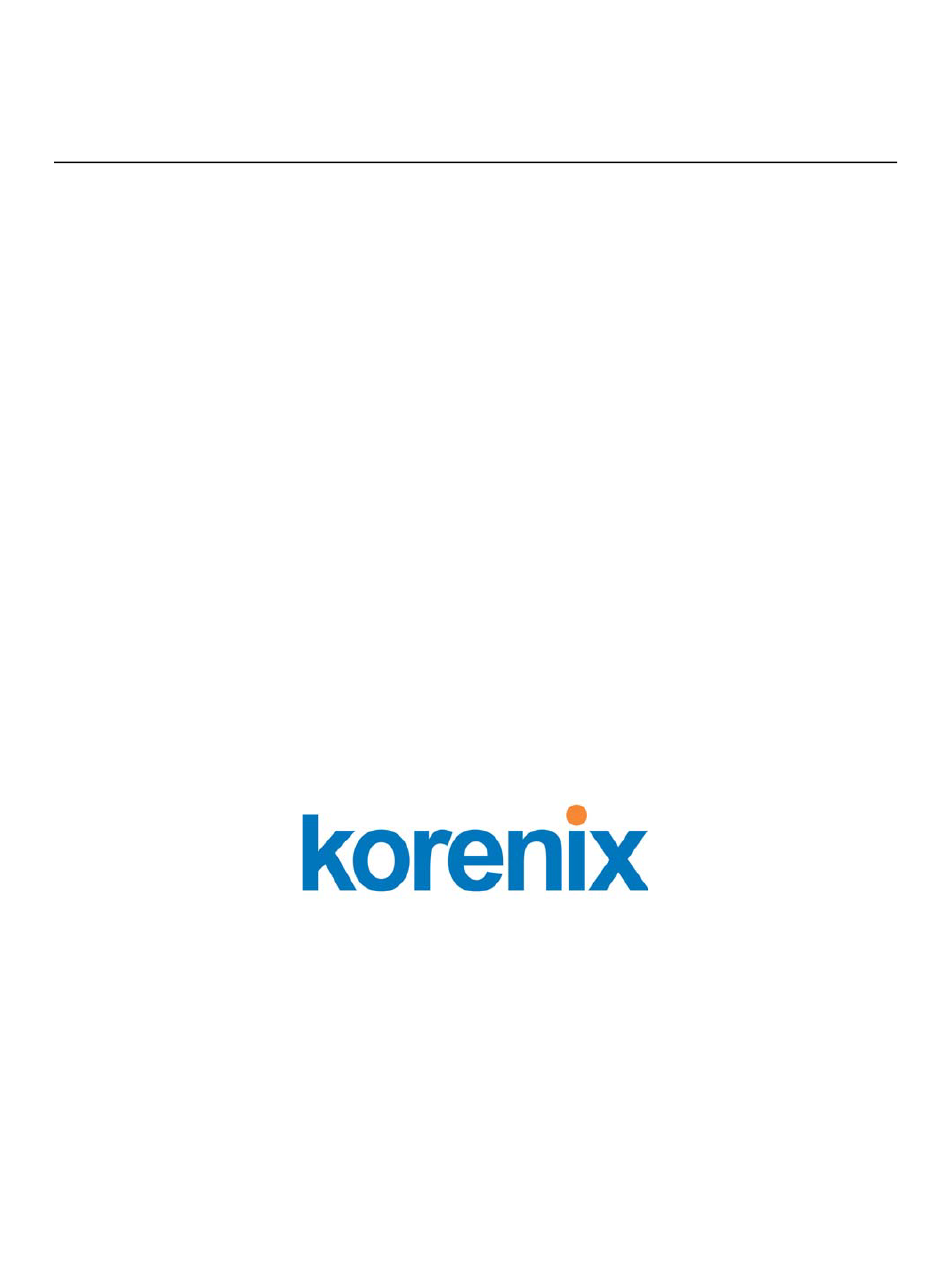

Korenix JetPort 5604 / 5604i
Serial Device Server
User's Manual
Jan. 2010 (V1.1)
www.korenix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetPort 5604 and is the answer not in the manual?

Questions and answers

Summary of Contents for Korenix JetPort 5604

  • Page 1 Korenix JetPort 5604 / 5604i Serial Device Server User’s Manual Jan. 2010 (V1.1) www.korenix.com...
  • Page 2 Korenix JetPort 5604 / 5604i Serial Device Server User’s Manual Copyright Notice Copyright © 2006 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
  • Page 3: Table Of Contents

    Contents 1 Introduction 4 Serial to Ethernet Technology Overview ................. 5 Product Features......................5 Product Specification....................... 5 Package Checklist......................7 2 Hardware Installation .....................8 Panel and LEDs ......................9 5604 Panel and Interfaces ......................9 5604i Panel and Interfaces......................9 5604/5604i LED Indicators ......................10 Connecting the Power ....................
  • Page 4: Introduction

    200ms. 5604 series also equipped with abundant value-added hardware features include the 2 types of power inputs, 4 Digital Input and 2 Digital Output. JetPort 5604 series can be configured by JetPort Commander, the easy-to-use utility for Windows and the HTTPS and SSH for secured management.
  • Page 5: Serial To Ethernet Technology Overview

    1.1 Serial to Ethernet Technology Overview Korenix JetPort serial device servers provide perfect solution to manage serial devices via Ethernet in flexible ways, such as TCP server, TCP client, UDP, or Windows virtual COM. JetPort creates a transparent gateway for the serial communication to Ethernet. If the control program uses network standard API, you can choose TCP or UDP as the communication protocol.
  • Page 6 Access IP Table Devices’ status, VCOM status Monitor SNMP RFC1213 MIB II, RFC1317 RS232_like and SNMP Trap Automatic e-mail warning by pre-defined events E-Mail Alert System Log Trap to Syslog server or local display JetPort 5604 Serial Device Server User’s Manual...
  • Page 7: Package Checklist

    4-port RS232, RS422, RS485 Redundant Serial Device Server, Quick Installation Guide, 100-240VAC power adapter, Din-Rail/Wall Mount kit and foot pads, Documentation and Software CD-ROM JetPort 5604-i: Industrial 4-port RS-422/485 with Isolation Redundant Serial Device Server Includes: 4-port RS232, RS422, RS485 Redundant Serial Device Server, Quick Installation Guide, 100-240VAC power adapter, Din-Rail/Wall Mount kit and foot pads, Documentation and Software CD-ROM JetPort 5604 Serial Device Server User’s Manual...
  • Page 8: Hardware Installation

    2 Hardware Installation JetPort serial device server can be configured by Windows utility, web browser, or Telnet console. Advanced management features include SNMP support and Email alert. JetPort Commander is a powerful Windows utility that supports device discovery, group setup, group firmware update, and monitoring functions.
  • Page 9: Panel And Leds

    2.1 Panel and LEDs 5604 Panel and Interfaces 5604i Panel and Interfaces JetPort 5604 Serial Device Server User’s Manual...
  • Page 10: 5604/5604I Led Indicators

    5604/5604i LED Indicators There are 6 LEDs in 5604/5604i front panel and 2 LED in RJ-45 ports, indicating real-time system status. Color Indication On: Power 1 is on and booting up. Blinking: Indicates an IP conflict, or DHCP or BOOTP server did not respond properly.
  • Page 11: Connecting The Network

    LED will turn green. Note: If the 2 power inputs are connected (PWR 1, PWR 2), the JetPort 5604 will be powered from the highest connected voltage. The unit will not alarm for loss of DC IN power, the alarm function only applies to loss of power at PWR1 or PWR2.
  • Page 12: Digital Input/Output

    No Termination for RS232/485 (short distance) 2.6 Digital Input/Output JetPort 5604 series provides 4 digital inputs and 2 digital outputs. It allows users to connect the termination units’ 5V TTL digital input/output. JetPort Commander allows you to monitor the status of the DI and DO, and set the value 0 or 1 to DO.
  • Page 13 Ex: “1:0” (status delimiter is “:”, order is “DO_1: DO_2”) Note: command should with “\r\n” at end. Programming returns: getdo Return DO status string. (2 DO) Ex: “1:0\n\r”. (delimiter is “:”, order is “DO_1:DO_2”, “\n\r” is end flag.) JetPort 5604 Serial Device Server User’s Manual...
  • Page 14: Din-Rail Mounting Installation

    2.7 DIN-Rail Mounting Installation The DIN-Rail clip is already attached to the JetPort 5604 Series products when packaged. If the DIN-Rail clip is not screwed on the Jetport, follow the instructions and the figure below to attach the DIN-Rail clip to the JetPort.
  • Page 15: Wall-Mounting Installation

    Follow these steps to mount the unit to a wall or other flat surface. 1. Use a screwdriver to attach the wall-mounting plate to the back of the JetPort using the six screws provided. Wall-Mounting plate and screws. JetPort 5604 Serial Device Server User’s Manual...
  • Page 16 3. Lightly push the Wall-mounting kit into the track like the method described in Din Rail mounting installation. The figure shows the 5604 is attached on the track well. 4. To remove the unit from the wall and from the wall-mounting plate, reverse steps 1-3. JetPort 5604 Serial Device Server User’s Manual...
  • Page 17: Windows Management Tool

    Software Quick Setup. You can know how to install the JetPort Commander and setup the vitual COM mode. The “JetPort Commander Manual” introduces the full configuration of JetPort commander. You can find the document in product CD or download from Korenix web site. Server Configuration Broadcast...
  • Page 18: Software Quick Setup

    Commander Manual which you can find in the CD or download from Korenix web site. Install JetPort Commander 1. Insert the CD and auto-run the program. If the setup does not auto-run, select “JetPort 5604”, and “Operation System”, run JetPort Setup.exe to install Windows utility, JetPort Commander.
  • Page 19 Note: In 5604 series, you can see 4 serial ports, port 1,2,3 and 4. Port 1 is Serial 1, Port 2 is Serial 2, Port 3 is Serial 3. Port 4 is Serial 4. Select “Service mode” , “Virtual COM Mode” and press “Map Virtual COM” to map the port to the COM port. JetPort 5604 Serial Device Server User’s Manual...
  • Page 20: Jetport Commander Manual

    Note: This document shows you how to quick setup the software. The full functions and configurations’ description, please refer to the JetPort Commander Manual which you can find in the CD or download from Korenix web site. 3.2 JetPort Commander Manual The “JetPort Commander Manual”...
  • Page 21: Web And Telnet Console

    4 Web and Telnet Console In addition to Windows utility, JetPort 5604 can also be managed by Web-HTTPS and the SSH Console. The HTTPS is a security protocol that provides communication privacy over the internet. The HTTPs packets transmitted between the JetPort and PC would be encrypted.
  • Page 22: Web Console

    If the JetPort is password protected, use the pre-assigned password to login first. The overview page lists the basic information of this JetPort device. Server Configuration Basic Setting configures Server name, Time Server, and Telnet console enable/disable. JetPort 5604 Serial Device Server User’s Manual...
  • Page 23 Network Setting configures the IP address, Netmask, Gateway, and DNS server for the JetPort. Auto IP Report is for dynamic IP address reporting in defined intervals. You can also define Administration password to protect the JetPort from unauthorized modification. Avoid using space in password. JetPort 5604 Serial Device Server User’s Manual...
  • Page 24: Port Configuration

    You can define max. 4 delimiters (00~FF, HEX) for each way. The data will be hold until the delimiters are received or the optional “Flush Data Buffer After” times out. Zero means disable(factory default). JetPort 5604 Serial Device Server User’s Manual...
  • Page 25: Service Mode- Virtual Com

    Zero is to disable this setting Default time is 420. Note: If you want to auto-connect your Virtual COM when power on the device, you should JetPort 5604 Serial Device Server User’s Manual...
  • Page 26: Service Mode- Tcp Server

    In TCP Client mode, you need select the Serial Port, define the destination host IP and port number, Idle timeout, Alive check. To deploy multilink, specify up to 4 more hosts IP and Port number. JetPort 5604 Serial Device Server User’s Manual...
  • Page 27: Service Mode- Udp

    In UDP mode, you need to select the Serial Port, define the destination host IP and Local listen port number. To create more destination hosts, specify the IP range of destination IP and send port number. JetPort 5604 Serial Device Server User’s Manual...
  • Page 28: Management

    Can Get the status of the DI_1, DI_2, DI_3 and DI_4. DO (Digital Output) Can Get and Set the status of the DO_1 and DO_2. Select the value and click Submit to apply the setting. JetPort 5604 Serial Device Server User’s Manual...
  • Page 29: Ip Filtering

    Password Changed: Changing the password will trigger the event Access IP Blocked: Report blocked IP addresses Redundant Power Change: Power change will trigger the event Redundant Ethernet Change: Ethernet master port change will trigger the event JetPort 5604 Serial Device Server User’s Manual...
  • Page 30 Port disconnected: In TCP Server/Client Mode, when the device lost the TCP link, this event will be trigger. In Virtual COM Mode, When Virtual COM is not available, this event will be trigger. JetPort 5604 Serial Device Server User’s Manual...
  • Page 31: Email And Snmp Trap Notification

    SNMP Trap configuration includes up to 4 Trap Servers. You need to at least fill in one Trap Server’s IP or domain. The Community is also required information. Do not use the “;” in this column. Location and Contact is optional information. JetPort 5604 Serial Device Server User’s Manual...
  • Page 32: Maintenance

    Import command. Export Configuration: Save the current configuration into a file and save the file in current host. Upgrade Firmware: Upgrade to new firmware. Click Browse to select the firmware then click Upgrade command. JetPort 5604 Serial Device Server User’s Manual...
  • Page 33: Ssh Console

    Open the PuTTY In the Session sub-tree, enter the Host Name (IP Address of your JetPort) and Port number (default = 22). Choose the “SSH” protocol. Then click “Open” to start the SSH session console. JetPort 5604 Serial Device Server User’s Manual...
  • Page 34 (admin) ************************************************** Korenix JetPort Commander ************************************************** Input System Password: ***** (The password you setup in the Jetport commander.) Password confirmed. Starting Main Menu. You can start to configure your JetPort by SSH console. JetPort 5604 Serial Device Server User’s Manual...
  • Page 35: Configuration

    Type the Password you setup in the JetPort Commander. Configuration Configure the device and port by pressing function number or the hinted initial. Press “q” to exit the function. Always press “a” to apply and save change after making a configuration. JetPort 5604 Serial Device Server User’s Manual...
  • Page 36: Appendix Asnmp Mib Ii And Rs232 Like Support

    SNMP MIB II and RS232 Like Support Appendix A Jetport 5604 has build-in SNMP agent that supports SNMP trap, RFC 1317 RS232 MIB and RFC1213 MIB-II. The following tables list SNMP variables implemented in Jetport 5604. RFC1213 MIB-II supported SNMP variables...
  • Page 37 RFC1317 RS232 supported SNMP variables RS232 MIB rs232Number rs232PortIndex rs232PortType rs232PortInSigNumber rs232PortOutSigNumber rs232PortInSpeed rs232PortOutSpeed rs232PortInFlowType rs232PortOutFlowType rs232AsyncPortIndex rs232AsyncPortBits rs232AsyncPortStopBits rs232AsyncPortParity rs232AsyncPortAutobaud rs232AsyncPortParityErrs rs232AsyncPortFramingErrs rs232AsyncPortOverrunErrs rs232InSigPortIndex rs232InSigName rs232InSigState rs232InSigChanges rs232OutSigPortIndex rs232OutSigName rs232OutSigState rs232OutSigChanges JetPort 5604 Serial Device Server User’s Manual...
  • Page 38: Appendix Brs232 Pin Assignment

    RS232 Pin Assignment Appendix B Name Notes/Description Data Carrier Detect Receive Data (RxD, Rx) Transmit Data (TxD, Tx) Data Terminal Ready Ground Data Set Ready Request To Send Clear To Send Ring Indicator...
  • Page 39 Less Time At Work! Fewer Budgets on applications! The Korenix business idea is to let you spend less time at work and fewer budgets on your applications. Do you really want to go through all that trouble but still end up with low quality products and lousy services? No! This is why you need Korenix.
  • Page 40: Revision History

    Revision History Appendix C Version Description Date V1.0 The first released version. Mar. 2007 V1.1 Remove Linux TTY driver Jan. 2010 JetPort 5604 Serial Device Server User’s Manual...
