Korenix JetPort 5601 User Manual

Serial device server
Hide thumbs Also See for JetPort 5601:
Table of Contents

Advertisement

Quick Links

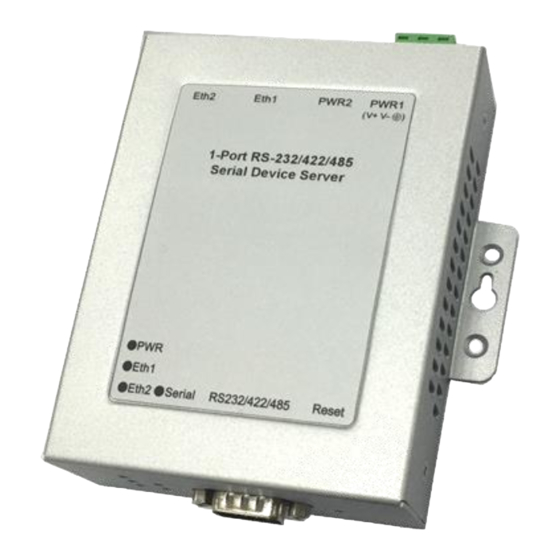

Korenix JetPort 5601
Serial Device Server
User's Manual
Version 3.1
Nov. 2015
www.korenix.com

Advertisement

Table of Contents
loading

Related Manuals for Korenix JetPort 5601

Summary of Contents for Korenix JetPort 5601

  • Page 1 Korenix JetPort 5601 Serial Device Server User’s Manual Version 3.1 Nov. 2015 www.korenix.com...
  • Page 2 Korenix JetPort 5601 Serial Device Server User’s Manual Copyright Notice Copyright  2015 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction ....................1 Serial to Ethernet Technology Overview ............2 Product Features ....................2 Product Specification ..................2 Package Checklist ..................... 5 Optional Accessories ..................5 Chapter 2 Hardware Installation ................. 6 Panel and LEDs ....................7 Reset Button ......................

  • Page 5: Chapter 1 Introduction

    Introduction Chapter 1 JetPort 5601 is a smart 1-port RS-232/422/485 to Redundant Ethernet Serial Device Server. The serial interface is configurable in software and supports speed as fast as 921.6kbps. The Dual Ethernet ports can support RTTD (Redundant to the Device) or connect as Daisy Chain. With...

  • Page 6: Serial To Ethernet Technology Overview

    Serial to Ethernet Technology Overview Korenix JetPort serial device servers provide perfect solution to manage serial devices via Ethernet in flexible ways, such as TCP server, TCP client, UDP, or Windows Real/Virtual COM. JetPort creates a transparent gateway for the serial communication to Ethernet. If the control program uses network standard API, you can choose TCP or UDP as the communication protocol.
  • Page 7 RFC1213 MIB II, RFC1317 RS232_like and SNMP Trap E-Mail Alert Automatic e-mail warning by pre-defined events System Log Trap to Syslog server or local display System Event Cold/Warm Start, Login Failed, IP and Password Changed, Access IP Blocked, Serial Port JetPort 5601 Serial Device Server User’s Manual...
  • Page 8 Maximum 3.7 Watts Mechanical Dimension 110mm(W) x 114mm(D) x 29.6mm(H) Regulatory Approvals FCC Class A, CE Class A , UL(compliance), RoHS Environmental Operation Temperature -20~70°C Operation Humidity 5%~95%, (non-condensing) Storage Temperature -40~85°C Warranty 5 years JetPort 5601 Serial Device Server User’s Manual...

  • Page 9: Package Checklist

    If any of the above items is missing or damaged, please contact your local sales representative. Optional Accessories JetPort 5601 is equipped with two types of power inputs, the terminal block and power jack. If any need of power adapter, please contact your local sales representative.

  • Page 10: Chapter 2 Hardware Installation

    Hardware Installation Chapter 2 JetPort serial device server can be configured by Windows utility, web browser, or Telnet console. Advanced management features include SNMP support and Email alert. JetPort Commander is a powerful Windows utility that supports device discovery, group setup, group firmware update, and monitoring functions.

  • Page 11: Panel And Leds

    Blinking : Ethernet Activity Ethernet cable is disconnected, or has a short. Green Serial port is transmitting data. Serial Serial port is receiving data. No data is being transmitted or received through the serial port. JetPort 5601 Serial Device Server User’s Manual...

  • Page 12: Reset Button

    If the power input (PWR 1 or PWR 2) is connected, the power LED will turn green. Note: If the 2 power inputs are connected (PWR 1, PWR 2), the JetPort 5601 will be powered from the highest connected voltage. The unit will not alarm for loss of DC IN power, the alarm function only applies to loss of power at PWR1 or PWR2.

  • Page 13: Connecting The Serial Device

    Quick Start Connecting the Serial Device Connect the serial device to the unit DB9 male port by the pin assignment table. Pin Assignment Pin # RS232 RS422 RS485 (4 wire) RS485(2 wire) DATA- DATA+ JetPort 5601 Serial Device Server User’s Manual...

  • Page 14: Din-Rail Mounting Installation

    3. To remove the unit from the rail/track, reverse steps 1-3. Notice: Due to the safety concern, Korenix requests users to vertically mount the 5601 device to the rail when using the Terminal Block as the power input. Use the certificated power supply, assured power construction in your factory as the power source.

  • Page 15: Windows Management Tool

    Software Quick Setup. You can know how to install the JetPort Commander and setup the Real/Virtual COM mode. The “JetPort Commander Manual” introduces the full configuration of JetPort commander. You can download from Korenix web site. www.korenix.com Server Configuration ...

  • Page 16: Software Quick Setup

    You can also apply configurations of one serial server to the other serial servers. This document shows you how to quick setup the software. The full functions and configurations’ description, please refer to the JetPort Commander Manual which you can download from Korenix web site. Install JetPort Commander Download JetPort Commander program on the Korenix website.
  • Page 17 ONE Network Adapter that can locate the JetPort devices, and CLOSE the rest Network Adapters. Otherwise, JetPort Commander may broadcast INCORRECTLY. 4. Configuring the JetPort unit: 4.1 Click on the JetPort unit and select “Add” for further configuring the unit. JetPort 5601 Serial Device Server User’s Manual...
  • Page 18 5.1 Go to “Configuration”, and choose the device and the “port”. Select “Serial Settings” to configure the serial settings. Notice: If you choose RS 485(2-wire) interface, for better connection, please Check “Terminal Resistor.” JetPort 5601 Serial Device Server User’s Manual...
  • Page 19 JetPort IP address. Note: This document shows you how to quick setup the software. The full functions and configurations’ description, please refer to the JetPort Commander Manual download from Korenix web site. JetPort 5601 Serial Device Server User’s Manual...

  • Page 20: Web And Telnet Console

    Web and Telnet Console Chapter 4 In addition to Windows utility, JetPort 5601 can also be managed by Web-HTTPS and the SSH Console. The HTTPS is a security protocol that provides communication privacy over the internet. The HTTPs packets transmitted between the JetPort and PC would be encrypted.

  • Page 21: Web Console

    HTTPS. You should type https://.) If the JetPort is password protected, use the pre-assigned password to login first. The overview page lists the basic information of this JetPort device. JetPort 5601 Serial Device Server User’s Manual...
  • Page 22 SNTP Configuration Page configures Server name, Time Server, and Telnet console enable/disable. IP Configuration Page configures the IP address, netmask, gateway, and DNS server for the JetPort. Auto IP report is for dynamic IP address reporting in defined intervals. JetPort 5601 Serial Device Server User’s Manual...
  • Page 23 Serial Configuration covers Serial Parameter settings, such as baud rate, data bits, stop bits, parity, and flow control. Notice: If you choose RS 485(2-wire) interface, for better connection, please turn ON “Terminal Resistor”. JetPort 5601 Serial Device Server User’s Manual...
  • Page 24 Timeout), the connection will be closed and the port will be freed and re-try for connection with other hosts. Zero is disable this setting (default). If Multilink is configured, only the first host connection is effective for this setting. JetPort 5601 Serial Device Server User’s Manual...
  • Page 25 Service Mode- TCP Client In TCP Client mode, you need to define the destination host IP and port number, Idle timeout, Alive check. To deploy multilink, specify up to 4 more hosts IP and Port number. JetPort 5601 Serial Device Server User’s Manual...
  • Page 26 The Access IP Table specifies the IP address and subnet that can access to the device. The access is based on IP and netmask combination. If the access is open to all hosts, do NOT enable this function. JetPort 5601 Serial Device Server User’s Manual...
  • Page 27 SNMP Trap configuration includes up to 4 Trap Servers. You need to at least fill in one Trap Server’s IP or domain. The Community is also required information. Do not use the “;” in this column. Location and Contact is optional information. JetPort 5601 Serial Device Server User’s Manual...
  • Page 28 In Real/Virtual COM Mode, When Real/Virtual COM is not available, this event will be trigger. Select the events and the type of Email, SNMP Trap or Syslog, click Submit to enable it. JetPort 5601 Serial Device Server User’s Manual...

  • Page 29: Ssh Console

    JetPort by SSH. Note: PuTTY is copyright 1997-2006 Simon Tatham. Download PuTTY: http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html JetPort Settings: Enable the “Telnet Management Enable” to enable the SSH feature of JetPort 5601/5601f. Click “Goto Telnet Management” will ask you to open the SSH client. JetPort 5601 Serial Device Server User’s Manual...
  • Page 30 In the Session sub-tree, enter the Host Name (IP Address of your JetPort) and Port number (default = 22). Choose the “SSH” protocol. In the SSH sub-tree, select the “Enable legacy use of single-DES in SSH2”. Then click “Open” to start the SSH session console. JetPort 5601 Serial Device Server User’s Manual...
  • Page 31 (admin) ************************************************** Korenix JetPort Commander ************************************************** Input System Password: ***** (The password you setup in the Jetport commander.) Password confirmed. Starting Main Menu. You can start to configure your JetPort by SSH console. JetPort 5601 Serial Device Server User’s Manual...
  • Page 32 Type the Password you setup in the JetPort Commander. Configuration Configure the device and port by pressing function number or the hinted initial. Press “q” to exit the function. Always press “a” to apply and save change after making a configuration. JetPort 5601 Serial Device Server User’s Manual...
  • Page 33 SNMP MIB II and RS232 Like Support Appendi x A Jetport 5601 has build-in SNMP agent that supports SNMP trap, RFC 1317 RS232 MIB and RFC1213 MIB-II. The following tables list SNMP variables implemented in Jetport 5601. RFC1213 MIB-II supported SNMP variables...
  • Page 34 RFC1317 RS232 supported SNMP variables RS232 MIB rs232Number rs232PortIndex rs232PortType rs232PortInSigNumber rs232PortOutSigNumber rs232PortInSpeed rs232PortOutSpeed rs232PortInFlowType rs232PortOutFlowType rs232AsyncPortIndex rs232AsyncPortBits rs232AsyncPortStopBits rs232AsyncPortParity rs232AsyncPortAutobaud rs232AsyncPortParityErrs rs232AsyncPortFramingErrs rs232AsyncPortOverrunErrs rs232InSigPortIndex rs232InSigName rs232InSigState rs232InSigChanges rs232OutSigPortIndex rs232OutSigName rs232OutSigState rs232OutSigChanges JetPort 5601 Serial Device Server User’s Manual...
  • Page 35 RS232 Pin Assignment Appendi x B Pin No. Name Notes/Description Data Carrier Detect Receive Data (RxD, Rx) Transmit Data (TxD, Tx) Data Terminal Ready Ground Data Set Ready Request To Send Clear To Send Ring Indicator...
  • Page 36 Revision History Appendi x C Version Description Date V3.1 Add Terminal Resistor notice Nov.2015 V3.0 For JetPort 5601 V3.0 Oct. 2015 V1.5 Update Win 7 Setup. Aug. 2014 V1.4 Add Real COM July 2012 V1.3 Remove Linux TTY driver July 2009 V1.2...
