Korenix JetPort 5601 Quick Installation Manual

A Beijer Electronics Group Company
JetPort 5601 Serial Device Server
Quick Installation Guide V1.0

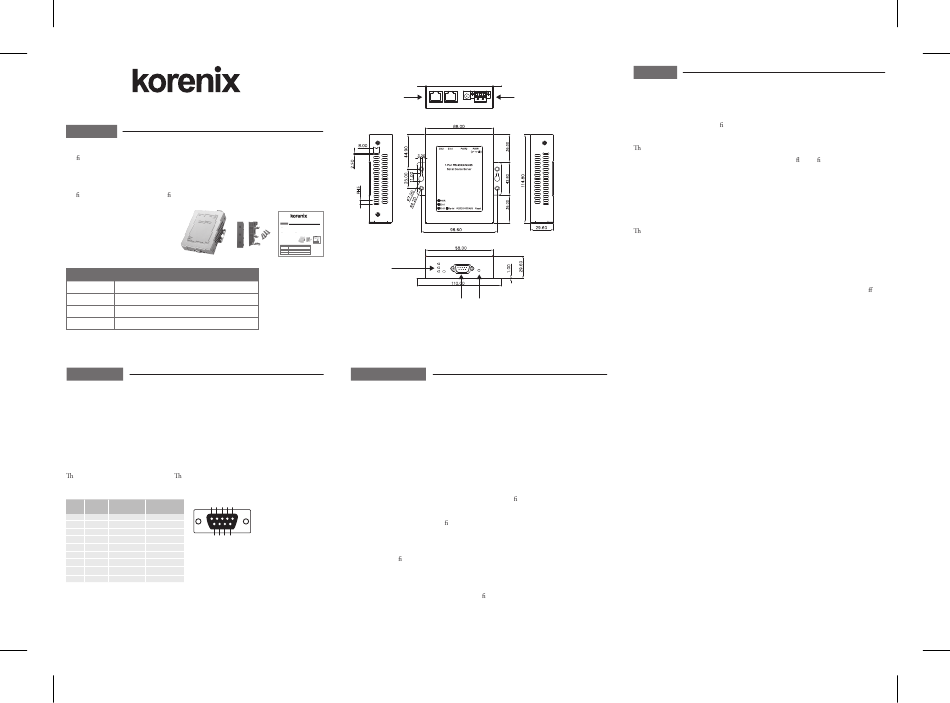

Overview
JetPort 5601 is a one-port RS232/422/485 to Redundant device server. JetPort 5601 can be
con gured by Windows utility, web browser in HTTPS, or SSH console. Additional
management features include SNMP support and Email alert. JetPort 5601 comes with
powerful windows utility, JetPort Commander, which supports device discovery, device
con guration, group IP setup, group rmware update, and monitoring functions.
Package Check List
 JetPort 5601 Serial Device Server
 Mounting kit
 Quick Installation Guide
Optional Accessories
Power Adapter
PWA1208-US Power Adapter 12VDC 0.8A, 100-240VAC US plug
PWA1208-EU Power Adapter 12VDC 0.8A, 100-240VAC EU plug
PWA1208-UK Power Adapter 12VDC 0.8A, 100-240VAC UK plug
PWA1208-AU Power Adapter 12VDC 0.8A, 100-240VAC AU plug
Installation
Mount the unit
 Wall-mount: Use the screws to mount the ear on the wall.
 Din-Rail: Screw the din-rail to the ears and mount to the rail.
Power the unit and connect to network and serial device
1. Connect the power, the unit will power on .When the unit is ready, the PWR LED turns
Green.
2. Connect JetPort 5601 to Ethernet 1 /2 by standard 10/100M Ethernet cable.
e Eth 1 /Eth 2 LED will turn Green. e Ethernet interface supports auto MDI/MDIX.
3. Connect the serial device to the unit DB9 port by the pin assignment table.
Pin # RS232 RS422/ RS485(2 wire)
1 2 3 4 5
RS485(4 wire)
1 DCD TX- DATA-
2 RXD TX+ DATA+
3 TXD RX+
6 7 8 9
4 DTR RX-
5 GND GND GND
6 DSR
7 RTS
8 CTS
9 RI
Interface Introduction
Dual Ethernet
Eth2 Eth1
A Beijer Electronics Group Company
JetPort 5601 Serial Device Server
Quick Installation Guide V1.0
Overview
JetPort 5601 is a one-port RS232/422/485 to Redundant device server. JetPort 5601 can be
con gured by Windows utility, web browser in HTTPS, or SSH console. Additional
management features include SNMP support and Email alert. JetPort 5601 comes with
powerful windows utility, JetPort Commander, which supports device discovery, device
con guration, group IP setup, group rmware update, and monitoring functions.
Package Check List
 JetPort 5601 Serial Device Server
Overview JetPort 5601 Serial Device Server A Beijer Electronics Group Company Quick Installation Guide V1.0
 Mounting kit powerful windows utility, JetPort Commander, which supports device discovery, device management features include SNMP support and Email alert. JetPort 5601 comes with con gured by Windows utility, web browser in HTTPS, or SSH console. Additional JetPort 5601 is a one-port RS232/422/485 to Redundant device server. JetPort 5601 can be
JetPort 5601 Serial Device Server  Package Check List con guration, group IP setup, group rmware update, and monitoring functions.
 Quick Installation Guide  Mounting kit  Quick Installation Guide Optional Accessories
PWA1208-UK PWA1208-EU PWA1208-US Power Adapter 12VDC 0.8A, 100-240VAC US plug Power Adapter Power Adapter 12VDC 0.8A, 100-240VAC UK plug Power Adapter 12VDC 0.8A, 100-240VAC EU plug
Optional Accessories PWA1208-AU Power Adapter 12VDC 0.8A, 100-240VAC AU plug
Power Adapter
PWA1208-US Power Adapter 12VDC 0.8A, 100-240VAC US plug
PWA1208-EU Power Adapter 12VDC 0.8A, 100-240VAC EU plug LED
PWA1208-UK Power Adapter 12VDC 0.8A, 100-240VAC UK plug
PWA1208-AU Power Adapter 12VDC 0.8A, 100-240VAC AU plug
● PWR
● Eth1
● Eth2 ● Serial
RS232/422/485
Software Setup
Install JetPort Commander
Download JetPort Commander program on the Korenix website.
Korenix website  Support  Download Center
(http://www.korenix.com/support-jetport-software.htm).
Run JetPort Setup.exe to install Windows utility, JetPort Commander.
Find the JetPort unit
JetPort Commander will broadcast the network and search all available JetPort units in the
network.
Configuring the JetPort unit
1. Click on the JetPort unit and select "Add" for further con guring the unit.
2. Select "Static IP" if you want to specify the network parameters, or select "DHCP", or
"BootP" if you want dynamic con guration for the JetPort unit.
Configuring the serial port
1. Go to 〝Conguration〞, and choose the 〝device〞 and the 〝port〞. Select 〝Serial
Settings〞 to con gure the serial parameters.
2. Select "Service mode" and map the port to Virtual COM if you select "Real/Virtual COM"
mode.
Congratulations! You have nished JetPort con gurations. You can also use web or telnet
console by the JetPort IP address.
Support
5 Years Warranty
Dual Power
PWR2 PWR1
Each of Korenix's product line is designed, produced, and tested with high industrial
standard. Korenix warrants that the Product(s) shall be free from defects in materials and
workmanship for a period of ve (5) years from the date of delivery provided that the
Product was properly installed and used.
is warranty is voided if defects, malfunctions or failures of the warranted Product are
caused by damage resulting from force measure (such as oods, re, etc.), other external
forces such as power disturbances, over spec power input, or incorrect cabling; or the
warranted Product is misused, abused, or operated, altered and repaired in an unauthorized
or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT plug in power
connector when power is on.
e product is in compliance with Directive 2002/95/EC and 2011/65/EU of the European
Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronics equipment(RoHS Directives & RoHS
2.0).
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our professional sta s are
ready to solve your problems at any time Korenix global service center's e-mail is
Reset
KoreCARE@korenix.com.
For more information and documents download please visit our website:
http://www.korenix.com/downloads.htm
