Wacom DTF-720 - OTHER User Manual

Wacom DTF-720 - OTHER User Manual

Interactive pen display
Hide thumbs Also See for DTF-720 - OTHER:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual and Installation Instructions

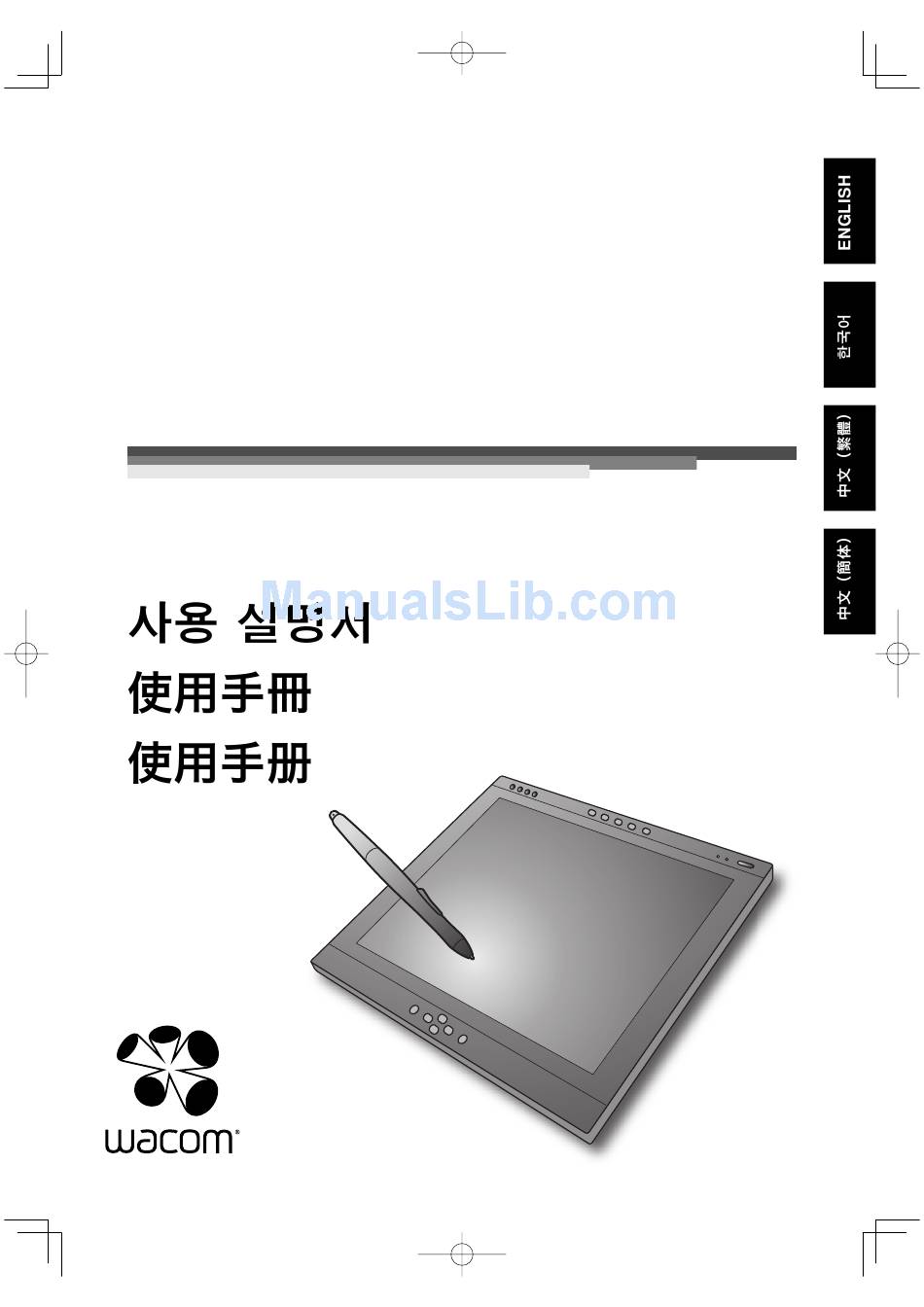

INTERACTIVE PEN DISPLAY
PL-720
Model No.: DTF-720
User's Guide
_ P L 7 2 _ U Z - 3 3 2 ( C ) _ C o v . i n d d 1 1
7 . 1 1 . 2 9 1 : 1 6 : 3 2 A M

Advertisement

Table of Contents
loading

Related Manuals for Wacom DTF-720 - OTHER

Summary of Contents for Wacom DTF-720 - OTHER

  • Page 1 INTERACTIVE PEN DISPLAY PL-720 Model No.: DTF-720 User's Guide _ P L 7 2 _ U Z - 3 3 2 ( C ) _ C o v . i n d d 1 1 7 . 1 1 . 2 9 1 : 1 6 : 3 2 A M...

  • Page 2: Table Of Contents

    PL-720 User's Guide Table of Contents Safety Precautions ..........2 Component Functions ..........5 Adjusting the stand ................6 Installing PL-720 on a Mount Arm ............6 Accessory Check .............7 Connecting PL-720 ..........8 Installing PL-720 Driver ...........10 Windows Setup ..................10 Mac OS X Setup ................... 11 Uninstalling the Tablet Driver ..............

  • Page 3: Safety Precautions

    Inside this product there are several store where you purchased it or to the high-voltage parts. Persons other than Wacom Customer Support Center for professional service personnel should repair service. n e v e r o p e n t h e b a c k c o v e r o f t h i s -Please do not connect or disconnect product.
  • Page 4 Caution Do not use organic solvents to clean When connecting the power plug this product. When plugging the power adapter into an When cleaning the product, never use electrical outlet, also connect a grounded such organic solvents as alcohol. Such wire.
  • Page 5 Precautions Please take the following precautions to protect the health of your eyes. 1 Wacom Company, Ltd. holds the copyright to the auxiliary tablet. When using the product, make sure that the 2 The unauthorized duplication or reproduction in room is suffi...

  • Page 6: Component Functions

    Component Functions Front Menu Button Button Status LED Button The Status LED becomes blue to ENTER Button indicate pen activity. Power LED An orange light indicates that power is being supplied. A blue light indicates that power and a video signal is being supplied.

  • Page 7: Adjusting The Stand

    Adjusting the Stand Pull up on the stand adjustment lever. Caution Please hold the stand carefully as you adjust it to prevent injury or damage to the product. Lower the stand carefully. Installing PL-720 on a Mount Arm This product conforms to the Video Electronics Standard Association’s (VESA) Flat Panel Monitor Physical Mounting Interface Standard (FPMPMI).

  • Page 8: Accessory Check

    Accessory Check Power Adapter User's Guide (This booklet) Power Cable/AC Power Cord User's Guide Analog RGB Cable Tablet Driver CD-ROM Application CD-ROM Pen Tether USB Cable Adapter Plug (US type) Adapter Plug (UK type) Do no throw the box away; it is useful for the storage and transport of the product. 1 _ P L 7 2 _ U Z - 3 3 2 ( C ) _ E n .

  • Page 9: Connecting Pl-720

    Connecting PL-720 Be sure that the power is off on both your computer and the product. Connect the Analog RGB cable to your computer’s display port. Connect the power adapter to the power cable and connect the DC power connector to the DC power input terminal.
  • Page 10 * Please use the proper power cord or adapter plug for your region. 1 _ P L 7 2 _ U Z - 3 3 2 ( C ) _ E n . i n d d 9 7 . 1 1 . 2 7 6 : 5 6 : 1 1 P M...

  • Page 11: Installing Pl-720 Driver

    Click Accept. When the installation fi nishes, click OK. Next, install the button driver. Click NEXT in the WELCOME TO WACOM BUTTON DRIVER VER.x.xx SETUP dia log. The LICENSE AGREEMENT dialog will appear. Click Next. Follow the prompts to install the driver software.

  • Page 12: Mac Os X Setup

    CD-ROM and double-click on Install or Install.app. After installing OS X, input your password. Click on Install Wacom Tablet and installation will begin. Thereafter, follow the screen instructions and continue the installation process. If during processing, the identity confi rmation dialog box displays, input your password *.

  • Page 13: The Pl-720 Display

    The PL-720 Display The Auto-Adjust Function In order to ensure optimal display image quality, this product utilizes the Auto-Adjust function. When the Auto-Adjust function is operating, it may take a short time before the screen displays properly. The settings initiated by Auto-Adjust are saved in the display. If the Auto-Adjust function is operating, the horizontal and vertical positions as well as the phase and pitch of the display are adjusted automatically when the display mode is received.

  • Page 14: Blurring And Protrusion Of The Picture From The Lcd Panel

    Blurring and Protrusion of the Picture from the LCD Panel This setting is effective when the product and computer are connected by a RGB cable. Depending on the type of computer and graphics board, the Auto-Adjust function is sometimes not able to operate at full power, resulting in the picture blurring and protruding from the LCD panel.

  • Page 15: On-Screen Display (Osd) Menu Buttons

    On-Screen Display (OSD) Menu Buttons MENU ENTER Menu button ENTER Button buttons buttons Opens or closes the OSD Activates or deactivates the selected OSD You can select an option that can Menu. menu item. be activated.After activatng a selected option, press the + button to increase a selected item value, and press the - button to decrease Using the OSD Menu...
  • Page 16 Types of OSD Menus Contrast Language Select to choose a Select to increase language option for or decrease image the OSD: English, contrast. Deutsch, Francais, Cannot be Espanol, Italiano, or adjusted if DIRECT Japanese. is selected in the Color menu. Brightness Backlight Select to increase...
  • Page 17 Phase Horizontal Center Select to reduce or Select to move the eliminate horizontal screen image left or distortion lines. right. To automatically To automatically adjust, use the Reset adjust, use the Reset menu. menu. Pitch Vertical Center Select to reduce or Select to move the eliminate vertical screen image up or...

  • Page 18: Basic Operation

    Basic operation How to use the Tablet Buttons The tablet buttons increase your work efficiency by making navigating through documents and websites quick and simple. The tablet buttons can be used in Windows-based PCs. To use the tablet buttons, install the button driver to your PC.

  • Page 19: Using The Control Panel

    Using the Control Panel Change the settings for the pen and adjust the pointer and pen tip positions with the control panel. *When connecting and using multiple tablets, see page 22. Displaying the Control Panel Opening the Control Panel in Windows Click on the Windows Start button, go to All Programs (P) or Programs (P), open Tablet and select Pen Tablet Opening the Control Panel in Macintosh...
  • Page 20 Switch and Button Settings Function Names Description Click Performs the same operations as a normal mouse. Right Click Middle Click Simulates a 4th mouse button click, which on Windows systems typically 4th click(Back) issues the Back command in browser applications. Not available on Macintosh systems.
  • Page 21 Function Names Description Journal This function opens Microsoft Journal, an application for Windows Vista and tablet PC. Open/Run Opens an application or fi le. This function will open a dialog box. Click Browse to select an application or file. The selection you make appears in the Application To Run box. Click "OK"...

  • Page 22: Synchronizing The Positions Of The Pen Tip And Pointer

    Synchronizing the Positions of the Pen Tip and Pointer Make the necessary adjustments so that when the pen nib is brought near the LCD screen, the pointer displays properly in the area where the pen nib is placed. *Please refer to pages 12 and 13 to make screen image adjustments. *Please refer to page 22 when using multiple Interactive Pen Displays.

  • Page 23: Using Multiple Interactive Pen Displays

    Using Multiple Interactive Pen Displays When multiple Interactive Pen Displays are connected and are to be used, it is necessary to set up the pen and calibrate for each Interactive Pen Displays individually. Please follow the procedures below to carry this out. Bring the pen tip near the display for which the setup is to take place.

  • Page 24: Supplementary Information

    Supplementary Information Removing Stains If the product casing or pen becomes soiled, wipe off with a clean, soft cloth. If this fails to remove the stains, soak a clean, soft cloth with a water-diluted detergent mixture, wring thoroughly and wipe off. If the protective covering for the LCD display becomes soiled, wipe with a dry, soft cloth.

  • Page 25: Troubleshooting

    Troubleshooting Display Troubleshooting If One of These Messages Should Appear... Message What to Do Prior to connecting the product, if you have a monitor that you have been using, connect it and then adjust the horizontal frequency to 30–80 kHz and the vertical frequency to 50 –75 Hz.

  • Page 26: Pen Troubleshooting (For Both Windows And Macintosh)

    What to Do When a replacement computer Installing the newest version of tablet driver may resolve this problem. The is purchased or new software newest tablet driver can be downloaded from the Wacom homepage. is used, the tablet cannot be >http://tablet.wacom.co.jp/ used.

  • Page 27: Troubleshooting For Macintosh

    Troubleshooting for Macintosh Condition What to Do -Check the connection of the USB connector. Connect directly to the computer’s USB port. E v e n w h e n c o n n e c t e d t o -If equipped with a USB card, the system software has probably not been t h e U S B p o r t , t h e p e n i s installed properly.

  • Page 28: Obtaining Technical Support

    (proof of purchase) or if issued, the warranty card from your local reseller or distributor. Wacom's Limited Warranty Policy for Asia Pacifi c can be found on the Asia Pacifi c website at: www.wacom-asia.com/technical/warranty/img/Limited_Warranty_AP.pdf...
