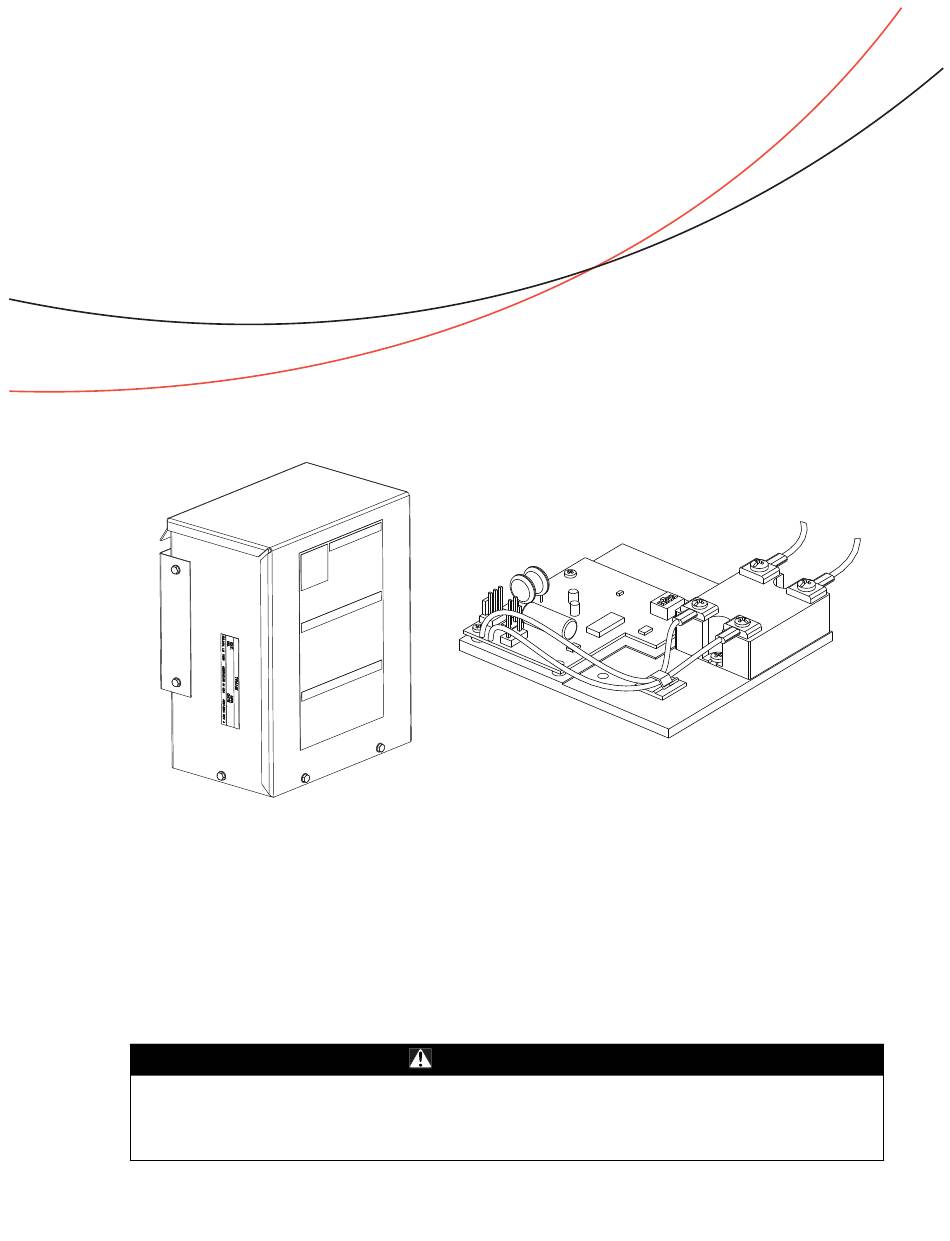

Installation Instructions
Head Pressure Control Kit
Model Numbers 60 Hz Used With:
BAYLOAMU01
TTA/TWA073D, TTA/TWA090D
BAYLOAMU02
TTA120D/E/F , TWA120D, TTA150E,
TTA180E/F , TWA180E, TTA240E/F ,
TWA240E, TTA300F
Only qualified personnel should install and service the equipment. The installation, starting up, and
servicing of heating, ventilating, and air-conditioning equipment can be hazardous and requires specific
knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could
result in death or serious injury. When working on the equipment, observe all precautions in the literature
and on the tags, stickers, and labels that are attached to the equipment.
January 2013
50 Hz Used With:
TTA/TWA061D, TTA/TWA076D
TTA086D, TTA101D/E/F , TWA101D, TTA126E,
TTA156E/F , TWA156E, TTA201E/F , TWA201E,
TTA251F
SAFETY WARNING
ACC-SVN118C-EN
