Omron Large Cuff Manual

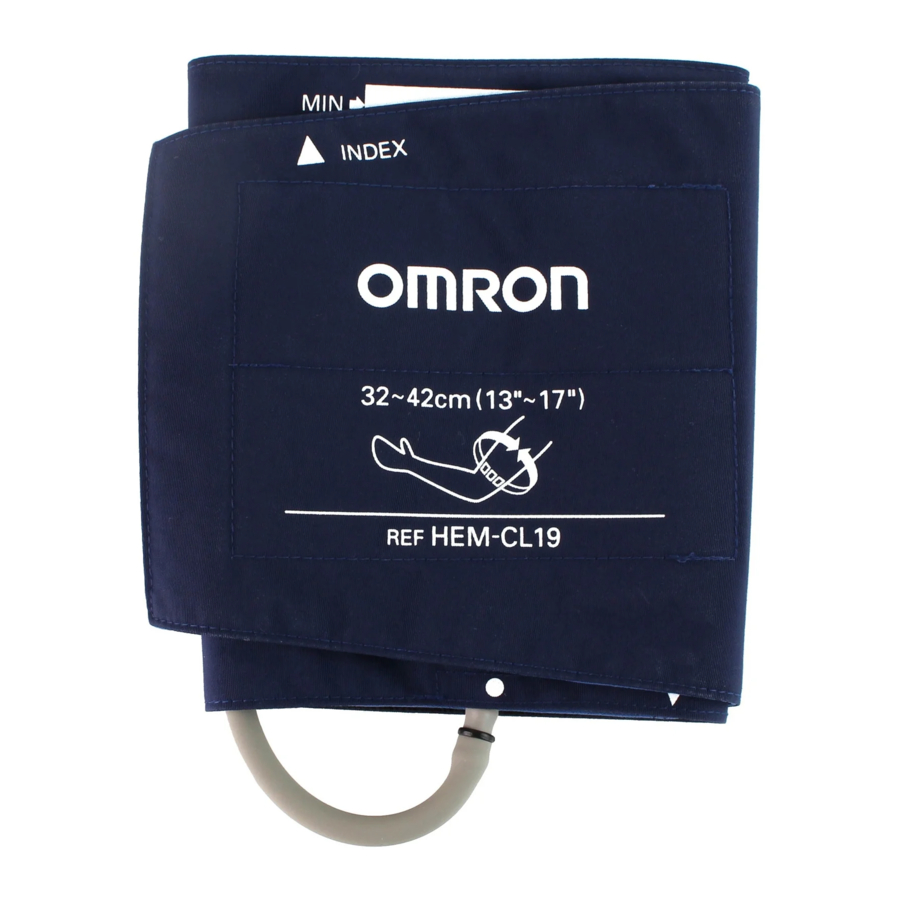

This cuff is designed to meet the needs of individuals with an arm circumference size of 13'' to 17''. The Omron Large Cuff is intended for use with Omron digital blood pressure monitors sold with the D-ring style cuff.

HOW TO USE

To connect the large cuff to your Omron automatic or manual digital blood pressure monitor:

Simply remove the existing arm cuff by disconnecting the air plug from the monitor. To disconnect arm cuff, grasp the air plug and pull, do not pull on air tube.
Connect the air plug from the large cuff into the air jack on the monitor.

Do not block the end of the air release valve. This device is necessary to maintain a proper deflation rate. Blocking the air release valve could result in erroneous readings.

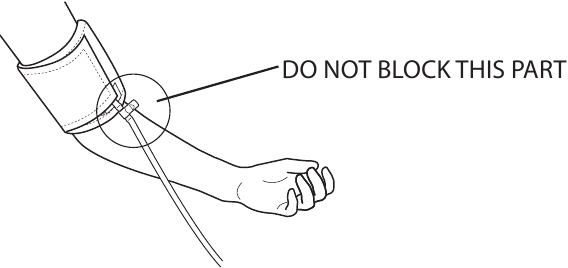

Preventing blockage of the air release valve

If you have an automatic inflating unit and you notice it takes more than 25 seconds to inflate the cuff, use the optional AC adapter or replace the batteries. Weak batteries will extend the inflation time and possibly cause arm discomfort.

HOW TO CORRECTLY APPLY THE PRODUCT

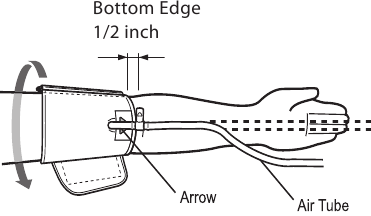

Put your left arm through the cuff loop. Apply the cuff to your left upper arm so the arrow is centered on the inside of your arm and aligned with your middle finger. The air tube runs down the inside of your arm.
The bottom of the cuff should be approximately 1/2" above your elbow.
Wrap the cuff firmly in place around your arm using the closure strip.
