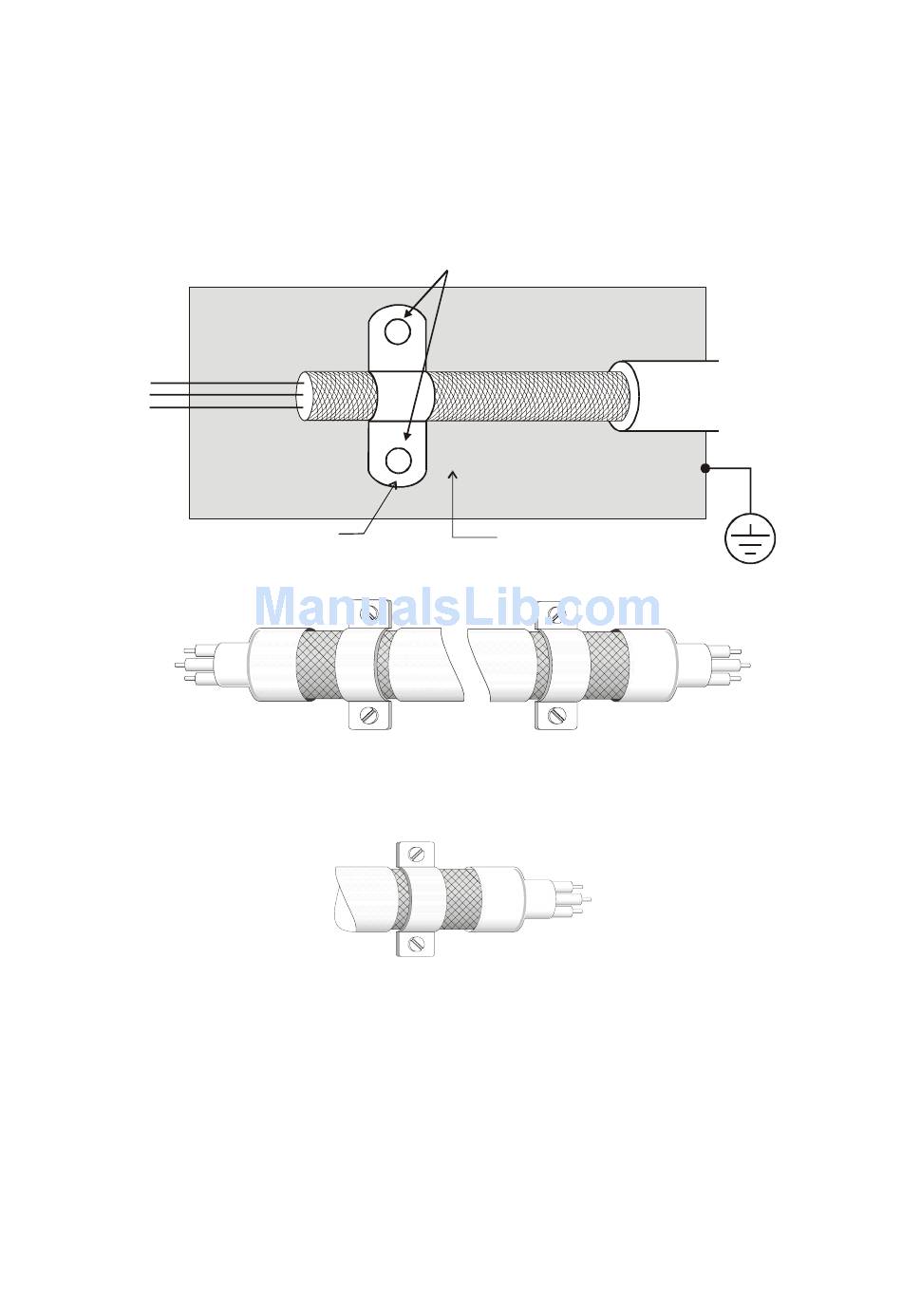

Use the cable with shielding (double shielding is the best).
2.
The shielding on both ends of the motor cable should be grounded with the minimum
length and maximum contact area.
3.
Remove any paint on metal saddle for good ground contact with the plate and shielding.
Remove any paint on metal saddle for good ground contact with
the plate and shielding.
Revision August 2008, SE09, SW V2.61
saddle
Saddle on both ends
Saddle on one end
Appendix B Accessories|VFD-S Series
the plate with grounding
B-5
