Chapter 1 Introduction; Receiving And Inspection; Nameplate Information; Model Explanation - Delta Electronics Network Device VFD-S User Manual

1.1 Receiving and Inspection

This VFD-S AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
Check to make sure that the package includes an AC motor drive, the User
Manual/Quick Start and CD, dust covers and rubber bushings.
Inspect the unit to assure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

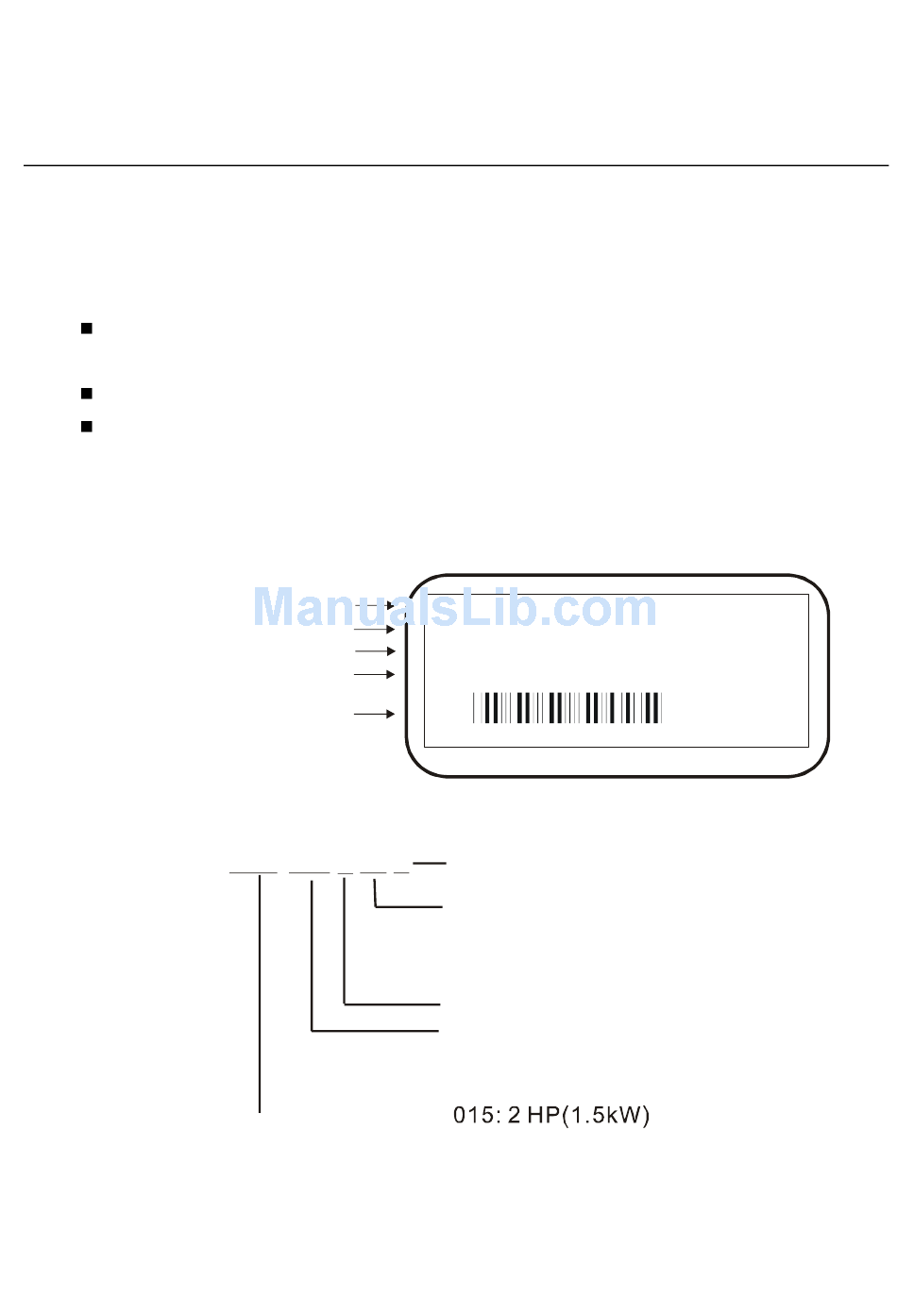

1.1.1 Nameplate Information

Example for 1HP/0.75kW 3-phase 230V AC motor drive
Output Frequency Range
Serial Number & Bar Code

1.1.2 Model Explanation

Revision August 2008, SE09, SW V2.61
AC Drive Model
Input Spec.
Output Spec.
VFD 007 S 23 A
Series Name

Chapter 1 Introduction

MODEL : VFD007S23A
INPUT : 3PH 200-240V 50/60Hz 5.1A
OUTPUT : 3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP
Frequency Range : 1-400Hz
007S23A0T7010001
DELTA ELECTRONICS INC.
Version Type
Input Voltage
11:Single phase 115V
21:Single phase 230V
23:Three phase 230V
43:Three phase 460V
S Series
Applicable motor capacity
002: 0.25HP(0.2kW)
004: 0.5HP(0.4kW)
007: 1 HP(0.7kW)
022: 3 HP(2.2kW)
MADE IN XXXXX
