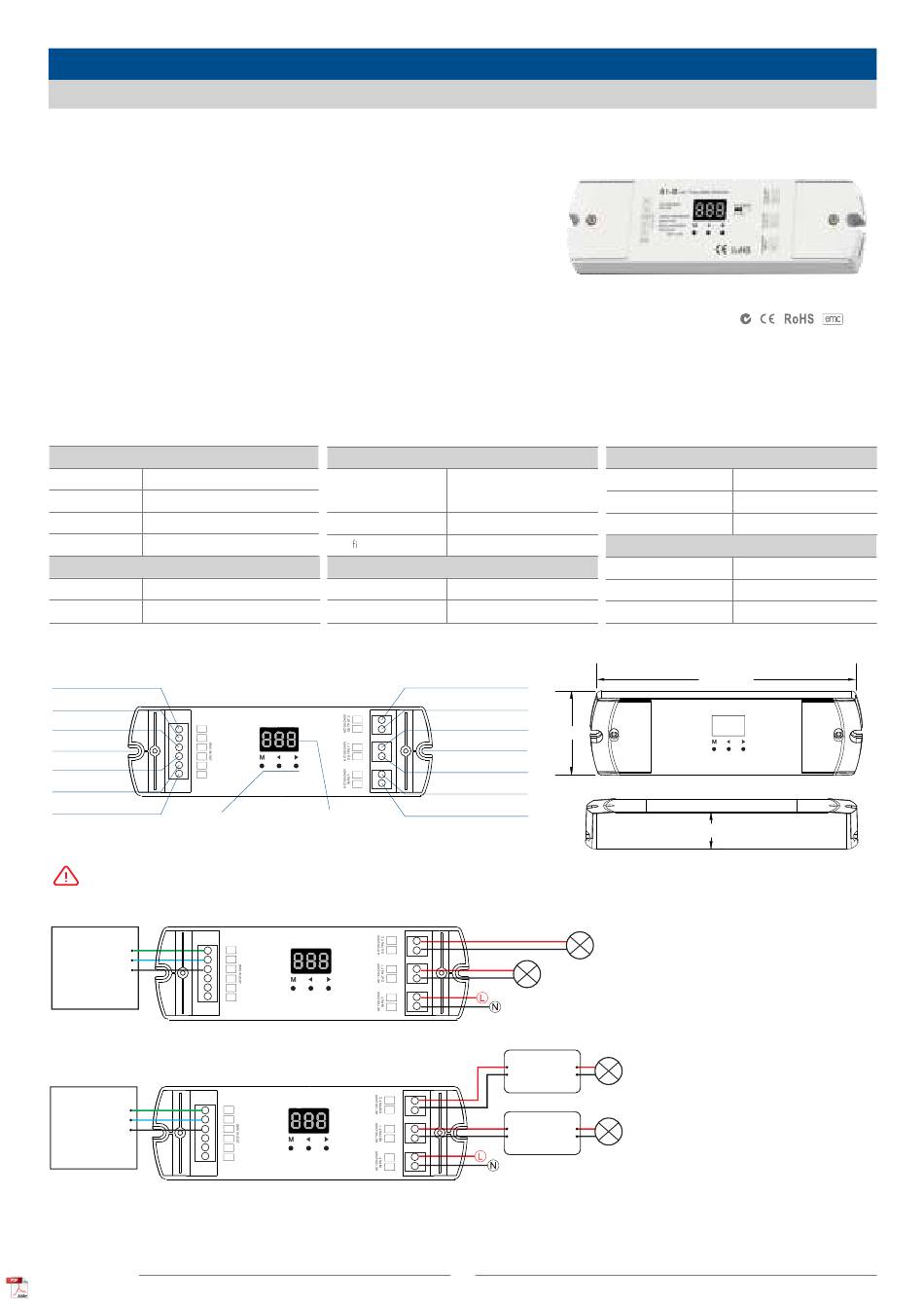

SKYDANCE S1-D User Manual

AC Triac DMX Dimmer
Model No.: S1-D
2 Channel/RDM/Stand-alone function/Leading edge or trailing edge/Numeric display
Features
● AC phase-cut mosfet dimmer with DMX512 function, two channel output.
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.
● 1/2 DMX channel output selectable.
● Reverse-phase dimming or forward-phase dimming selectable.
● Minimum brightness set from 1% to 40%.
● Stand-alone dynamic mode and 2 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Over-heat protection, recover automatically.
Technical Parameters
Input and Output
Input voltage
100-240VAC
Output voltage 2 x (100-240)VAC
Output current
2CH, 1A/CH
Output power
2 x (100-240)W
Dimming data
Dimming level
256 levels
Dimming range
0 -100%
Mechanical Structures and Installations
DMX input +
DMX input -
GND
D+
D-
Installation rack
GND
D+
DMX output +
D-
GND
DMX output -
GND
Setting key
Wiring Diagram
Caution:
Please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise this controller will be damaged.
● Connect with dimmable LED light
DMX+
DMX-
GND
DMX Master
● Connect with Triac dimmable LED driver
DMX+
DMX-
GND
DMX Master
Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used,
the output power parameters can not be used.
In addition, the maximum surge current of the dimmer is 60A, the sum of surge current of multiple dimmable LED drivers should not exceed 2 times. otherwise,
the product will be overloaded and damaged.
User Manual Ver 1.0.6
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certi cation
Warranty
Warranty
L2
N2
L1
N1
L
N
Digital display
L2
N2
D+
D-
GND L1
D+ N1
D-
GND L
N
L2
D+ N2
D-
L1
GND
D+ N1
D-
GND L
N
Environment
Operation temperature
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Case temperature (Max.)
EN 62368-1:2020+A11:2020
IP rating
CE,EMC,LVD
Package
Size
5 years
Gross weight
CH2 AC L output
CH2 AC N output
CH1 AC L output
50mm
Installation rack
CH1 AC N output
AC L input
AC N input
Dimmable
LED light
AC100-240V Input
Dimmable
LED Driver
LED light
Dimmable
LED Driver
AC100-240V Input
1
LVD
Ta: -30 O C ~ +55 O C
Ta: +85 O C
IP20
L175x W54 x H27mm
0.135kg
170mm
23mm
