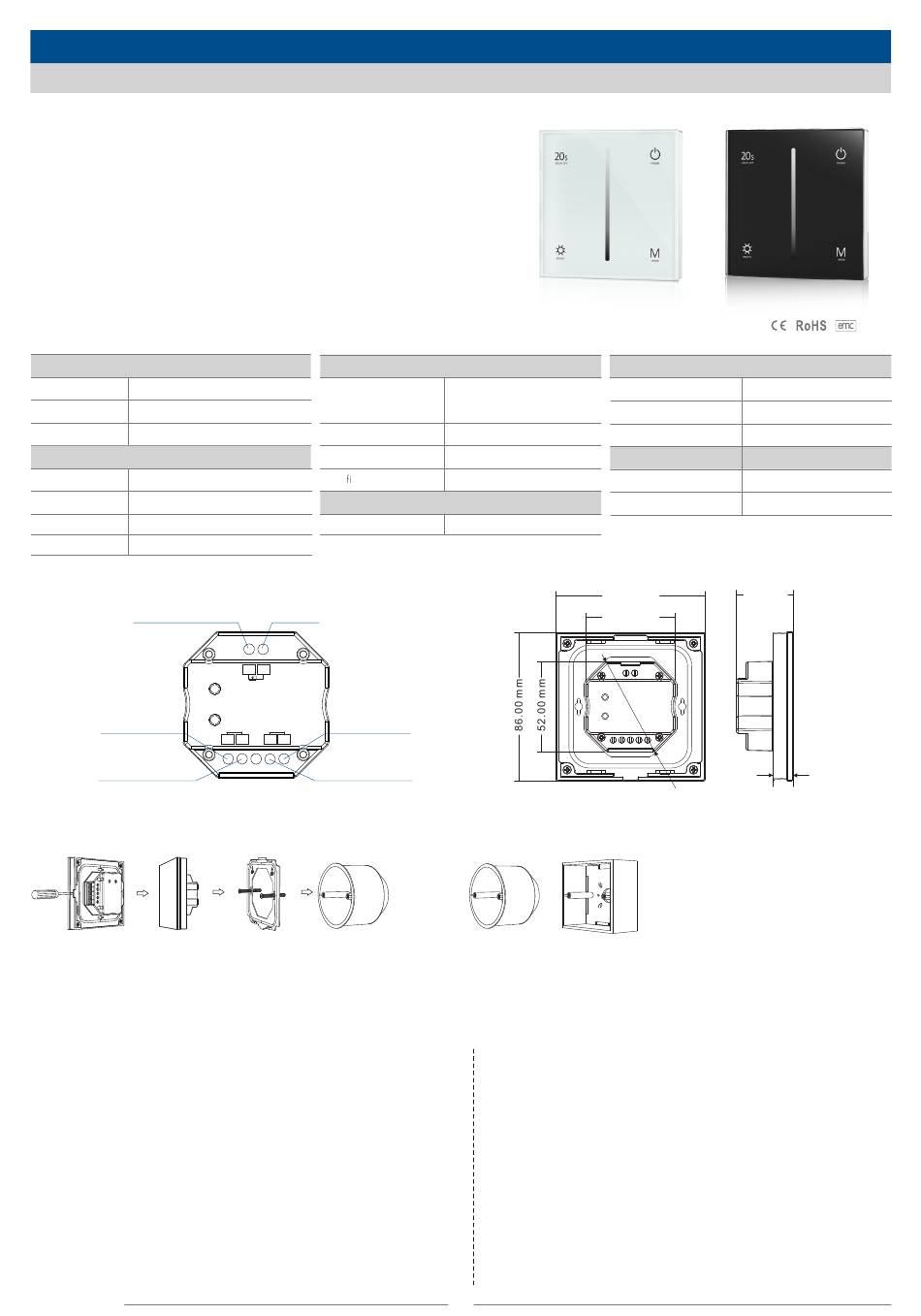

SKYDANCE T18 Manual

0-10V Touch Glass Panel Dimmer
Model No.: T18
1 zone/Touch glass panel/Brightness slide/Wireless remote control

Features

● Touch panel 0-10V dimmer, output 1 channel 0-10V signal.
● Output connect with 0/1-10V dimmable driver.
● Ultra sensitive high strength glass touch panel with touch slide in the middle.
● Compatibility with RF 2.4G dimming remote control
● Touch keys with LED indicator.
● White & Black glass panel available.

Technical Parameters

Input and Output
Input voltage AC100-240V
0-10V (50mA)
Output signal
Output current
20mA/CH
Dimming data
Input signal Touch key + RF 2.4GHz
RF Control distance 10m(Barrier-free space)
Dimming gray level 256 levels
Dimming range 0 -100%

Mechanical Structures and Installations

0-10V signal output
AC N output
AC L output
Installation diagram:
Touch panel
Uninstall

Match Remote Control (two match ways)

The 0-10V touch panel dimmer can also match with the RF dimming remote (optional).
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use On/Off key
Match:
Turn on light, turn off, immediately press the On/Off key of the panel for 5s,
then press on/off key (single zone remote) or zone key (multiple zone remote)
of the RF remote within 5s.
The LED indicator fast flash 3 times means match is successful.
Delete:
Turn on light, turn off, immediately press the On/Off key of the panel for 10s to
delete all match,
The LED indicator fast flash 6 times means all matched remotes were deleted.
User Manual Ver 1.1.3
.
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certi cation
Warranty
Warranty
GND
-
+
0-10V OUT
T18
AC L input
AC OUT AC IN
N L1 N L
AC N input
Baseplate
Base
Environment
Operation temperature
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Case temperature (Max.)
EN 62368-1:2020+A11:2020
IP rating
ETSI EN 300 328 V2.2.2 Package
CE,EMC,LVD,RED
Size
Gross weight
5 years
86.00 mm
52.00 mm
Typical base as below:
European style
86 size
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again,
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again,
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
1
O
Ta: -30 C ~ +55
O
Ta: +65 C
IP20
L112x W112 x H50mm
0.238kg
33.00 mm
59.00 mm 11.50 mm
LVD
