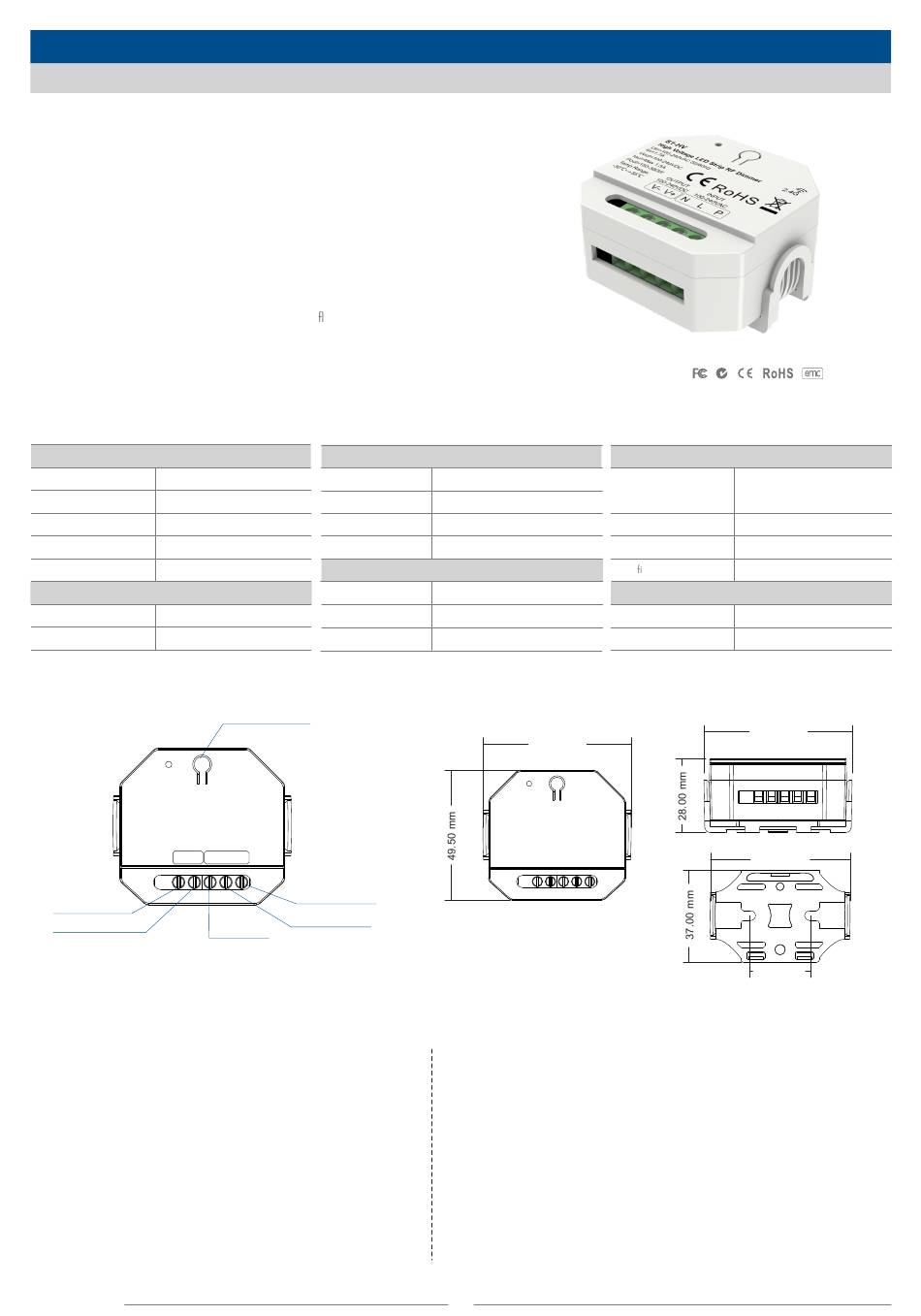

SKYDANCE S1-HV User Manual

High voltage LED Strip RF dimmer
Model No.: S1-HV
1
Channel
/
Step-less Dimming
/
Push-Dim
/
Wireless Remote Control

Features

● High voltage LED
Strip RF 2.4G dimmer, can control maximum about 25 meters of
high voltage LED strip, different LED strip may have difference.
● Match with RF 2.4G single zone or multiple zone single color remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to
another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● 4096 levels 0-100% dimming smoothly without any ash.
● Light on/off fade time 3s selectable.
● Connect with external AC push switch to achieve on/off and 0-100% dimming function.

Technical Parameters

Input and Output
Input voltage 100-240VAC
Input current
1.7A
100-240VDC
Output voltage
Output current
Max 1.5A
Output power 150-360W
Environment
Operation temperature
O
Ta: -30 C ~ +55
O
Tc: +85 C
Case temperature (Max.)
Mechanical
Structures
and
Installations
OUTPUT
100-240VDC
V- V+
Output LED-
Output LED +
Match remote control
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the Match key
Match:
Short press match key,
immediately press on/off key (single zone remote) or zone key
(multiple zone remote) on the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s,
The LED indicator fast flash a few times means all matched remotes
were deleted.
User Manual Ver 1.0.0
Dimming data
Input signal
Dimming gray scale
Dimming range
PWM Frequency
Package
Size
Gross weight
O
C
Match key
INPUT
100-240VAC
N L P
AC Push input
AC L input
AC N input
RF 2.4GHz + Push Dim
4096 (2^12) levels
0
-100%
2KHz

L56xW56xH35mm
0.067kg
56.00 mm
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
1
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED) ETSI EN 300 328 V2.2.2
Certi cation
CE,EMC,LVD,RED
Warranty
Warranty 5 years
56.00 mm
56.00 mm
25.00 mm
LVD RED
