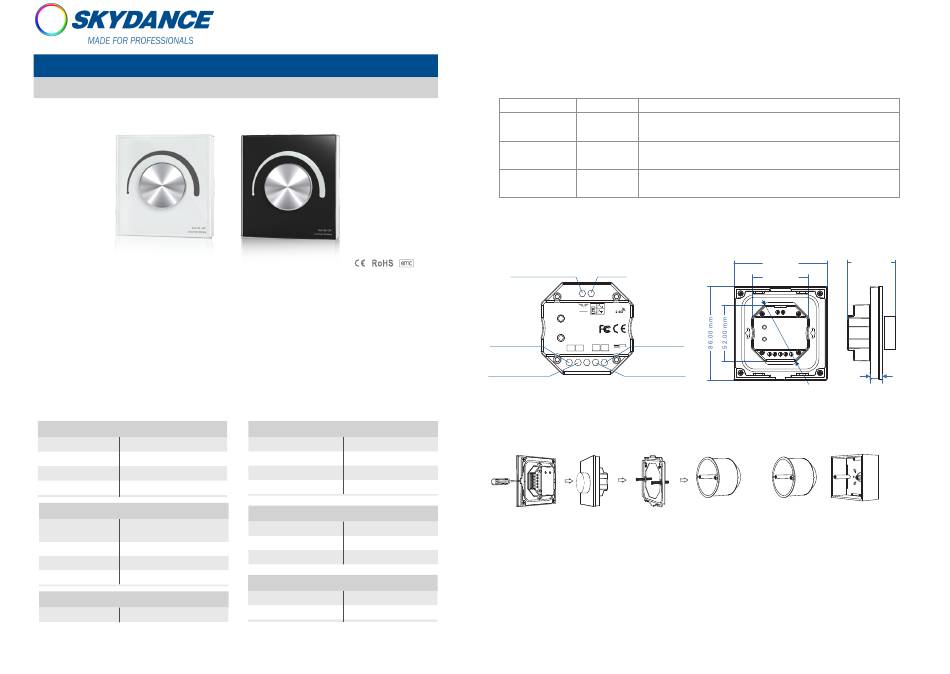

SKYDANCE S1-K Quick Start Manual

AC Triac Rotar y Glass Panel Dimmer
Model No.: S1-K
Rotary dimming/Glass panel/Leading edge or trailing edge/Wireless remote control
Features
● Rotar y glass panel AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Rotate knob to change brightness, support push and long push operation.
● 256 levels 0-100% dimming smoothly without any flash.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Light on/off fade time 3s selectable.
● Compatibility with RF 2.4G single zone or multiple zone dimming remote control
● Over-heat / Over-load protection, recover automatically.
● White & Black glass panel available.
Technical Parameters
Input and Output
Input voltage AC100-240V
Output voltage
AC100-240V
Output current
Max 1.5A
Output power
150-360W
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD) EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Certification
Warranty
5 years
Warranty
User Manual Ver 1.1.1
LVD
.
Dimming data
Input signal
Rotary knob + RF 2.4GHz
(Barrier-free space)
RF Control distance 10m
Dimming level
256 levels
Dimming range
0 - 100%
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +85 O C
IP rating
IP20
Weight
Net weight 0 . 181k g
Gross weight 0 . 234k g
Compatible Load Types
Load Type Maximum Load
Due to variety of LED lamp designs, maximum number of LED lamps
200W @ 220V
Dimmable LED lamps
is further dependent on power factor result when connected to dimmer.
100W @ 110V
Maximum permitted number of drivers is 200W divided by driver nameplate
200W @ 220V
Triac Dimmable
LED drivers 100W @ 110V power rating, and make sure the surge current is no more than 2 times 65A.
Incandescent lighting,
400W @ 220V
HV Halogen lamps
200W @ 110V
Mechanical Structures and Installations
DIP switch for Leading edge
Match key or trailing edge phase-cut select
ON
Match
Min set
S1-K
AC Triac RF Dimmer
Uin=100-240VAC
Iin=1.5A
Uout=100-240VAC
Iout=1.5A
-
Pout=150 360W
RoHS
AC L input
AC L output Temp Range: -30℃~+55℃
INPUT 0.5-2.0mm²
OUTPUT
L N N L
4-5mm
AC N input
AC N output
Installation diagram:
Touch panel Baseplate
Uninstall
Knob function
● Push: Turn on or off light.
After turn on light:
● Rotate: Rotate knob to adjust brightness, 2.5 turns, 50 levels.
● Long push(1-6s): Continuous 256 levels brightness adjustment.
www.iskydance.pl
Remarks
48.00 mm
86.00 mm
52.00 mm
59.00 mm 11.50 mm
Typical base as below:
European style
Base 86 size
