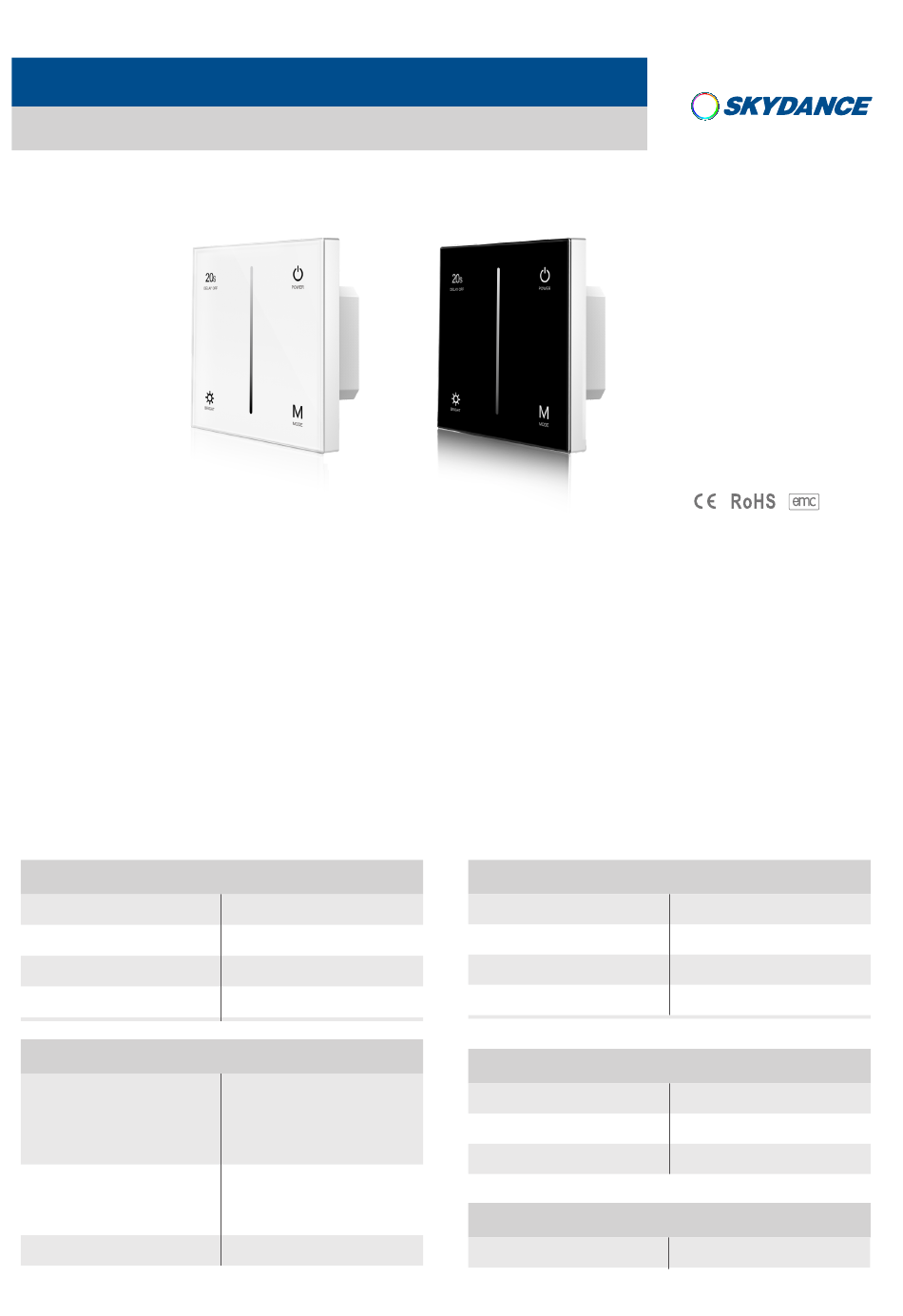

AC Triac Touch Glass Panel Dimmer
Model No.: S1-T
Touch glass panel/Brightness slide/Leading edge or trailing edge/Wireless remote control
Features
● Touch glass panel AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Ultra sensitive high strength glass touch panel with touch slide in the middle and backlighting.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Compatibility with
Skydance's 2.4G dimming remote control
Technical Parameters
Input and Output
Input voltage
Output voltage
Output current
Output power
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
User Manual Ver 1.0.2
AC100-240V
AC100-240V
Max 1.2A
120-288W
EN 55015:2013
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61347-2-11:2002
EN 61347-1:2015
EN 62493:2015
CE,EMC,LVD
www.iskydance.com
.
Dimming data
Input signal
RF Control distance
Dimming level
Dimming range
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
Warranty
Warranty
LVD
Touch key + RF 2.4GHz
30m
256 levels
0 - 100%
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
5 years
Page 1
Advertisement
Related Manuals for SKYDANCE S1-T
Summary of Contents for SKYDANCE S1-T
- Page 1 ● Ultra sensitive high strength glass touch panel with touch slide in the middle and backlighting. ● Leading edge dimming or trailing edge dimming set by dip switch. ● Compatibility with Skydance’s 2.4G dimming remote control Technical Parameters Input and Output...
- Page 2 S1-T AC Triac Touch Glass Panel Dimmer Mechanical Structures and Installations 11.5mm 86mm AC N output AC L input OUTPUT INPUT AC100-240V AC100-240V AC L output AC N input DIP switch for Leading edge or trailing edge phase-cut select 45.5mm...
- Page 3 ● Connect with Triac dimmable LED driver OUTPUT INPUT AC100-240V AC100-240V LED light Triac Dimmable LED Driver AC100-240V AC100-240V Output Input Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used, other wise, the product will be overloaded and damaged.
- Page 4 S1-T AC Triac Touch Glass Panel Dimmer Leading edge or trailing edge dimming setting Select leading edge(for ward-phase) dimmer or trailing edge(reverse-phase) dimmer according to dimmable LED light or driver. Reverse-phase Forward-phase Caution: before power on, you must confirm the selection of dip switch.
