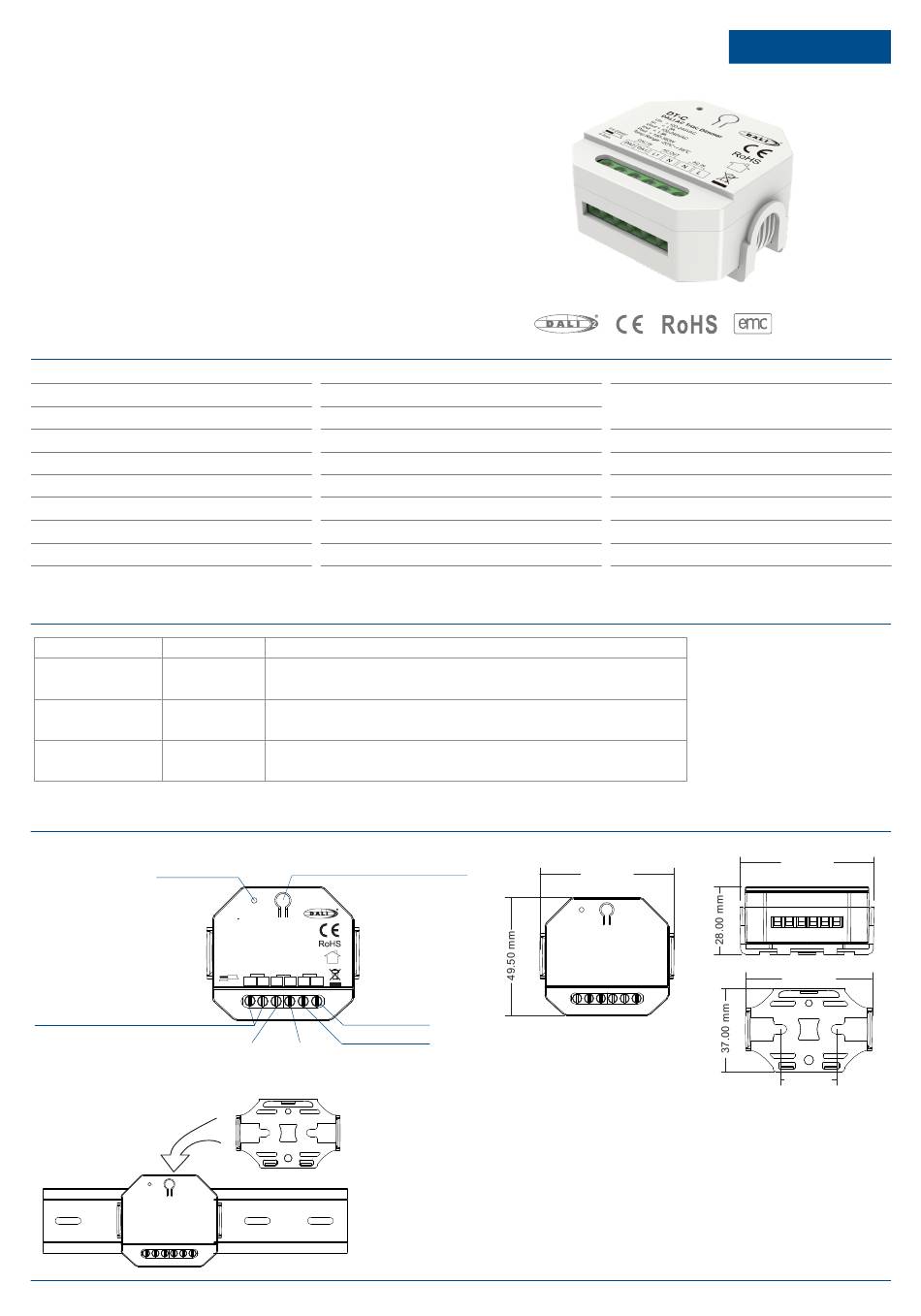

SKYDANCE DT-C Manual

DT-C
DALI AC Triac Dimmer
● AC phase-cut mosfet DALI dimmer, one DALI address, one channel output.
● Trailing edge dimmer.
● The minimum brightness is adjustable.
● DALI-2 certified, in accordance with DALI standard protocol 101, 102, 205 (IEC 62386)
and in compliance with DALI products from other international incorporation.
● DALI address can be automatically assigned by DALI master.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
● To dim and switch single color dimmable LED lamps,
traditional incandescent and halogen lights.
● Over-heat protection, Overload protection, recover automatically.
Technical Parameters
Input and Output
Input voltage
100-240VAC
Output voltage
100-240VAC
Input current
1.5A
Output current
1.5A
Output power
150-360W
Warranty and Protection
Warranty 5 years
Over-heat, Over-load
Protection
Compatible Load Types
Load Type
Maximum Load
200W @ 220V
Dimmable LED lamps
100W @ 110V
Triac Dimmable
200W @ 220V
LED drivers
100W @ 110V
Incandescent lighting,
400W @ 220V
HV Halogen lamps
200W @ 110V
Mechanical Structures and Installations
LED indicator
One groups of DALI signal input
DALI bus no need distinguish
plus-minus polarity
AC L output
Installation way
User Manual Ver 1.0.0
2024.4
Dimming date
Input signal
Dimming level
Dimming range
Environment
Operation temperature
Case temperature (Max.)
IP rating
Due to variety of LED lamp designs, maximum number of LED lamps
is further dependent on power factor result when connected to dimmer.
Maximum permitted number of drivers is 200W divided by driver nameplate
power rating, and make sure the surge current is no more than 2 times 65A.
Min brightness set key
DT-C
DALI AC Triac Dimmer
Uin = 100-240VAC
= 1.5A
Iin
Uout = 100-240VAC
Iout = 1.5A
Pout = 150-360W
Temp Range: -20℃~+55℃
DALI IN AC OUT AC IN
0.5-2.0mm²
DA2 DA1 L1 N N L
4-5mm
AC L input
AC N input
AC N output
Note:
Installation clip
1. DO NOT install with power applied to device.
2. The installation must be installed or removed by a professional electrician.
3. Please keep the device out of the reach of children.
4. Please keep away from water, humid or hot environment.
DALI, AC Push
256 level
0-100%
O O
Ta: -20 C ~ +55 C
O
Tc: +85 C
IP 20
Remarks
56.00 mm
DALI+ Triac
LVD RED
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard (LVD) EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
Radio Equipment (RED)
DALI-2, CE, EMC, LVD, RED
Certification
Package
Size
L60
x W60 x H40mm
Gross weight
0.059kg
56.00 mm
56.00 mm
25.00 mm
