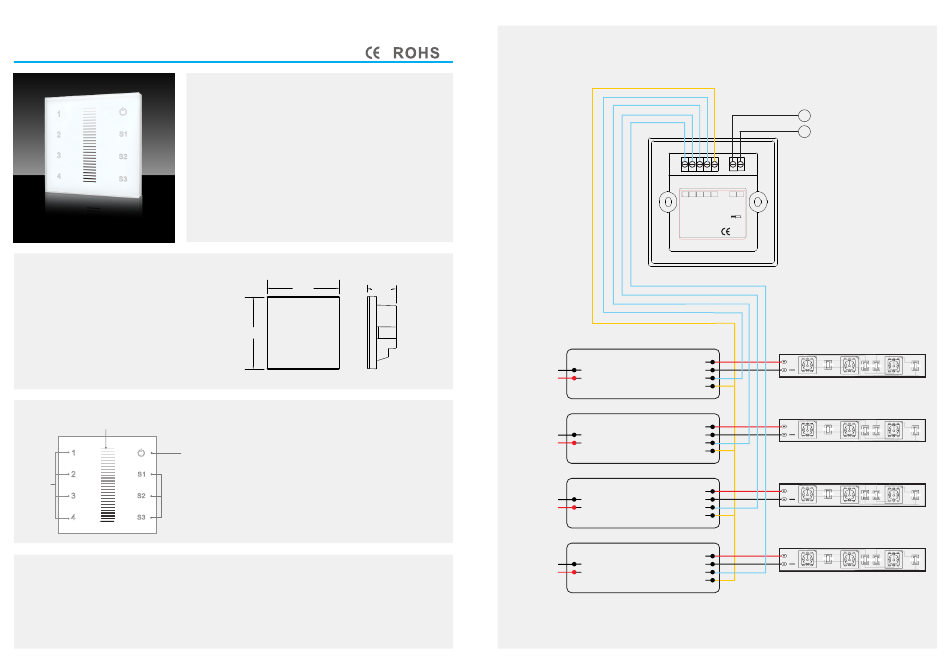

SKYDANCE T18-1 Manual

Wall Mounted Touch Panel
4 Zone 0/1-10V Dimmer
Summar y
● 4 zone 0/1-10V dimmer, output 4ch 0/1-10V signal.
● Output connect with 0/1-10V dimmable power supply
● Ultra sensitive high strength glass touch panel with
● Reliable and stable switch and dimming control without
● 256 levels brightness adjustment.
● Can match remoter optional, realize remote dimming.
● Adopt 2.4GHz wireless technology, compatible with
T18-1

Technical Parameters

Dimension
● Input voltage : AC85~265V
●
Output signal: 4ch x 0/1-10V
● Grey levels: 4096
● Dimming range: 0~100％
● Remote distance: 30m
● Working temperature: -30℃~55℃
● : L86×W86×H36.5mm
Product size
● Net weight: 133g

Key function

Brightness slide
On/Off
4 Zone
3 Scene

Panel controller match remoter method

● Match with 4 zone dimming remoter, such as RU4, R6, R16.
● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s, delete all matched remoters.
or other 0/1-10V dimming driver.
touch color slide, accurate and fast control of brightness.
flicking.
a variety of remoter, up to 10 remoter control.
86mm
36.5mm
86mm
On/Off: Short press turn on/off current zone light
long press 2s turn off all zone light .
Brightness slide : Touch to change current zone bright.
1,2,3,4 Zone: Short press select and turn on zone light,
long press 2s turn off zone light.
Continuous short press multiple zone key,
synchronous
can select multiple zones.
S1,S2 ,S3: Short press run the scene long press 2s save ,
4 zone run or save synchronously.

Wiring diagram

AC110-230V
,
AC110-230V
AC110-230V
.
AC110-230V
4 3 2 1 -
L N
0/1-10V Output 85-265VAC
INPUT
T18-1
0/1-10V LED Dimmer
Uin=85-265VAC 0.5-2.5mm ²
Iin=Max 50mA
6-7mm
Out=4×(0/1-10V)Signal
RoHS
V+
0-10V Dimmable
ACN
V-
Power Supply
ACL
DIM+
DIM-
V+
ACN 0-10V Dimmable V-
Power Supply
ACL DIM+
DIM-
V+
0-10V Dimmable
ACN V-
Power Supply
ACL DIM+
DIM-
V+
0-10V Dimmable
ACN
V-
Power Supply
ACL
DIM+
DIM-
Power input
L
AC85-265V
N
Single color LED strip
+
Single color LED strip
+
Single color LED strip
+
Single color LED strip
+
