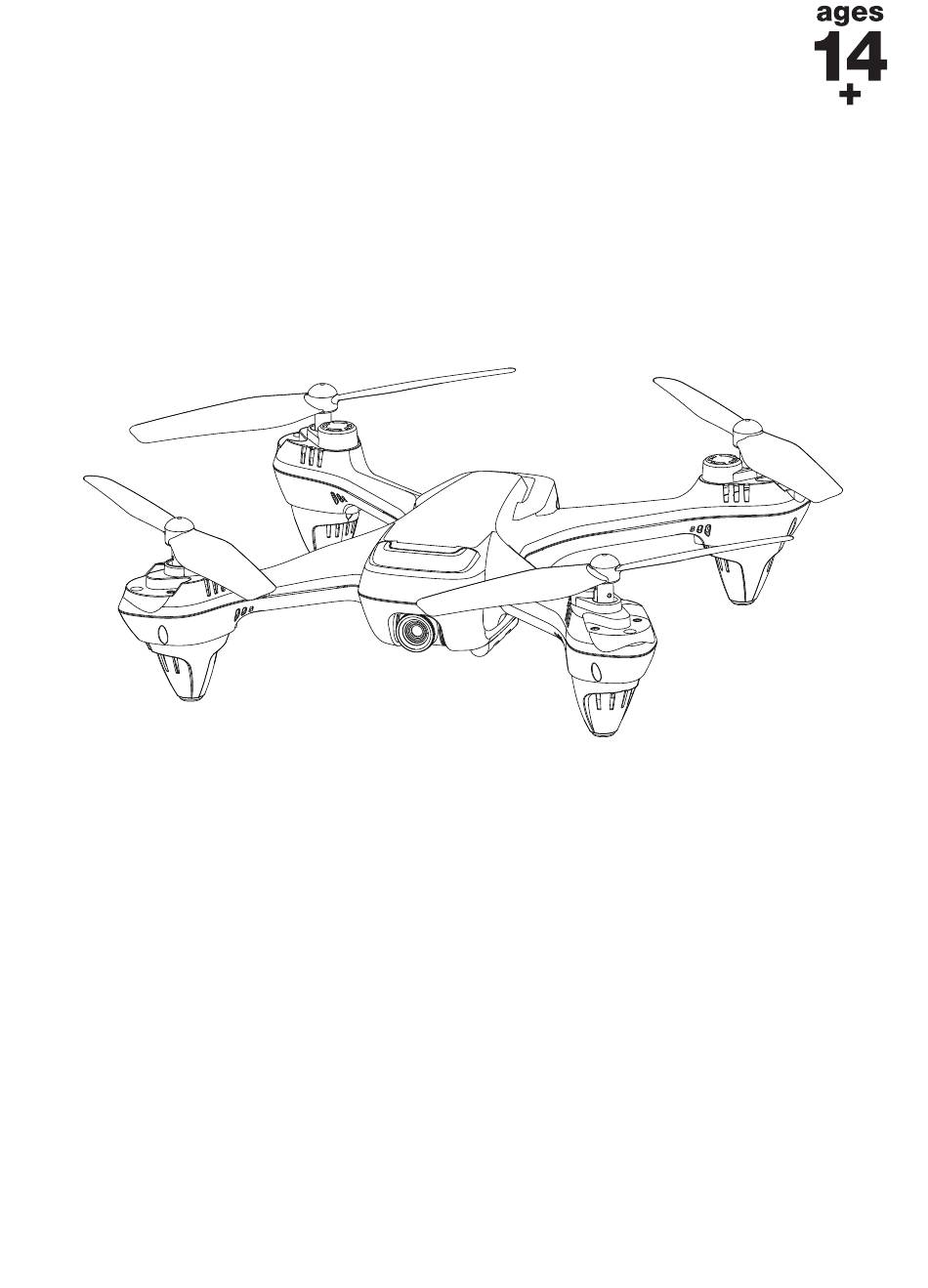

H4825
INSTRUCTIONS FOR USE
FORBIDDEN:
Special design for indoor & outdoor, please keep it away from obstacle.
This product is suitable for indoor (the wind grade should be not more than 4),
please choose a place without obstacle, and keep distance from crowd and
pets, don't play it under unsafety, for instance, heat source, wire or electronic
power source in order not to be damaged by collision landing, entanglement
and lead to a fore, electric shock and cause losses of lives and property.
Advertisement
Table of Contents
Related Manuals for Wowitoys H4825
Summary of Contents for Wowitoys H4825
- Page 1 H4825 INSTRUCTIONS FOR USE FORBIDDEN: Special design for indoor & outdoor, please keep it away from obstacle. This product is suitable for indoor (the wind grade should be not more than 4), please choose a place without obstacle, and keep distance from crowd and pets, don’t play it under unsafety, for instance, heat source, wire or electronic...
-
Page 2: Table Of Contents
CONTENT 1.0 Disclaimer & Warnings 2.0 Safety Guidelines 3.0 Packing list 4.0 Drone’s Details 5.0 Transmitter Functions 6.0 Joystick Mode 7-10 7.0 Installation 8.0 Charging 9.0 Operation Guide 9.1 Pairing 9.2 Calibrating the Gyro 9.3 Taking-Off / Landing Method 10.0 Function Details 10.1 Emergency Stop 10.2 Trimming 10.3 Headless Mode... -
Page 3: Disclaimer & Warnings
1.0 DISCLAIMER & WARNINGS 1. Please read this disclaimer, warnings and safety guidelines carefully before using our product. This product is not recommended for people under the age of 14. By using this product, you hereby agree to this disclaimer and signify that you have read it fully. -
Page 4: Safety Guidelines
2.0 SAFETY GUIDELINES 2.1 Check Before Use (1). This product is not a toy, but a high precision drone that integrates various electronic stability and control mechanisms. Please be sure to set up this drone carefully and correctly to ensure safe, accident-free operation. (2). - Page 5 2.3 Use of Battery (1) Please ensure the batteries are fitted in the correct orientation as shown in the instruction manual. (2) Avoid short circuits by fiting the batteries incorrectly, and do not crush the batteries as this may cause the risk of an explosion. (3) Do not mix new and old batteries as this can lead to a poor performance of the product.
-
Page 6: Maintenance
2.4 Maintenance 1. Clean the product after each use with a clean, soft cloth. 2. Avoid prolonged exposure to direct sunlight and avoid the buildup of heat on the drone or batteries. 3. This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 7: Drone's Details
4.0 DRONE’S DETAILS Propeller B Propeller A Propeller A Propeller B It is crucial that all the propellers are installed in the correct position (Pay attention to the letter A or B printed underneath each propeller). Power Switch Indicator Light... -
Page 8: Transmitter Functions
5.0 TRANSMITTER FUNCTIONS Indicator Light Auto Return Headless (Long Press) Speed Switch Flip Right Joystick Left Joystick Trim Emergency Stop (Long Press) One Key Take-off One Key Land Power Switch Headless Auto Return (Long Press) Speed Switch Flip... -
Page 9: Joystick Mode
6.0 JOYSTICK MODE Left Joystick Right Joystick Forward Ascend Down Backward Down Descend Left Left Right Right Fly to Fly to Turn Turn Left Right Left Right 7.0 INSTALLATION 7.1 Protective Rings Installation: Insert the protective ring diagonally into the side of the motor base and get it connected with the buckle, then tighten the screw clockwise. - Page 10 7.2 Drone Battery Installation: Push the battery correctly into the drone battery compartment. Make sure that you hear a click sound indicating the battery is firmly installed. Removal: Press the lock button on the battery and pull it back to remove the battery from the compartment.
- Page 11 7.3 Propellers HEAD Installation: As shown above, connect each propeller to its corresponding motor shaft, either position "A/B", then lock the propeller to the motor shaft. Removal: Use a screwdriver (provided) to remove propellers in counter-clockwise. Attention: Pay attention to the "A"...
-
Page 12: Transmitter Battery
7.6 Transmitter Battery Battery Cover 4 x AA batteries (not included) Always use alkaline batteries, never mix old and new batteries. 1. Unscrew the battery cover, press and slide the battery cover out, and insert 4 x AA batteries(not included), make sure to insert them following the correct polarity as shown. -
Page 13: Charging
8.0 CHARGING 8.1 Drone Battery USB Adapter (5V/0.5-2.0A) Computer USB Port Power Bank 1. Remove the battery from the drone and insert the charging wire into the battery charging slot. 2. Connect the USB charging cable with a power bank or a USB adapter (5V/2.0A) for charging. -
Page 14: Operation Guide
9.0 OPERATION GUIDE 9.1 Pairing (1). Short press the power button to turn on the transmitter and it will beep once and its indicator light flashes. Power Button (2). Long press the power button to turn on the drone, the indicator lights on the drone will flash. -
Page 15: Calibrating The Gyro
9.2 Calibrating the Gyro After pairing, pull left joystick to the lowest left corner and right joystick to the lowest right corner at the same time. This will reset the drone to its original factory settings and will be ready to fly again. 9.3 Taking-Off / Landing Method 1.2m One Key Take-Off... -
Page 16: Function Details
10.0 FUNCTION DETAILS 10.1 Emergency Stop Long press the emergency Long Press stop button on the transmitter, the motors will stop rotating immediately. Only stop motors mid-flight in an emergency situation, doing so to reduce the risk of damage or injury. WARNING 10.2 Trimming lf the drone is away in an unprompted direction, use the trim buttons to... -
Page 17: Headless Mode
10.3 Headless Mode Short Press To activate headless mode, short press "headless" button, the indicator lights on drone will flash, and the drone will fly in the desired selected direction, regardless of the direction the drone is facing. Press the headless button again to exist headless mode. 10.4 Speed Switch Press the speed switch button to switch high or... -
Page 18: Auto Return
10.5 Auto Return: Long Press Long press the auto return button, the drone will automatically return in the direction of the tail before takeoff. (Most of all, operator must keep in mind the drone orientation before the drone takes off, otherwise the return direction of the drone will deviate.) 10.6 360 Flips Perform 360 flips by pressing the "flip"...
