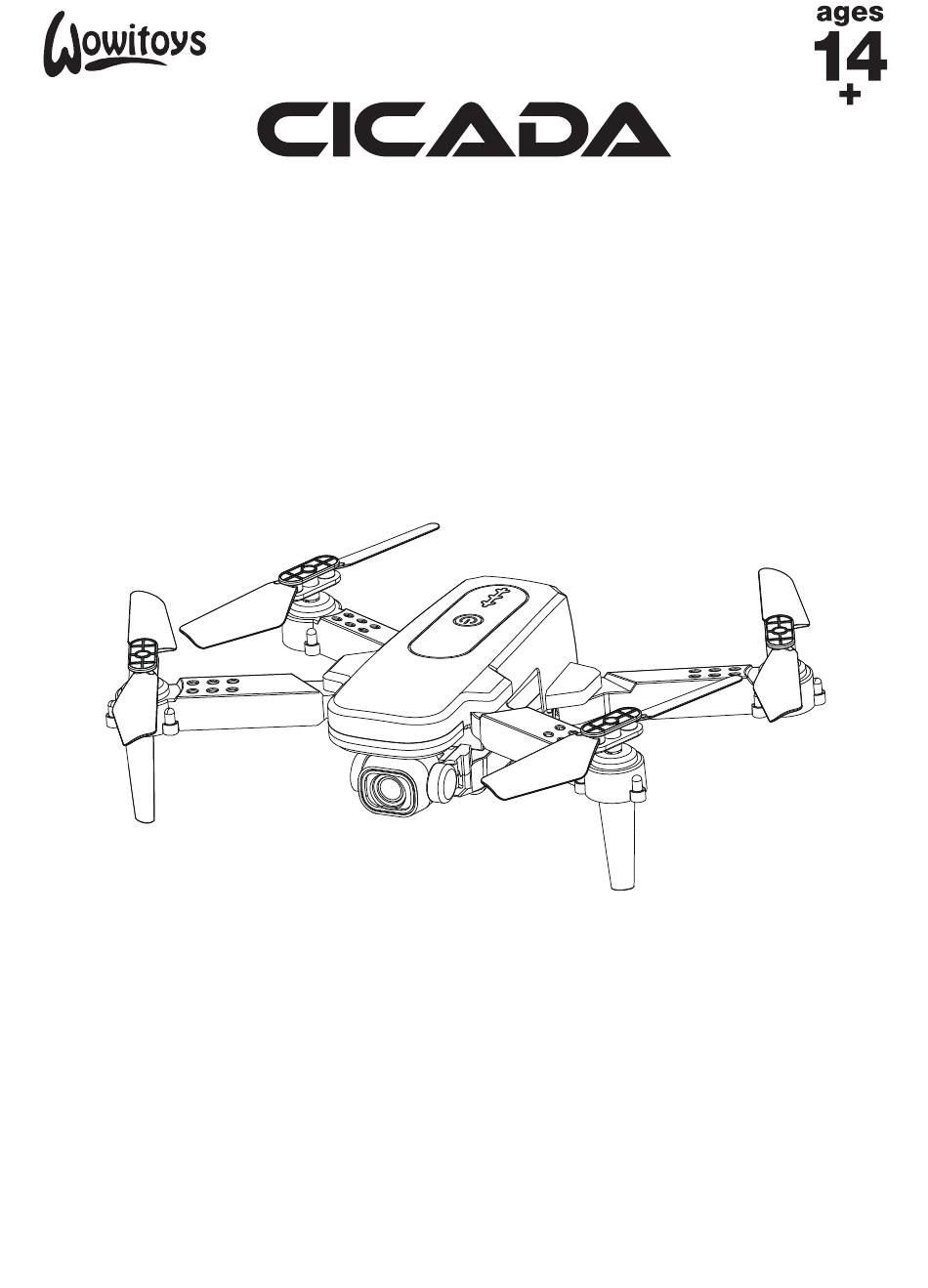

- Page 1 INSTRUCTIONS FOR USE H4824...
-
Page 2: Table Of Contents
CONTENT 1.0 Disclaimer & Warnings 2.0 Safety Guidelines 3.0 Packing list 4.0 Drone’s Details 5.0 Transmitter Functions 6.0 Joystick Mode 7-10 7.0 Installation 8.0 Charging 9.0 Operation Guide 9.1 Pairing 9.2 Download APP 9.3 Connect to the APP 9.4 Calibrating the Gyro 9.5 Taking-Off / Landing Method 10.0 Function Details 10.1 LED ON/OFF... -
Page 3: Disclaimer & Warnings
1.0 DISCLAIMER & WARNINGS 1. Please read this disclaimer, warnings and safety guidelines carefully before using our product. This product is not recommended for people under the age of 14. By using this product, you hereby agree to this disclaimer and signify that you have read it fully. -
Page 4: Safety Guidelines
2.0 SAFETY GUIDELINES 2.1 Check Before Use (1). This product is not a toy, but a high precision drone that integrates various electronic stability and control mechanisms. Please be sure to set up this drone carefully and correctly to ensure safe, accident-free operation. (2). - Page 5 2.3 Use of Battery (1) Please ensure the batteries are fitted in the correct orientation as shown in the instruction manual. (2) Avoid short circuits by fitting the batteries incorrectly, and do not crush the batteries as this may cause the risk of an explosion. (3) Do not mix new and old batteries as this can lead to a poor performance of the product.
-
Page 6: Packing List
2.4 Maintenance 1. Clean the product after each use with a clean, soft cloth. 2. Avoid prolonged exposure to direct sunlight and avoid the buildup of heat on the drone or batteries. 3. This device is not waterproof and must not be submerged or subjected to water under any circumstance. -
Page 7: Drone's Details
4.0 DRONE’S DETAILS Propeller B Propeller A Propeller B Propeller A Camera It is crucial that all the propellers are installed in the correct position (Pay attention to the letter A or B printed underneath each propeller). Power Switch Indicator Light Camera... -
Page 8: Transmitter Functions
Foldable 5.0 TRANSMITTER FUNCTIONS Left Joystick Right Joystick Flip Trim Speed Switch One Key Return Trim Headless Button One Key Take-off One Key Land (Short Press) Emergency Stop Power Switch (Long Press) -
Page 9: Joystick Mode
6.0 JOYSTICK MODE Left Joystick Right Joystick Forward Ascend Down Backward Down Descend Left Left Right Right Fly to Fly to Turn Left Right Turn Right Left 7.0 INSTALLATION 7.1 Protective Rings Installation: Align the protective guard with the bottom of the motor and press it into place. - Page 10 7.2 Drone Battery Installation: Push the battery correctly into the drone battery compartment. Make sure that you hear a click sound indicating the battery is firmly installed. Removal: Press the lock button on the battery and pull it back to remove the battery from the compartment.
- Page 11 7.3 Propellers HEAD Installation: As shown above, connect each propeller to its corresponding motor shaft, either position "A/B", then lock the propeller to the motor shaft. Removal: Use a screwdriver (provided) to remove propellers in counter-clockwise. Attention: Pay attention to the "A"...
- Page 12 7.4 Phone Holder Pull the back cover out and install and remove the phone holder as shown above. 7.5 Transmitter Battery Battery Cover 4 x AAA batteries (not included) Always use alkaline batteries, never mix old and new batteries. 1. Unscrew the battery cover, press and slide the battery cover out, and insert 4 x AAA batteries(not included), make sure to insert them following the correct polarity as shown.
-
Page 13: Charging
8.0 CHARGING 8.1 Drone Battery USB Adapter (5V/0.5-2.0A) Computer USB Port Power Bank 1. Remove the battery from the drone and insert the charging wire into the battery charging slot. 2. Connect the USB charging cable with a power bank or a USB adapter (5V/2.0A) for charging. -
Page 14: Operation Guide
9.0 OPERATION GUIDE 9.1 Pairing (1).Toggle the power switch of the remote control to the right to turn on the remote control, at the same time the remote control will make Power Button a beep, and the power indicator of the remote control will flash. -
Page 15: Download App
Apple store and search for "WOWITOYS", to download the software; For Android smartphone users, scan the QR Code on the packaging or below, or go into Android Eloquent Market / Google play and search for "WOWITOYS", to download the software. -
Page 16: Calibrating The Gyro
9.4 Calibrating the Gyro If you are experiencing issues controlling the drone & it is not responding correctly to the controller, it can be reset by following steps : 1. Turn on the drone & controller, place the drone on a flat ground (it is very important), then push the left throttle of the controller up &... -
Page 17: Function Details
10.0 FUNCTION DETAILS 10.1 LED ON/OFF Press the LED button to turn off/on the lights Short Press 10.2 Emergency Stop Long press the emergency stop button on the transmitter, Long Press the motors will stop rotating immediately. Only stop motors mid-flight in an emergency situation, doing so to reduce the risk of damage or injury. -
Page 18: Trimming
10.3 Trimming lf the drone is away in an unprompted direction, use the trim buttons to correct the flight: 1- Forward Trim 2- Backward Trim 3- Left Trim 4- Right Trim 10.4 Headless Mode Short Press To activate headless mode, short press "headless" button, the indicator lights on drone will flash, and the drone will fly in the desired selected direction, regardless of the direction the drone is facing. -
Page 19: Speed Switch
10.5 Speed Switch Press the speed switch button to switch high or low speed mode freely. Short Press 10.6 Auto Return: Short Press Short press the auto return button, the drone will automatically return in the direction of the tail before takeoff. (Most of all, operator must keep in mind the drone orientation before the drone takes off, otherwise the return direction of the drone will deviate.) 10.7 360 Flips Perform 360 flips by pressing... -
Page 20: App Operation Instruction
You could turn on the drone to enjoy the flying again as usual. Customer Service: www.alza.co.uk/kontakt www.wowitoys.com +44 (0) 203 514 4411 service@wowitoys.com Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Prague 7, www.alza.cz... - Page 21 12.0 DECLARATION OF CONFORMITY This product complies with the following European Union Directives and is therefore eligible for sale in EU countries: Directive 2014/53/EU, Directive 2011/65/EU as amended by 2015/863/EU. 13.0 WEEE This product must not be disposed of as normal household waste in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
