Contour next ONE Quick Reference Manual

Hide thumbs Also See for next ONE:

Advertisement

Table of Contents

Blood Glucose
Monitoring System
Works with the C
D
app
™
ontour
iabetes
available for download on
the App Store
or on Google Play
.
™
SM
Uses only C
n
®
ontour
ext
blood glucose test strips.
QUICK REFERENCE GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the next ONE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contour next ONE

Summary of Contents for Contour next ONE

  • Page 1 Blood Glucose Monitoring System Works with the C ™ ontour iabetes available for download on the App Store or on Google Play ™ Uses only C ® ontour blood glucose test strips. QUICK REFERENCE GUIDE...

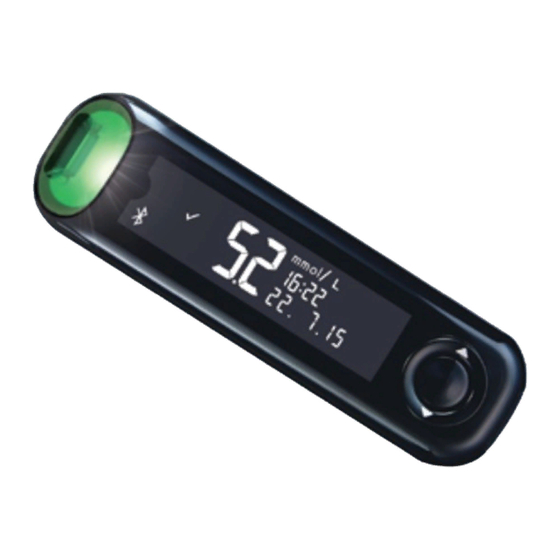

  • Page 2 Your C ONE meter ® ontour OK Button Up Button smartLIGHT Down Test Strip Port Button Grey Square End: Insert this end into the test strip port Sample Tip: Blood sample pulled in here CAUTION Your C ONE meter works ®...
  • Page 3 The C ™ ontour iabetes You can automatically transfer results from your C ONE meter wirelessly ontour to your smartphone or tablet. 1. On your smartphone or tablet, go to the App Store or the Google Play store. ™ 2. Search for the C app.
  • Page 4 Up/Down, Scroll/OK Buttons • The buttons on the outer ring allow you Outer Ring to scroll through the options. • When a symbol is blinking, you can select it or change it. • Press the OK button to accept a OK Button selection.
  • Page 5 View Pre-Set Target The meter compares your blood sugar results with a Target Range (for example, 3.9 mmol/L–7.2 mmol/L) to let you know if your test result is: • within your Target Range. • above your Target Range. your Target Range. •...

  • Page 6: Set The Time

    Set the Time The hour is blinking. 1. To change the hour, press button on the outer ring. 2. To set the hour and move to minutes, press the OK button. 3. To change the minutes, press the button on the outer ring, then press the OK button.

  • Page 7: Setup Is Complete

    Setup is Complete The meter briefly displays your saved settings, then beeps and turns OFF. Setup is complete. Fingertip Testing Refer to your lancing device insert for detailed instructions on preparing the lancing device. WARNING: Potential Biohazard • Always wash your hands well with soap and water and dry them before and after testing or after handling the meter, lancing device, or test strips.
  • Page 8 CAUTION • The lancing device provided with your kit is intended for use by a single patient. • Set up your meter before doing your first blood sugar test. Refer to Initial Setup from the Meter. For more information, refer to the ONE User Guide.
  • Page 9 The meter turns on and displays the Apply Blood screen. The meter is now ready to test a blood drop. 3. Use your lancing device to get a drop of blood from your fingertip. 4. Stroke your hand and finger toward the puncture site to form a drop of blood.
  • Page 10 For in vitro diagnostic use. For information on patents and related licenses, see www.patents.ascensia.com. Ascensia, the Ascensia Diabetes Care logo, Contour, Glucofacts, the No Coding logo, Microlet, and Second-Chance are trademarks and/or registered trademarks of Ascensia Diabetes Care Holdings AG.
  • Page 11 PROCESS M PROCESS Y PROCESS K FILE NAME: 85096850_CntrNxtONE_QRG_EN_FR.indd NEW COMP BAN: 85096850 REV: 09/16 DESCRIPTION: Contour Next ONE Meter QRG DATE: 09/21/16 CLIENT: Ascensia Diabetes Care V0 01/12/16 Initial build V1 02/03/16 DMC Annotations V2 02/09/16 DMC Annotations PROGRAM VERS: InDesign CC(2014)
  • Page 12 Fingertip Testing (Continued) CAUTION For instructions on removing the lancet from your lancing device, see the lancing device insert. The meter displays your result with the units, time, date, and target indicator: In Target Below Target , or Above Target The test strip port displays a colour representing your result value compared to the Target Range.
  • Page 13 LO or HI Results • If the meter beeps twice and displays the LO screen, your blood sugar reading is under 0.6 mmol/L. Follow medical advice immediately. Contact your health care professional. • If the meter beeps once and displays the HI screen, your blood sugar reading is over 33.3 mmol/L.
  • Page 14 Logbook 1. To turn on your meter, press and hold the OK button for 2 seconds. The Home screen has 2 options: Logbook and Settings. The Logbook is blinking. 2. To view your Logbook entries, press the OK button. 3. Press the buttons on the outer ring to scroll through the Logbook.
  • Page 15 3. Continue to press the OK button as you go through each setting until you find the setting you want to change. You will see options such as: • Time Format • Meal Markers • Time • Target Ranges • Date Format •...

  • Page 16: Turn Meal Markers On

    Turn Meal Markers On If your meter is not ON: 1. Press and hold the OK Button OK button about 2 seconds until the meter turns on. 2. Wait until the Logbook symbol is blinking on the Home screen. 3. Press the button on the Outer Ring outer ring.
  • Page 17 5. Continue to press the OK button to move through each setting until you see the Meal Marker setting screen. Do not press the OK button yet. 6. Press the button so that On is blinking. 7. Press the OK button. 8.
  • Page 18 Select a Meal Marker During a Blood Sugar Test Meal Marker Symbols Fasting After Meal Before Meal No Mark NOTE: You must do a blood sugar test before you can select a Meal Marker. You cannot select a Meal Marker in Settings. 1.
  • Page 19 To select a different Meal Marker, press button on Outer Ring the outer ring to scroll between markers. 4. When the Meal Marker you want is blinking, press the OK button. NOTE: • If you do not select a Meal Marker within 30 seconds, the screen dims.
  • Page 20 Your Meter Display Symbol What it Means Your Logbook Settings Target Light (smartLIGHT) Setting (Green=In Target; Red=Below Target; Yellow=Above Target) A Target range or Target setting is displaying Fasting Meal marker; used when testing after fasting (no food or drink for 8 hours, except water or non-caloric beverages) Before Meal marker;...
  • Page 21 Symbol What it Means No Mark Selected; used when testing at times other than after fasting or before or after a meal Blood sugar test result is in Target range Blood sugar test result is above Target range Blood sugar test result is below Target range Bluetooth symbol;...
