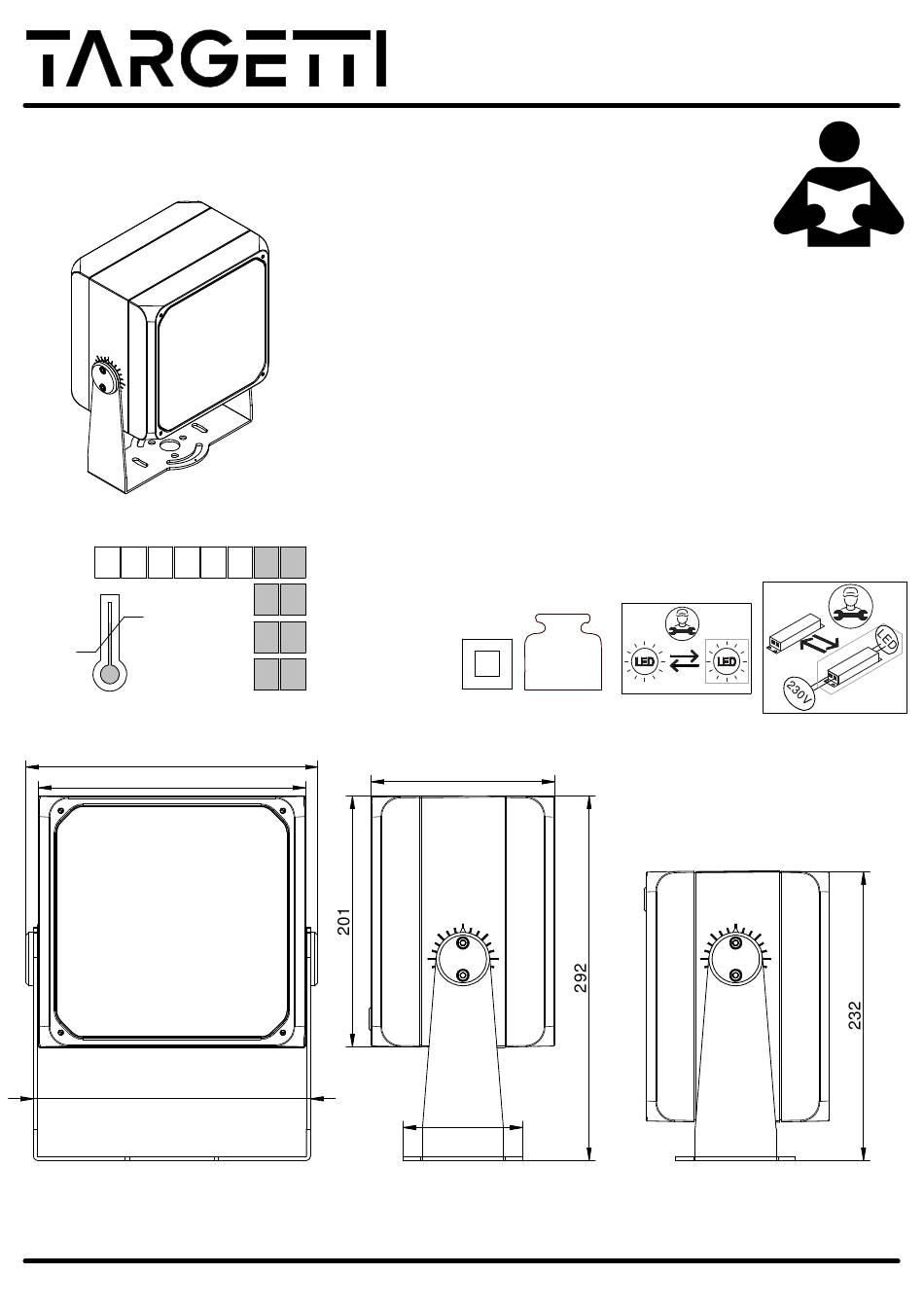

DART Maxi
1 E
X X
+35°C
-25°C
220/240V
234
214
222
RG1 secondo norma IEC/TR 62778:2014 / RG1 in accordance with IEC/TR 62778:2014
RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014
RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014
Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy
X X
E
L
Electronic
D
1/10V Dimmable
D A
DALI Dimmable
50/60Hz
RG1 de acordo com norma IEC/TR 62778:2014
26W Sorgente Led / Led source
28W Apparecchio / Fixture
COD. 1E3064 / 1E3070
34W Sorgente Led / Led source
37W Apparecchio / Fixture
COD. 1E3076 / 1E3082
51W Sorgente Led / Led source
54W Apparecchio / Fixture
COD. 1E3065 / 1E3066 / 1E3067 / 1E3068
COD. 1E3069 / 1E3070 / 1E3071 / 1E3072
COD. 1E3073 / 1E3074 / 1E3075
80W Sorgente Led / Led source
88W Apparecchio / Fixture
COD. 1E3077 / 1E3078 / 1E3079 / 1E3080
COD. 1E3081 / 1E3082 / 1E3083 / 1E3084
COD. 1E3085 / 1E3086 / 1E3087
6.7Kg
IP66 IK10
147
96
cod. 2CV0CS00_105
In caso di dubbi sulla simbologia,
riferirsi al catalogo o al sito web.
If in doubt about the symbols refer
to catalog or website
www.targetti.com
- 1 -
Advertisement
Related Manuals for Targetti DART Maxi
Summary of Contents for Targetti DART Maxi
- Page 1 RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014 RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014 - 1 - RG1 de acordo com norma IEC/TR 62778:2014 www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 2 L’appareil doit être installer par électriciens qualifies. Targetti ne peut pas être responsable pour toutes les installations qui ne respectent pas les normes de sécurité en vigueur. Diese Leuchte darf nur von qualifiziertem Fachpersonal des Elektrohandwerks installiert werden.
- Page 3 Försiktighet i produkten enligt webbplatsen - www.targetti.com, det kan finnas en mer aktuell version av manualen på produktområdet på web-sidan Para más información acerca del producto puede visitar nuestra página web - www.targetti.com - podría estar disponible una versión más actualizada del presente manual AКТУАЛЬНАЯ...
- Page 4 Pos. A Pos. B Pos. B Pos. A - 4 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 5 NON INCLUSE NOT INCLUDED min. - 5 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 6 Pos. A Pos. B Blocco Lock 0°-180° - 6 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 7 BLU / BLUE (Dimm - ) Ø7mm - 12mm MAX OR EQUIVALENT CAVO / CABLE 2x1,5mm² MARRONE / BROWN ( L ) BLU / BLUE ( N ) - 7 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 8 Per fissare gli accessori rimuovere grano Take the screw off to fix the accessories SCHERMO ASSIMETRICO - ASYMMETRIC SCREEN COD. 1E3095 - 8 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 9 GRIGLIA ANTIABBAGLIAMENTO - ANTI-GLARE GRID COD. 1E3096 - 9 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 10 ANELLO PORTA FILTRI - HOLDER RING COD. 1E3088 COD. 1E3089 COD. 1E3090 COD. 1E3091 COD. 1E3093 COD. 1E3092 COD. 1E3094 COD. 1E3094 +/- 360° Regolazione direzione luce Light direction adjustament - 10 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 11 MONTAGGIO DOPPIO ANELLO PORTA FILTRI HOLDER RING DOUBLE ASSEMBLY COD. 1E3088 COD. 1E3089 COD. 1E3090 COD. 1E3091 COD. 1E3092 COD. 1E3093 COD. 1E3094 - 11 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 12 MONTAGGIO DOPPIO ACCESSORIO / DOUBLE ACCESSORY ASSEMBLY COD. 1E3095 COD. 1E3096 COD. 1E3088 COD. 1E3089 COD. 1E3090 COD. 1E3091 COD. 1E3093 COD. 1E3092 COD. 1E3094 - 12 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 13 PIASTRA PER LA ROTAZIONE - PLATE FOR FITTING ROTATION COD. 1E3026 115,5 NON INCLUSE NOT INCLUDED Blocco REGOLAZIONE ADJUSTMENT Lock +/-45° SISTEMA DI MONTAGGIO MULTIPLO SU PALO - POLE MULTIPLE MOUNTING SYSTEM COD. 1E3097 - 13 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 14 COD. 1E2825 Blocco Lock +/-30° COD. 1E2494 COD. 1E2493 (1 IN - 3 OUT) (1 IN - 1 OUT) - 14 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 15 PICCHETTO PER TERRENO - EARTHSPIKE COD. 1E3188 Blocco Lock REGOLAZIONE - ADJUSTMENT +/-45° SISTEMA LASER PER PUNTAMENTO - LASER POINTING SYSTEM COD. 1E3098 Laser incluso Included laser - 15 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 16 - UTILIZZARE CAVO H07RN-F 2x1,5mm² MAX ØMin 6mm ØMax12mm O EQUIVALENTE - USE CABLE H07RN-F 2x1,5mm² MAX ØMin 6mm ØMax12mm OR EQUIVALENT Blocco REGOLAZIONE - ADJUSTMENT Lock +/-45° - 16 - www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
