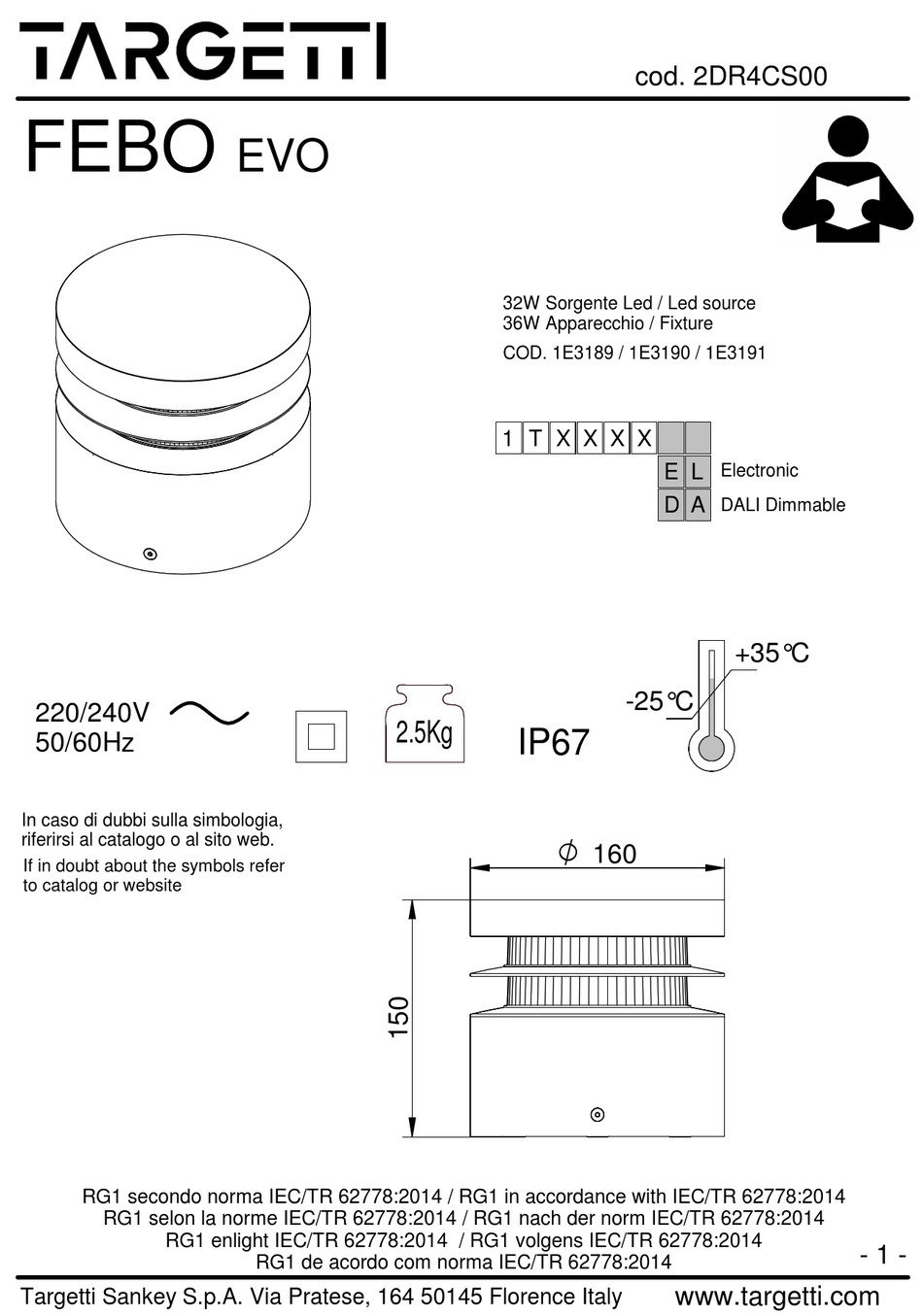

FEBO
220/240V
50/60Hz
In caso di dubbi sulla simbologia,
riferirsi al catalogo o al sito web.
If in doubt about the symbols refer
to catalog or website
RG1 secondo norma IEC/TR 62778:2014 / RG1 in accordance with IEC/TR 62778:2014
RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014
RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014
Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy
EVO
2.5Kg
RG1 de acordo com norma IEC/TR 62778:2014
cod. 2DR4CS00
32W Sorgente Led / Led source
36W Apparecchio / Fixture
COD. 1E3189 / 1E3190 / 1E3191
1 T
X X
X X
E
D
-25°C
IP67
O
160
www.targetti.com
L
Electronic
A
DALI Dimmable
+35°C
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Targetti FEBO EVO 1E3189
Summary of Contents for Targetti FEBO EVO 1E3189
- Page 1 RG1 selon la norme IEC/TR 62778:2014 / RG1 nach der norm IEC/TR 62778:2014 RG1 enlight IEC/TR 62778:2014 / RG1 volgens IEC/TR 62778:2014 - 1 - RG1 de acordo com norma IEC/TR 62778:2014 www.targetti.com Targetti Sankey S.p.A. Via Pratese, 164 50145 Florence Italy...
- Page 2 Försiktighet i produkten enligt webbplatsen - www.targetti.com, det kan finnas en mer aktuell version av manualen på produktområdet på web-sidan Para más información acerca del producto puede visitar nuestra página web - www.targetti.com - podría estar disponible una versión más actualizada del presente manual AКТУАЛЬНАЯ...
- Page 3 2,5mm Sistemi di fissaggio non inclusi Fixing system not included - 3 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 4 SERRARE PER GARANTIRE LA TENUTA TIGHTEN TO ENSURE TIGHTNESS Neutro/Neutral Linea/Line COD. 1E3305 20mm USARE CAVO 2x2,5mm² MAX H07RN8-F Ø7mm÷12mm MAX USE CABLE 2x2,5mm² MAX H07RN8-F Ø7mm÷12mm MAX - 4 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 5 SERRARE PER GARANTIRE LA TENUTA TIGHTEN TO ENSURE TIGHTNESS Dali Dali COD. 1E3305 20mm USARE CAVO 2x1,5mm² MAX H07RN8-F Ø7mm÷12mm MAX USE CABLE 2x2,5mm² MAX H07RN8-F Ø7mm÷12mm MAX - 5 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 6 - 6 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 7 2,5mm - 7 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
- Page 8 - 8 - www.targetti.com TARGETTI SANKEY S.p.A. Via Pratese n°164 Florence Italy...
