www.ti.com
EVM User's Guide: LMR36503MSCEEVM
LMR360503MSCEEVM Evaluation Module
Description
The LMR36503E-Q1 is a 65V DC/DC, 0.3A buck
regulator that features synchronous rectification to
achieve high conversion efficiency in a small footprint.
The EVM operates over a wide input voltage range
of 5.5V to 65V to provide a regulated 5V output
up to 0.3A load at 2.2MHz switching frequency.
The LMR36503MSCEEVM can support output voltage
regulation accuracy better than 1.5% at full load and
is adjustable using an external resistor divider.
Get Started
1. Order the EVM at ti.com.
2. Read this user's guide.
3. Prepare the bench setup per instructions.
4. Power up the EVM by following the recommended
steps.
5. Run tests and measurements. Take caution of the
high temperature that the EVM can be operated
under during the test.
SNVU879 – JUNE 2024
Submit Document Feedback
Features
Input voltage range: 5.5V to 65V
Output voltage: 12V
Load current: 0 to 0.3A
Switching frequency: 2.2MHz
Adjustable output voltage
External synchronization capability
Internal spread spectrum capability
Selectable pulse-frequency modulation or forced
pulse-width modulation at light-load
Supports operation up to 150°C ambient
Supports other variants of the IC by replacing
some components
Applications
Advanced driver assistance systems (ADAS)
Body electronics and lighting
Infotainment and cluster

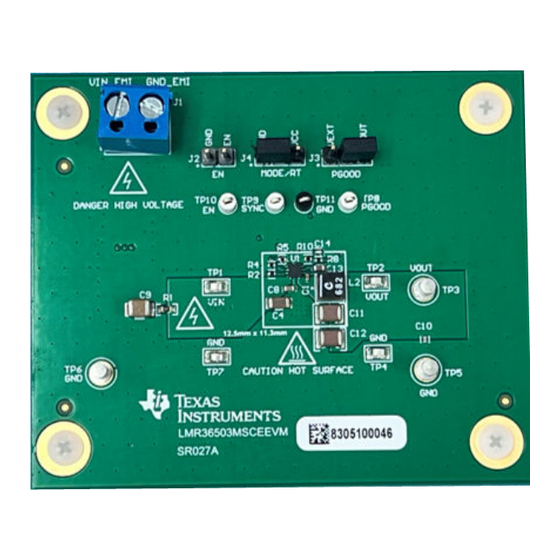

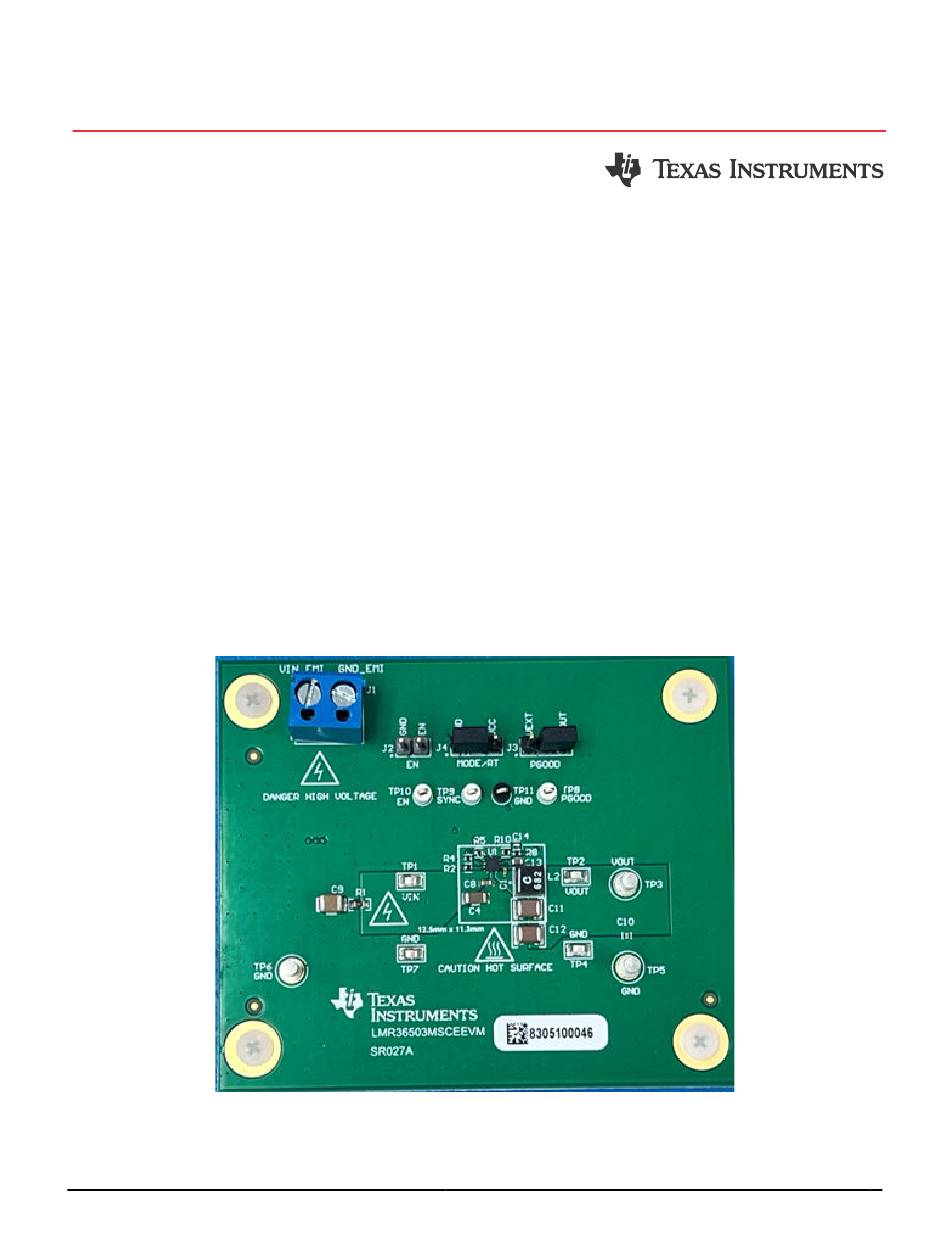

LMR36503E-Q1 EVM
Copyright © 2024 Texas Instruments Incorporated
LMR360503MSCEEVM Evaluation Module
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LMR360503MSCEEVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LMR360503MSCEEVM

  • Page 1 5. Run tests and measurements. Take caution of the • Infotainment and cluster high temperature that the EVM can be operated under during the test. LMR36503E-Q1 EVM SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2 1 Evaluation Module Overview 1.1 Introduction The Texas Instruments LMR36503MSCEEVM evaluation module help designers evaluate the operation and performance of the LMR36503E-Q1 wide-input buck converters. The LMR36503E-Q1 is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 0.3A of load current from an input voltage of 3V up to 65V.
  • Page 3 TI does not recommend using a long-leaded ground connection because the connection can induce additional noise due to a large ground loop. To measure other waveforms, adjust the oscilloscope as necessary. SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 This test point is connected to the EN pin. By default, there is a pullup TP10 resistor R2 to VIN to enable the IC. LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 2.2MHz and connecting this jumper from pin 2 and 3 sets the switching frequency to 1MHz. ENABLE MODE PGOOD SELECTION SELECTION JUMPER JUMPER JUMPER Figure 2-2. Jumper Locations SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 = 24V 5.065 = 48V 5.06 5.055 5.05 5.045 5.04 5.035 5.03 5.025 5.02 5.015 5.01 5.005 Load Current (mA) Figure 3-2. Output Voltage Regulation LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Figure 3-3. Dropout 3.1.2 Load Transients Figure 3-4. Load Transient, I = 20mA to 300mA Figure 3-5. Load Transient, I = 150mA to 300mA SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Implementation Results www.ti.com 3.1.3 Steady State Figure 3-6. Steady State, I = 0A Figure 3-7. Steady State, I = 300mA LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 Implementation Results 3.1.4 Line Transient Figure 3-8. Waterfall Test, Iout = 300mA Figure 3-9. Waterfall Test, Iout = 0A SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 Implementation Results www.ti.com 3.2 Thermal Images Figure 3-10. 12-Vin, 300mA load, 25C ambient Figure 3-11. 20-Vin, 300mA load, 150C ambient LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 22µF 22µF PGOOD PGOOD 1µF LMR36503MSCQRPERQ0 100k 49.9 VOUT PGOOD PGOOD SYNC 10pF 100k TP10 100k TP11 24.9k PGOOD MODE/RT Figure 4-1. LMR36503MSCEEVM Schematic SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 Hardware Design Files www.ti.com 4.2 Board Layout Figure 4-2. EVM Top Overlay Figure 4-3. EVM Top Copper Layer LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Hardware Design Files Figure 4-4. EVM Mid Layer One Figure 4-5. EVM Mid Layer Two SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Hardware Design Files www.ti.com Figure 4-6. EVM Bottom Copper Layer LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 0 Ohms Jumper Chip Resistor 0603 (1608 Metric) Metal Element WSL060300000ZEA9 Vishay 24.9 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 24.9k RT0402BRE0724K9L Yageo Metric) Thin Film SNVU879 – JUNE 2024 LMR360503MSCEEVM Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 LMR36503/06-Q1 Wide Input 60V Synchronous, DC-DC Buck LMR36503MSCQPERQ0 Texas Instruments Converter, RPE0009A (VQFN-9) FID1, FID2, FID3, FID4, Fiducial mark. There is nothing to buy or mount. FID5, FID6 LMR360503MSCEEVM Evaluation Module SNVU879 – JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
