User's Guide
LM63635DNEVM Evaluation Module
The Texas Instruments LM63635DNEVM evaluation module (EVM) helps designers evaluate the operation
and performance of the LM63635Cx family of buck regulators. The LM63635Cx is a family of easy-to-use
synchronous step-down DC/DC converters capable of driving up to 3.25 A of load current from an input
voltage of 3.5 V to 36 V. See the LM63635 and LM63635C data sheets for additional features, detailed
description, and available options.
the LM63635DNEVM. Note that the EVM must be modified for use with some of these device numbers. See
Section 2
for more details.
DEVICE
LM63615CQDRRRQ1
LM63625CQDRRRQ1
LM63635CQDRRRQ1
LM63635CC3QDRRRQ1
LM63635CC5QDRRRQ1
LM63635CA3QDRRRQ1
LM63635CA5QDRRRQ1
SNVU767A – MARCH 2022 – REVISED JANUARY 2024
Submit Document Feedback
ABSTRACT
Table 1-1
provides a list of regulator device numbers that can be used with

Table 1-1. Device Options and Configurations

OUTPUT
VOLTAGE
CURRENT
ADJ
ADJ
ADJ
3.3-V (fixed)
5-V (fixed)
3.3-V (fixed)
5-V (fixed)

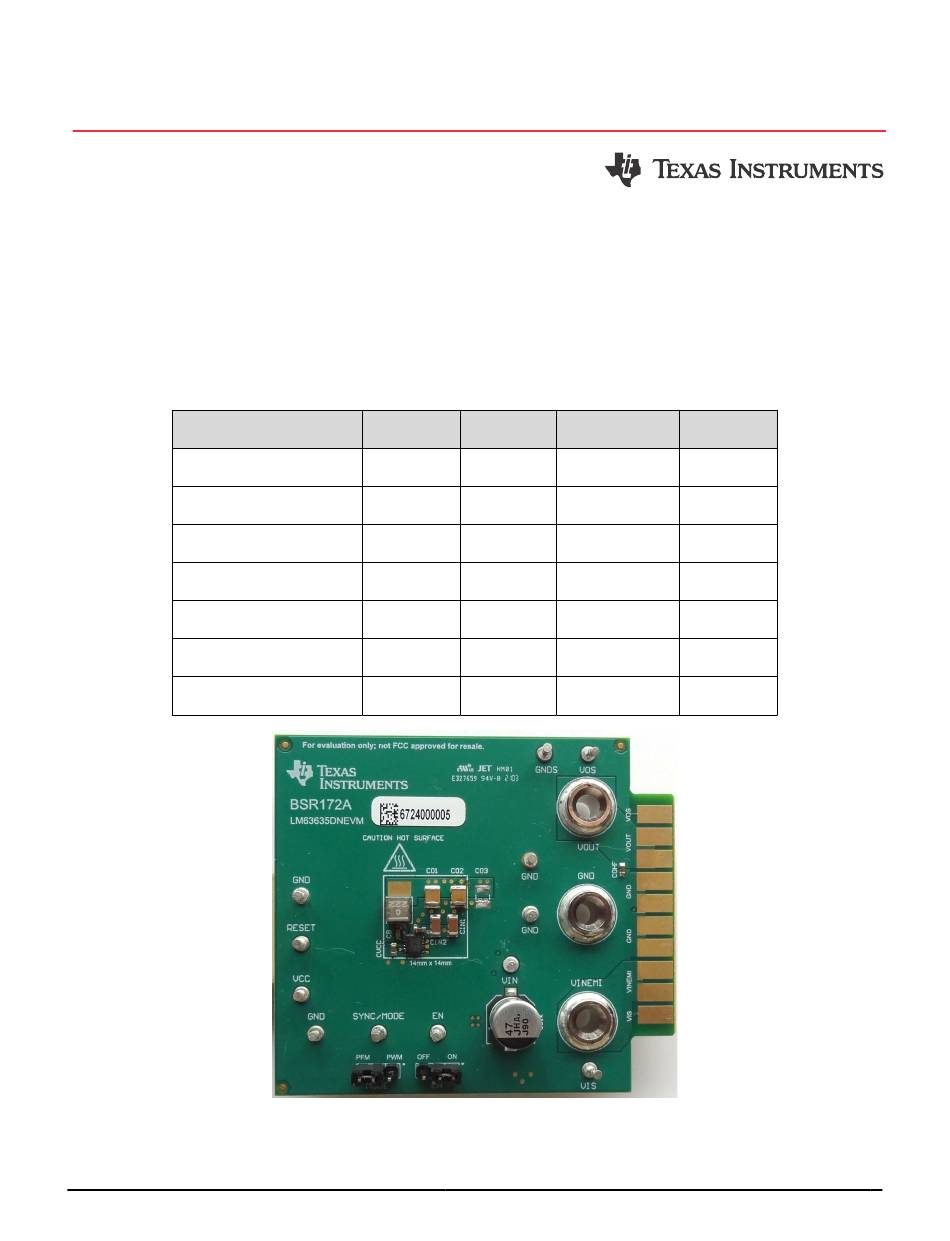

Figure 1-1. LM63635DNEVM Board

Copyright © 2024 Texas Instruments Incorporated
OUTPUT
SWITCHING
FREQUENCY
1.5 A
2.1 MHz
2.5 A
2.1 MHz
3.25 A
2.1 MHz
3.25 A
2.1 MHz
3.25 A
2.1 MHz
3.25 A
400 kHz
3.25 A
400 kHz
LM63635DNEVM Evaluation Module
EVM
Set to 5-V
output
Set to 5-V
output
Set to 5-V
output
Requires
modification
Requires
modification
Requires
modification
Requires
modification
1
