LM74501-Q1EVM User's Guide
This user's guide describes the evaluation module (EVM) for TI's reverse polarity protection controller,
LM74501-Q1. This document provides configuration information and test setup details for evaluating
LM74501-Q1 devices. An EVM schematic, board layout images, and bill of materials (BOM) are included.
1
Introduction.............................................................................................................................................................................2
2
Setup........................................................................................................................................................................................2
Description..................................................................................................................................................2
2.2 Board Setup.......................................................................................................................................................................
2.3 Schematic..........................................................................................................................................................................
3
Operation.................................................................................................................................................................................5
3.1 LM74501-Q1EVM Performance Capture...........................................................................................................................
Drawings....................................................................................................................................................................7
Materials...................................................................................................................................................................9
History....................................................................................................................................................................11
LM74501-Q1EVM......................................................................................................................................................3
Figure 3-1. LM74501-Q1EVM Startup.........................................................................................................................................
Figure 4-2. LM74501-Q1EVM Bottom Side Placement...............................................................................................................
Figure 4-3. LM74501-Q1EVM Top Layer Routing.......................................................................................................................
Materials............................................................................................................................................................9
Trademarks
All trademarks are the property of their respective owners.
SNOU179A - MAY 2021 - REVISED SEPTEMBER 2021
Submit Document Feedback
ABSTRACT

Table of Contents

Guidelines....................................................................................................7
List of Figures
Circuit............................................................................................................2
Schematic....................................................................................................................................4
V)...............................................................................................................................6
Placement.....................................................................................................................7
Routing..................................................................................................................8
List of Tables
Copyright © 2021 Texas Instruments Incorporated
Table of Contents
LM74501-Q1EVM User's Guide
3
4
5
5
7
8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM74501-Q1EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LM74501-Q1EVM

  • Page 1: Table Of Contents

    Figure 3-1. LM74501-Q1EVM Startup............................Figure 3-2. Startup Reverse Polarity (–12 V)..........................6 Figure 4-1. LM74501-Q1EVM Top Side Placement........................7 Figure 4-2. LM74501-Q1EVM Bottom Side Placement....................... Figure 4-3. LM74501-Q1EVM Top Layer Routing........................Figure 4-4. LM74501-Q1EVM Bottom Layer Routing........................8 List of Tables Table 4-1. Bill of Materials................................9...
  • Page 2: Introduction

    2 Setup This section describes the jumpers and connectors on the EVM, and how to properly connect, setup, and use the LM74501-Q1EVM. Ensure the power supply is turned off while making connections on the board. 2.1 I/O Connector Description J1: Power input connector to the positive rail of the input power supply...
  • Page 3: Board Setup

    Make sure that the external power-supply source for the input voltage is capable of providing enough current to the output load so that the output voltage can be obtained. When all connections to the LM74501-Q1EVM are verified, apply power to VIN. Figure 2-2 captures EVM board setup.
  • Page 4: Schematic

    PEC03SAAN VCAP DRAIN 0.33µF GND1 GND2 LM74501QDDFQ1 BananaJack BananaJack BAT T_MON 9.1k SGND SGND SGND SGND Figure 2-3. LM74501-Q1EVM Schematic LM74501-Q1EVM User's Guide SNOU179A – MAY 2021 – REVISED SEPTEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 5: Operation

    3.1 LM74501-Q1EVM Performance Capture 3.1.1 LM74501-Q1EVM Startup • A startup pulse from 0 V to 12 V is applied at the input of the LM74501-Q1EVM. • Figure 3-1 shows the input voltage (CH2) rises from 0 V to 12 V and the gate voltage (CH3) comes up after input voltage crosses device PoR threshold.
  • Page 6: Figure 3-2. Startup Reverse Polarity

    Operation www.ti.com 3.1.2 Startup Reverse Polarity (–12 V) • A –12-V source is connected to the VIN input of the LM74501-Q1EVM. • Figure 3-2 shows that the output voltage remains at a constant 0 V in this situation. • This test simulates the event of connecting a 12-V battery in the reverse direction; therefore, protecting the load from negative input voltages.
  • Page 7: Evm Board Assembly Drawings And Layout Guidelines

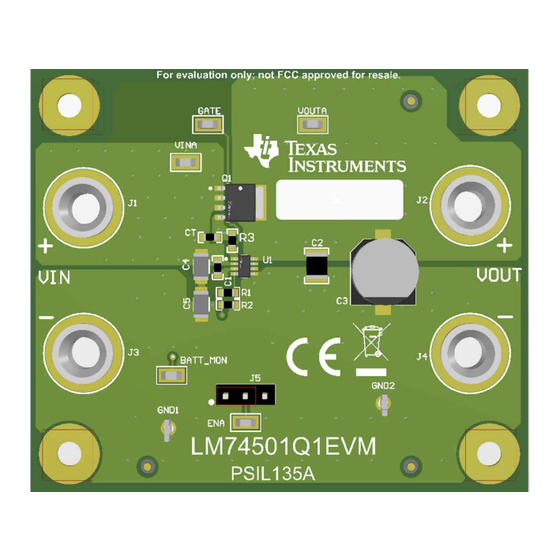

    4.1 PCB Drawings Figure 4-1 through Figure 4-4 show component placement and layout of this EVM. Figure 4-1. LM74501-Q1EVM Top Side Placement Figure 4-2. LM74501-Q1EVM Bottom Side Placement SNOU179A – MAY 2021 – REVISED SEPTEMBER 2021 LM74501-Q1EVM User's Guide Submit Document Feedback...
  • Page 8: Figure 4-3. Lm74501-Q1Evm Top Layer Routing

    EVM Board Assembly Drawings and Layout Guidelines www.ti.com Figure 4-3. LM74501-Q1EVM Top Layer Routing Figure 4-4. LM74501-Q1EVM Bottom Layer Routing LM74501-Q1EVM User's Guide SNOU179A – MAY 2021 – REVISED SEPTEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 9: Bill Of Materials

    Standoff, Hex, Standoff 1902C Keystone 0.5"L #4-40 Nylon J1, J2, J3, J4 Standard Keystone575-8 575-8 Keystone Banana Jack, Uninsulated, 8.9mm SNOU179A – MAY 2021 – REVISED SEPTEMBER 2021 LM74501-Q1EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 10 There is FID5, FID6 nothing to buy or mount. N-Channel TO-252 SQD100N04-3M6_GE3 Vishay 40V 100A (Tc) 136W (Tc) Surface Mount TO-252AA LM74501-Q1EVM User's Guide SNOU179A – MAY 2021 – REVISED SEPTEMBER 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
  • Page 11: Revision History

    Figure 2-2 ............................3 • Updated Figure 2-3 ............................4 • Updated Figure 4-1 through Figure 4-4 ......................• Updated Table 4-1 ............................. SNOU179A – MAY 2021 – REVISED SEPTEMBER 2021 LM74501-Q1EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
