EVM User's Guide: LM65460EVM
LM65460EVM Evaluation Module
Description
The Texas Instruments LM65460EVM evaluation
module (EVM) helps designers evaluate the operation
and performance of the LM654x0-Q1 family of wide
input voltage buck converters. The LM654x0-Q1
family are easy to use, synchronous, step-down
converters capable of supplying up to 4A, 6A, or 8A of
load current from an input voltage as high as 36V.
SNVU942 – MAY 2025
Submit Document Feedback
Features
•
3V to 36V wide input voltage range
•
5V, 3.3V, and adjustable output voltage options
•
Up to 6A output current
•
300kHz to 2.2MHz switching frequency
•
Minimized switch node ringing to reduce
Electromagnetic Interference (EMI)
LM65460EVM
Copyright © 2025 Texas Instruments Incorporated
Description
LM65460EVM Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments LM65460EVM
Summary of Contents for Texas Instruments LM65460EVM
- Page 1 Description EVM User's Guide: LM65460EVM LM65460EVM Evaluation Module Description Features The Texas Instruments LM65460EVM evaluation • 3V to 36V wide input voltage range module (EVM) helps designers evaluate the operation • 5V, 3.3V, and adjustable output voltage options and performance of the LM654x0-Q1 family of wide •...
-
Page 2: Kit Contents
1 Evaluation Module Overview 1.1 Introduction The LM65460EVM is configured to deliver a 5V output to a load requiring 6A or less. The LM65460EVM can be used in many different configurations by substituting other versions of the LM654x0-Q1 and re-configuring the board components. -
Page 3: Power Requirements

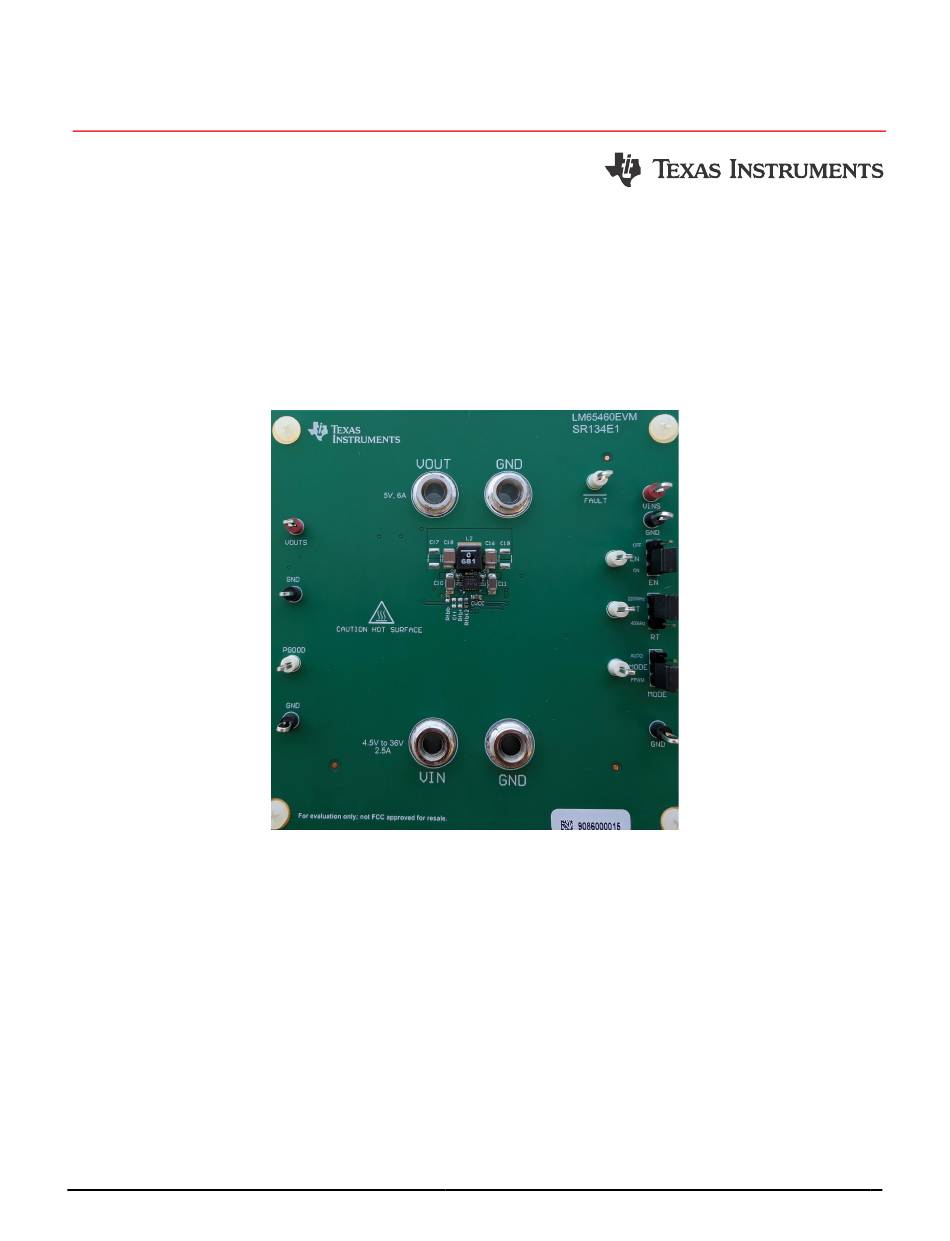

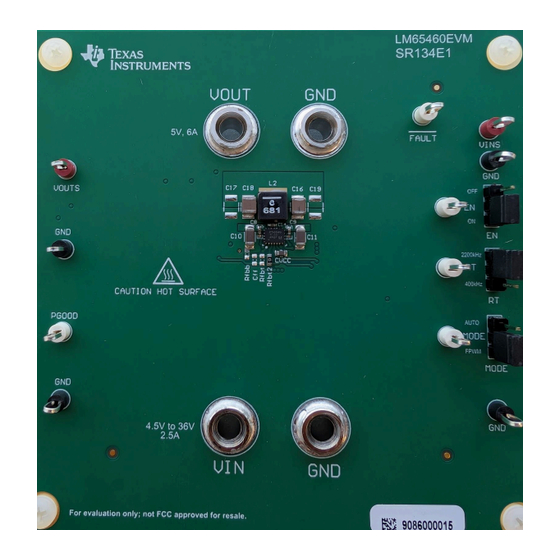

2 Hardware 2.1 Additional Images Figure 2-1 Figure 2-2 show the front and back of the LM65460EVM respectively. Figure 2-1. LM65460EVM Top Side Figure 2-2. LM65460EVM Bottom Side 2.2 Power Requirements Any power source in the range of 6V to 36V, and capable of delivering 3A, can be used to evaluate the LM65460EVM, under normal conditions. -
Page 4: Setup And Operation
2.3 Setup and Operation This section describes the connectors, test points, and jumpers on the EVM and how to properly connect, set up, and use the LM65460EVM See Figure 2-3 for location of connectors and jumpers and typical setup. - Page 5 When using the adjustable output voltage mode, a Bode plot can be taken using the Plot connection shown in Figure 2-4. Rinj must be populated for this test. Load Supply Figure 2-3. LM65460EVM Setup SNVU942 – MAY 2025 LM65460EVM Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 6 Hardware www.ti.com Source T = B/A Frequency Response Analyzer Figure 2-4. LM65460EVM Loop Response Connections LM65460EVM Evaluation Module SNVU942 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 7 Implementation Results 3 Implementation Results 3.1 Evaluation Setup The LM65460EVM was used to take the following data with the setup shown in Figure 2-3. 3.2 Performance Data and Results Unless otherwise specified the following condition apply: T = 25ºC, V = 12V, 2200kHz.
- Page 8 20 ms/div = Short Circuit = 12V = 5V Figure 3-9. Short Circuit = 6A 2200kHz = 12V = 5V LM65460EVM Figure 3-10. Thermal Image LM65460EVM Evaluation Module SNVU942 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 9 R t2 2.2MHz VSNS AUTO PGOOD Renb Rmode 38.3k 15.8k MODE 150k £ ¢ SH-J1 SH-J2 RsnsL 100k 19.1k PGOOD ¡ Figure 4-1. LM65460EVM Schematic SNVU942 – MAY 2025 LM65460EVM Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 10: Pcb Layouts
Hardware Design Files www.ti.com 4.2 PCB Layouts Figure 4-2. PCB Top Layer Figure 4-3. PCB Ground Layer (Directly Below Top Layer) LM65460EVM Evaluation Module SNVU942 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 11 Hardware Design Files Figure 4-4. PCB Signal Layer Figure 4-5. PCB Bottom Layer SNVU942 – MAY 2025 LM65460EVM Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 12: Bill Of Materials (Bom)
RES, 100 k, 1%, 0.1 W, 0603 RC0603FR-07100KL Renb 38.3k RES, 38.3 k, 1%, 0.1 W, 0603 RC0603FR-0738K3L 15.8k RES, 15.8 k, 1%, 0.1 W, 0603 RC0603FR-0715K8L LM65460EVM Evaluation Module SNVU942 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 13 Hardware Design Files Table 4-1. LM65460EVM BOM (continued) Designator Alias Quantity Value Description Part Number Res Thin Film 0805 150K Ohm 0.1% Rmode 150k 1/8W ±25ppm/°C Molded SMD SMD ERA-6AEB154V Punched Carrier T/R Rsnsh 4.99k RES, 4.99 k, 1%, 0.1 W, 0603...
-
Page 14: Additional Information
Additional Information www.ti.com 5 Additional Information 5.1 Trademarks All trademarks are the property of their respective owners. LM65460EVM Evaluation Module SNVU942 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 15 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 16 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 17 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 18 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 20: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
