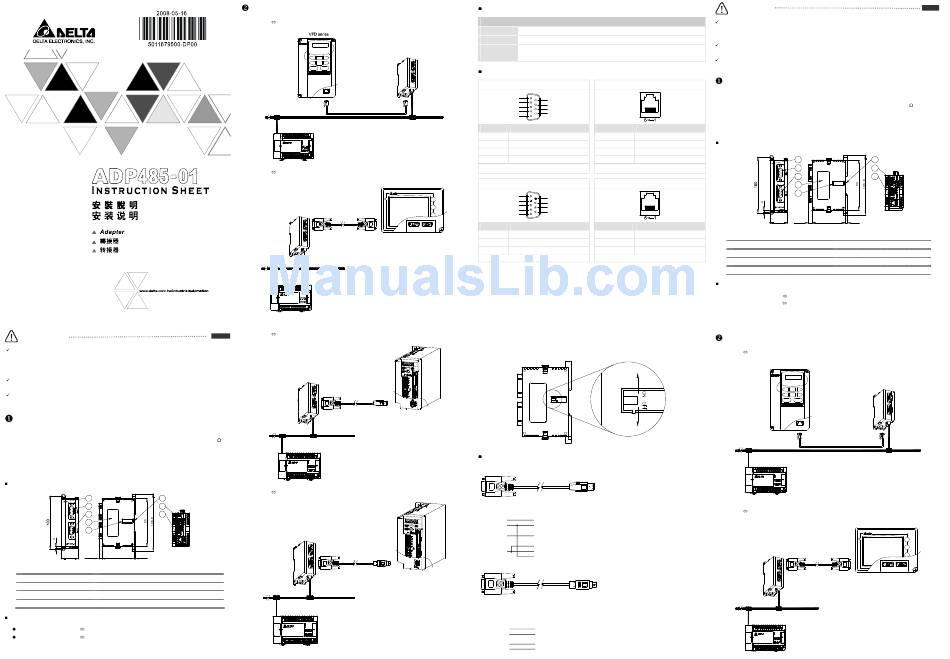

Delta Electronics Network Device ADP485-01 Instruction Manual

Warning
ADP485-01 is an OPEN-TYPE. Please place the module in an enclosure away from airborne dust or high
humidity and prevent electric shock or sudden shock on ADP485-01. Also, it is equipped with protective
method such as some special tool or key to open the enclosure, so as to avoid the hazard to users or any
damage to the module. Do NOT touch terminals when power on.
When many devices are connecting in serial, their Baud rate and communication format setting should be
the same. Also, each device must have individual Unit Address.
I/O terminal screw should be tightened between 1.95kg-cm (1.7 in-lbs). Use copper conductor only,
60/75°C.
Introduction
ADP485-01 is mainly designed to connect Delta product by RS-485 interface. It is equipped with surge
absorber and limited current protection to ensure safe connection of different devices. Also, 120
terminating resistance selection is available. This module enables Delta products to connect one
another by RS-485 interface with much concern of safety and wide application.
ADP485-01 offers four different connectors to enable the network connection for Delta's PLC DVP
series, HMI DOP series, AC Motor Drive VFD series and Servo drive ASD series.
Product Profile
1 6
2 7
3 8
4
5
32 3,4
6 60
Unit: mm
1 5
Mounting plate ON/OFF of terminating resistor (default setting: OFF)
2 COM1 (DB9 female) 6 DIN rail (35mm)
3 7
COM2 (DB9 male) RS-485 port
4 Nameplate 8 RJ12
Optional Connecting Cable
ADPCAB03A: ADP485-01 ASD-A connecting cable/30cm
ADPCAB03B: ADP485-01 ASD-B connecting cable/30cm
RS-485 Network Connection with Delta Products
ADP485-01 VFD (AC Motor Drive)
RJ12
ADP485-01 DOP (HMI)
DB9 male connector DB9 male connector
one by one wiring
connect to COM 1
RS-485 network
ADP485-01 ASD-A (Servo Drive)
ENGLISH
Connecting cable (ADPCAB03A)
RS-485 network
ADP485-01 ASD-B (Servo Drive)
Connecting cable (ADPCAB03B)
RS-485 network
Environmental Specification
Operation 0° C ~ 55° C (temperature), 50 ~ 95% (humidity), pollutant degree 2
Storage -25° C ~ 70° C (temperature), 5 ~ 95% (humidity)
Vibration/Shock International Standard: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC
resistance 68-2-27 (TEST Ea)
COM1, COM2, and RJ12 PIN Explanation
COM1-DB9 female
1
6
2
7
3
8
4
9
RS-485 network
5
PIN Definition
1 RS485-
2 RS485+
3 RS485+
4 RS485-
5, 6, 7, 8, 9: NC
COM2-DB9 male
HMI DOP Series
5
9
F1 4
8
3
7
F2
2
6
1
F3
PIN Definition
COM1 COM2
3, 6 RS485-
8 RS485+
5, 9 GND
1, 2, 4, 7: NC
Use of Terminating Resistance
In all RS-485 installations, the cable must be correctly terminated with two sets of resistors, one set at
each end of the network (4,000 feet maximum total cable length). This applies even if you are only
using one slave node connected to one master device. The terminating resistors prevent reflection
problems that can interfere with data transmission. The resistance value of the terminating resistors
should match the characteristic impedance of the cable. A typical value is 120 ohms. The terminating
resistors must be placed at the two farthest ends of the RS-485 network, regardless of where the
master device is. In some cases master device RS-485 ports have built in or optional terminating
resistors. Beware of your network (whether it has one node or 32 nodes) having only two sets of
terminating resistors.
Cable Connection
ADPCAB03A
DB9 male 1394 male
1
2 2
RS485 - 3 4
4
GND 5 1
6
7 3
8
RS485 + 5
6
9
ADPCAB03B
DB9 male Mini DIN
1
2
3
4
GND
5 8
RS485 - 6 1
7
RS485 +
8 3
9 6
Environment
(Open Type)
/
RJ12-VFD
ADP485-01
PIN Definition
VFD
1 +15V
2 GND
產 品 外 觀
3 SG-
4 SG+
5, 6: Reserved
RJ12-ADP485-01
PIN Definition
3 RS-485+
4 RS-485-
1
5 GND
2 COM1 (DB9
1, 2, 6: NC
3
COM2 (DB9
4
選 購 連 接 線
ADPCAB03A ADP485-01
ADPCAB03B ADP485-01
ADP485-01 VFD
Termination Resistor Switch
ADP485-01 DOP
