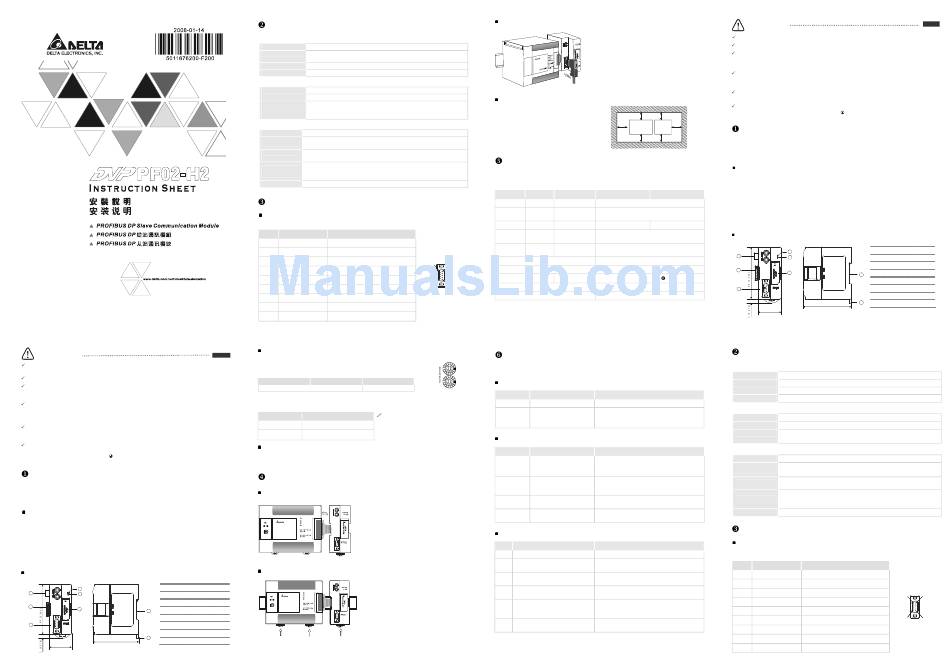

Delta Electronics DVPPF02-H2 Instruction Sheet

Warning
Please read this instruction sheet carefully before use and follow this instruction to operate the device in order
to prevent damages on the device or injuries to staff.
Switch off the power before wiring.
This instruction sheet only provides introductory information on electrical specification, functions, wiring,
trouble-shooing the peripherals for DVPPF02-H2. Details of PROFIBUS DP protocol are not included in this
sheet. For more information on PROFIBUS DP protocol, please refer to relevant reference or literatures.
DVPPF02-H2 is an OPEN-TYPE device and therefore should be installed in an enclosure free of airborne dust,
humidity, electric shock and vibration. The enclosure should prevent non-maintenance staff from operating the
device (e.g. key or specific tools are required to open the enclosure) in case danger and damage on the device
may occur.
DVPPF02-H2 is to be used for controlling the operating machine and equipment. In order not to damage it,
only qualified professional staff familiar with the structure and operation of if can install, operate, wire and
maintain it.
DO NOT connect input AC power supply to any of the I/O terminals; otherwise serious damage may occur.
Check all the wiring again before switching on the power, and DO NOT touch any terminal when the power is
switched on. Make sure the ground terminal is correctly grounded in order to prevent electromagnetic
interference.
Introduction
Thank you for choosing Delta DVPPF02-H2 PROFIBUS DP communication module. DVPPF02-H2 can
be applied to the connection with DVP-EH2 series PLC MPU in a PROFIBUS DP network. DVPPF02-H2
does not need to be connected to an external power supply. The power will be supplied from DVP-EH2
once it is connected to DVP-EH2.
Features
1. Supports loop-type data exchange between DP master and many slaves.
2. Supports GSD files in PROFIBUS DP network configuration tools.
3. Supports 4 slots in PROFIBUS DP network configuration tools.
4. Auto-detects baud rates; supports Max. 12Mbps.
5. The length of I/O data can be freely configured through PROFIBUS DP network configuration tools.
Max. input data length = 100 words (the sum of 4 slots); Max. output data length = 100 words (the
sum of 4 slots).
6. Error code diagnosis.
Product Profile & Outline
1
Extension port
3
X 16
PO WER
2 4
NET 2 Address setup switch
16
X
3
POWER indicator
6
1 4 NET indicator
8
5
PROFIBUS DP connector
5 6 Extension module interface
7 DIN rail clip
7
82 [3.228] 8
DIN rail
40 [1.575]
Unit: mm
Specifications
PROFIBUS DP Connector
Interface DB9 connector
Transmission
High-speed RS-485
method
Transmission cable Shielded twisted pair cable
Electrical isolation 500V DC
Communication
Message type Loop-type data exchange
Equipment ID 0AFE (hex)
Serial transmission
9.6kbps; 19.2kbps; 93.75kbps; 187.5kbps; 500kbps; 1.5Mbps; 3Mbps; 6Mbps;
speed supported
12Mbps (bits per second)
(auto-detection)
Environment
Standards IEC 61131-2,UL508
Storage: -25° C ~ 70° C (temperature), 5 ~ 95% (humidity)
Storage/operation
Operation: 0° C ~ 55° C (temperature), 50 ~ 95% (humidity), pollution degree 2
Shock/vibration International standards: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC
immunity 68-2-27 (TEST Ea)
RS (IEC 61131-2, IEC 61000-4-3): 80MHz ~ 1000MHz, 1.4GHz ~ 2GHz, 10V/m
Interference
EFT (IEC 61131-2, IEC 61000-4-4): Analog & Communication I/O: 1KV
immunity
ESD (IEC 61131-2, IEC 61000-4-2): 8KV Air Discharge
Certificates CE, UL
Components
PROFIBUS DP Connector
To connect to PROFIBUS DP network, use standard DP connector for the wiring.
PIN PIN name Definition
1 - Not defined
2 - Not defined
3 Rxd/Txd-P Sending/receiving data P(B)
4 - Not defined
5 DGND Data reference potential
6 VP Power voltage - positive
7 - Not defined
8 Rxd/Txd-N Sending/receiving data N(A)
9 - Not defined
Address Setup Rotary Switch
ENGLISH
The two rotary address setup switches set up the node addresses on
PROFIBUS DP network in hexadecimal form. Setup range: 0x01 ~ 0x7D (0 or
0x7E ~ 0xFF are forbidden).
1 0
Rotary switch x 16 x 16
Multiple × 16 × 1
Example: If you need to set the node address of DVPPF02-H2 as 26 (1A Hex), simply switch the
1
corresponding rotary switch of x16 to "1" and the corresponding rotary switch of x16
Switch setting Description Note: The changed values on switches are
only valid when DVPPF02-H2 is re-powered.
0x01 ~ 0x7D Valid PROFIBUS DP address
When DVPPF02-H2 is operating, changing
the set value of the address will be regarded
0 or 0x7E ~ 0xFF Invalid PROFIBUS DP address
invalid.
Extension Port
The extension port on DVPPF02-H2 is used for the connection to the next DVPPF02-H2 or extension
modules of DVP-EH2 series PLC MPU.
Basic Operation
Connecting DVPPF02-H2 to DVP-EH2 Series PLC MPU
Switch off DVP-EH2. Open the connection
x16 1
0
x16 port on the right hand side of DVP-EH2 and
PO WER
R UN
connect DVPPF02-H2 to DVP-EH2. Switch
S TO P R UN ER RO R
BAT .L OW
0 1 IN
on DVP-EH2, and DVP-EH2 will supply
O UT
DVP - 2 0E H
power to DVPPF02-H2. There is no need to
connect DVPPF02-H2 to an external power
supply.
Installing DVP-EH2 and DVPPF02-H2 on DIN Rail
1. Use 35mm DIN rail.
1
x16
0
x16
PO WER
RUN 2. Open the DIN rail clips on DVP-EH2 and
STO P R UN ERR OR
BAT.LO W
0 1 IN
DVPPF02-H2. Insert DVP-EH2 and
OUT
DVP-20EH
DVPPF02-H2 on the DIN rail.
3. Clip up the DIN rail clips on DVP-EH2
and DVPPF02-H2 to fix DVP-EH2 and
DVPPF02-H2 on the DIN rail.
Connecting to PROFIBUS DP Connector
Installation & Wiring
1. Install DVPPF02-H2 in an enclosure with sufficient
space around it to allow heat dissipation (see the
figure).
2. DO NOT place the I/O signal wires and power
supply wire in the same wiring circuit.
Control Register
The control registers (CR) are the registers inside DVPPF02-H2. See the table below for the definitions of
all the CRs. DVP-EH2 series PLC MPU can read or write the CR allowed through DFROM/DTO
instructions.
CR# Attribute Content
#0 Read Model name DVPPF02-H2 model code = H
Displaying the current firmware version in hex, e.g.
#1 Read Firmware version
V1.00 is indicated as H'0100.
#2 Read Length of I/O data Length of output I/O data Length of input I/O data
Area for storing data from DVPPF02-H2 to
#3 ~ #102 Write/read Input data mapping
PROFIBUS DP master
Output data Area for storing data from PROFIBUS DP master to
#103 ~ #202 Read
mapping DVPPF02-H2.
#203 ~ #206 Set up by the system. DO NOT use it.
9 5
#207 ~ #250 Reserved
#251 Read Error Register for storing errors. See
6 1
#252 ~ #383 Reserved
#384 ~ #511 Set up by the system. DO NOT use it.
LED Indicators & Trouble-Shooting
There are 2 LED indicators on DVPPF02-H2. POWER indicator displays the status of the working power.
1
x1 6
NET indicator displays the connection status of the communication.
0
x1 6 POWER LED
LED status Indication
Green light on The power is normal. --
0
to"A".
1. Check if the power of DVP-EH2 is normal.
Off No power
2. Check if the connection between DVPPF02-H2
and DVP-EH2 is normal.
NET LED
LED status Indication
1. Check if the power of DVP-EH2 is normal
Off No power
2. Check if the connection between DVPPF02-H2
and DVP-EH2 is normal
DVPPF02 is operating but is
Check if DVPPF02-H2 is normally connected to
Red light on not connected to PROFIBUS
PROFIBUS DP bus.
DP bus.
Red light Depending on the value in
See the error code table for how to deal with it.
flashes CR#251
DVPPF02-H2 is in data
Green light on --
exchange status.
Error Codes
Code Description
00 DVPPF02-H2 operates normally. --
Send your DVPPF02-H2 back to the factory for
01 Hardware error
repair.
Check if DVPPF02-H2 is normally connected to
02 PROFIBUS DP watch dog error
PROFIBUS DP bus.
Address setup error (0, or exceeding Set the address within the range 0x01 ~ 0x7D and
03
0x01 ~ 0x7D) re-power DVP-EH2.
Check if the power voltage of DVP-EH2 is normal;
04 24V low voltage error check if DVPPF02-H2 is normally connected to
DVP-EH2.
Send your DVPPF02-H2 back to the factory for
05 5V low voltage error
repair.
