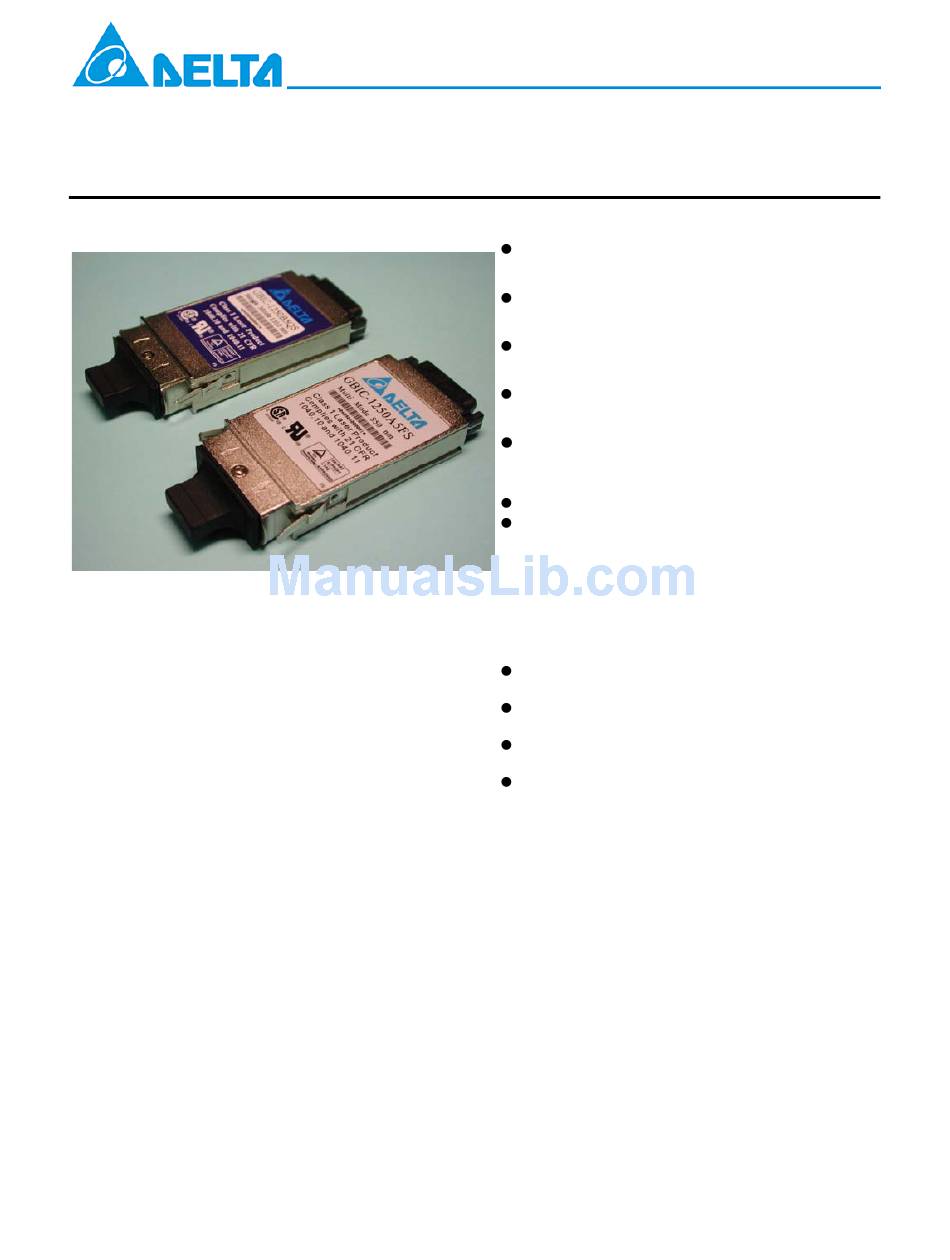

RoHS Compliant 1250Mbps
Transceiver Module for Gigabit Ethernet
Description
The GBIC-1250A5FR is compliant with GBIC interface
converters specification Rev. 5.4. as well as Gigabit
Ethernet standard as specified in IEEE 802.3.
Delta's GBIC transceiver family uses a 20-pin connector
to allow hot plug capability. The system designer can
make configuration changes or maintenance simply by
plugging in different type of converters without removing
the power supply from the host system.
DELTA ELECTRONICS, INC.
Gigabit Interface Converters (GBIC)
Features
Compliant with Gigabit Interface
Converter (GBIC) Revision 5.4
Compliant with proposed specifications
for IEEE 802.3z/Gigabit Ethernet.
Dual 5V and 3.3V Power Supply
Operation
TTL Logic TX_DISABLE / TX_FAULT /
RX_LOS functions
Class 1 Laser Product Compliant with
the Requirements of IEC 60825-1 and
IEC 60825-2
Hot-Pluggable
RoHS Compliant per Directive
2002/95/EEC
Applications
1.25 Gigabit Ethernet
Fiber Channel
Switch to Switch Interface
File server interface
Performance
GBIC-1250A5FR:
850nm VCSEL, up to 550m in 50/125um OM2
MMF
1
GBIC-1250A5FR
GBIC-1250A5FR
2008/1/23
Rev. 0A
www.deltaww.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta Electronics GBIC-1250A5FR
Summary of Contents for Delta Electronics GBIC-1250A5FR
- Page 1 RoHS Compliant 1250Mbps Transceiver Module for Gigabit Ethernet Description The GBIC-1250A5FR is compliant with GBIC interface converters specification Rev. 5.4. as well as Gigabit Ethernet standard as specified in IEEE 802.3. Delta’s GBIC transceiver family uses a 20-pin connector to allow hot plug capability. The system designer can...
-
Page 2: Absolute Maximum Ratings
1. Internally AC coupled and terminated to 150Ohm differential load. 2. Pull up to V on host Board 3. Internally AC coupled, but requires a 150Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values. DELTA ELECTRONICS, INC. Symbol Min. Typ. Max. Symbol Min. -
Page 3: Optical Characteristics
Signal Detect- Deassert Signal detect- Hysteresis Note: 1. These are 20%~80% values. 2. The sensitivity is provided at a BER of 1×10 -1 PRBS and ER=9dB. DELTA ELECTRONICS, INC. =4.75V to 5.25V, Data Rate=1250Mb/sec, PRBS=2 Symbol Min. Typ. -9.5 λ... -
Page 4: Pin Out Table
GBIC module definition and presence, bit 1,4.7 K to 10 K Ohm MOD_DEF(1) pullup to VDDT on host GBIC module definition and presence, bit 2,4.7 K to 10 K Ohm MOD_DEF(2) pullup to VDDT on host DELTA ELECTRONICS, INC. Sequence Sequence Pin# Name/Function GBIC-1250A5FR... - Page 5 GBIC-1250A5FR Recommend Circuit Schematic 2008/1/23 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
- Page 6 TX_DISABLE time to t_rest start reset RX_LOS assert delay t_loss_on RX_LOS negate delay t_loss_off DELTA ELECTRONICS, INC. MOD_DEF(2) Interpretation by host Reference Pin 6 GBIC not present clause Copper Style 1 or Style 2 connector, 1.0625 Gbd, 100-TW-EL-S or 100-TP-EL-S, active TTL LOW inter-enclosure connection and IEEE802.3...
- Page 7 GBIC-1250A5FR GBIC timing parameters: 2008/1/23 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
- Page 8 GBIC-1250A5FR EEPROM Serial ID Memory Contents (2-Wire Address A0h) Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Notes: Byte 63 (CS1): Check sum of bytes 0-62. Byte 68-83 (SN): Serial number.
- Page 9 GBIC-1250A5FR Package Outline Drawing GBIC-1250A5FR 2008/1/23 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
-
Page 10: Regulatory Compliance
IEC 801.2 Duplex SC Receptacle (#4) Electrostatic Discharge to MIL-STD-883C the Electrical Pins Method 3015.4 EIAJ#1988.3.2B Version 2, Machine model DELTA ELECTRONICS, INC. Reference Qty’ (1) Satisfied with electrical characteristics of product spec. (2) No physical damage GBIC-1250A5FR Evaluation 2008/1/23 Rev. -
Page 11: Available Products
X2: Power Supply Voltage 5: 3.3 and 5V Available Products GBIC-1250A5FR: Dual supply voltage (3.3/5V), 850nm VCSEL, 50um MMF 500m. GBIC-1250B5QR: Dual supply voltage (3.3/5V), 1310nm MQW FP LD, SMF 10km. GBIC-1250B5LR: Dual supply voltage (3.3/5V), 1310nm DFB-LD, SMF 25km.
