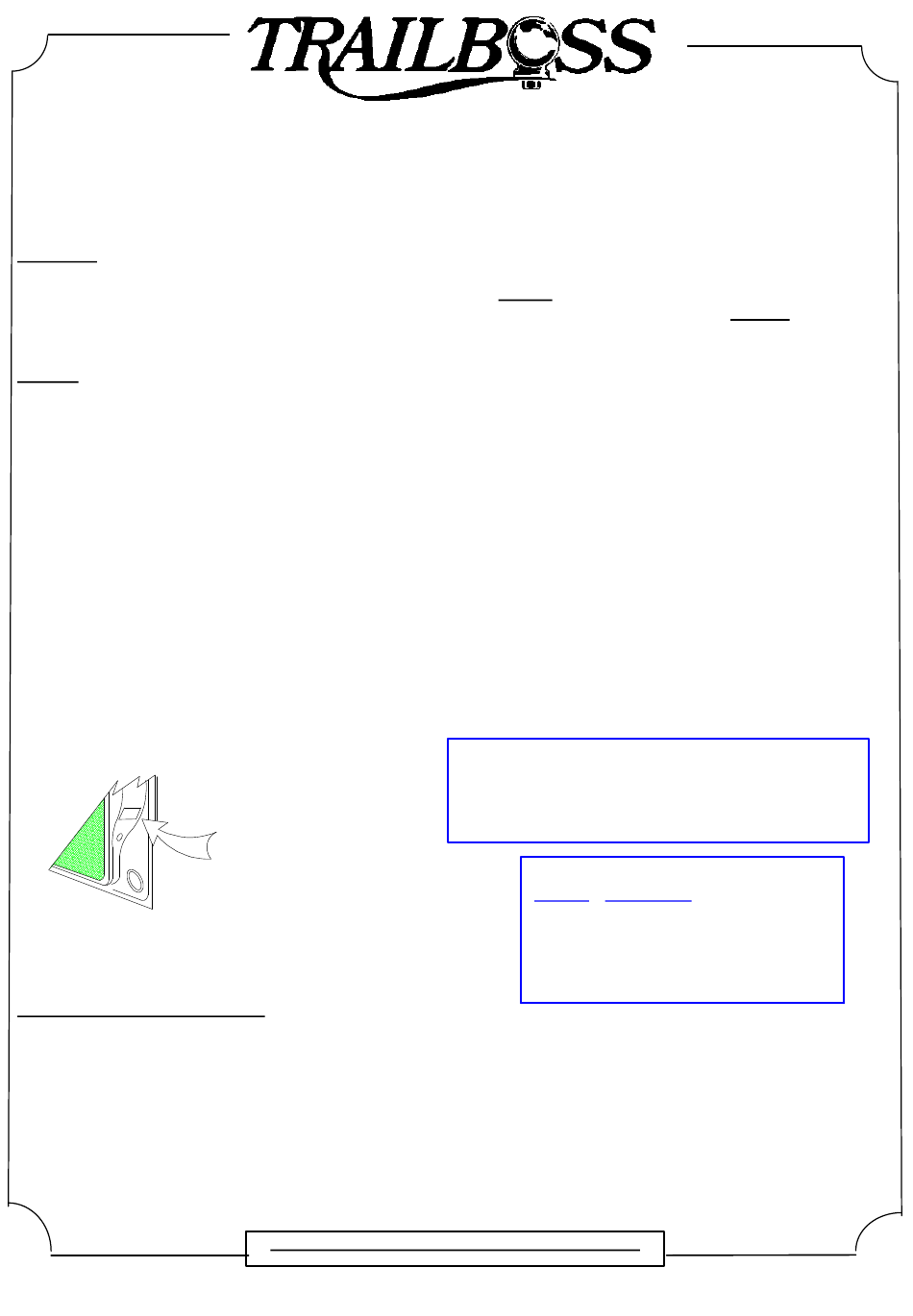

Trailboss QT862 Fitting Instructions

To Suit Toyota Land Cruiser 70 Series Gxl 4 Door Wagon & Workmate 03-07-on
WARNING:
1. Do not, drill, cut, weld or otherwise modify the tow bar.
2. If you are using electric welding on a motor vehicle, always check that the vehicle is not equipped with
electronic engine or instrument management equipment.
computers. If in doubt, check with the vehicle's manufacturer.
General:
1. Ensure all hardware items have been included
2. It is recommended that the instructions are read through and completely understood before making any attempt
to fit this product.
3. Be wary of any changes to vehicle designs or other accessories that may conflict with the installation of this
product.
4. Before drilling ensure that the area is clear of fuel, electrical & other components.
5. All holes drilled into the body panels shall have all burrs & swarf removed then coated with a suitable rust
preventative paint.
6. The high tensile fasteners supplied with this product were used to achieve the specified rating. If replacement is
required ensure that fasteners of the same rating & quality are used. Contact an authorized Trailboss dealer if
further information is required.
7. Ensure that all hardware is fastened to torque list below check fasteners on regular basis.
8. Tow bar load rating sticker provided with this product shall be conspicuously located on inside rear end of the
driver's door. (See diagram below).
9. Trailboss recommends that you check your tow ball to ensure that it complies with the Australian standards AS
4177.2.
10. PLEASE NOTE: It is advised to remove your lug or tbm when not actually towing so as to produce a clear view
of the vehicles registration plate if obscured, and to also provide maximum available departure angle
Tow bar Maintenance and Care.
Trailboss recommends that bolt torque's, as listed below, are routinely and regularly inspected and checked for correct
tension. Replace any worn or defective parts.
We recommended to remove Tow Ball Mounts (TBM's, tongues or lugs) when not being used for any considerable length
of time.
So as to avoid injury, when not towing it is suggested that the tongue, Pull Pin and R-clip are removed then stored in a
safe, clean and dry place, away from excessive moisture.
Hitch Pull Pins and spring "R" clips are regularly checked for proper installation. Replace any worn or defective parts.
Page
1 of 4
Tow bar Fitting Instructions
Part Number QT862
Rating 3500 kg Max Static Ball Load 350Kg
Place load rating sticker
inside driver's door here
THE WORKHORSE OF AUSTRALIA'S TOWBARS
Failure to do so could destroy any onboard
FOR TOWING PURPOSES ONLY
For towing capacity details please refer to vehicle owner's
manual or to the manufacturer. Overloading can void your
warranties.
RECOMMENDED ASSEMBLY TORQUE LISTING
Diameter Grade 8.8 Bolt
M6
M8
M10
M12
M16
9.5 Nm
21.7 Nm
43.4 Nm
77.3 Nm
189.8 Nm
Issue Date 19-06-07
